CC-1 Installation Guide
English 13

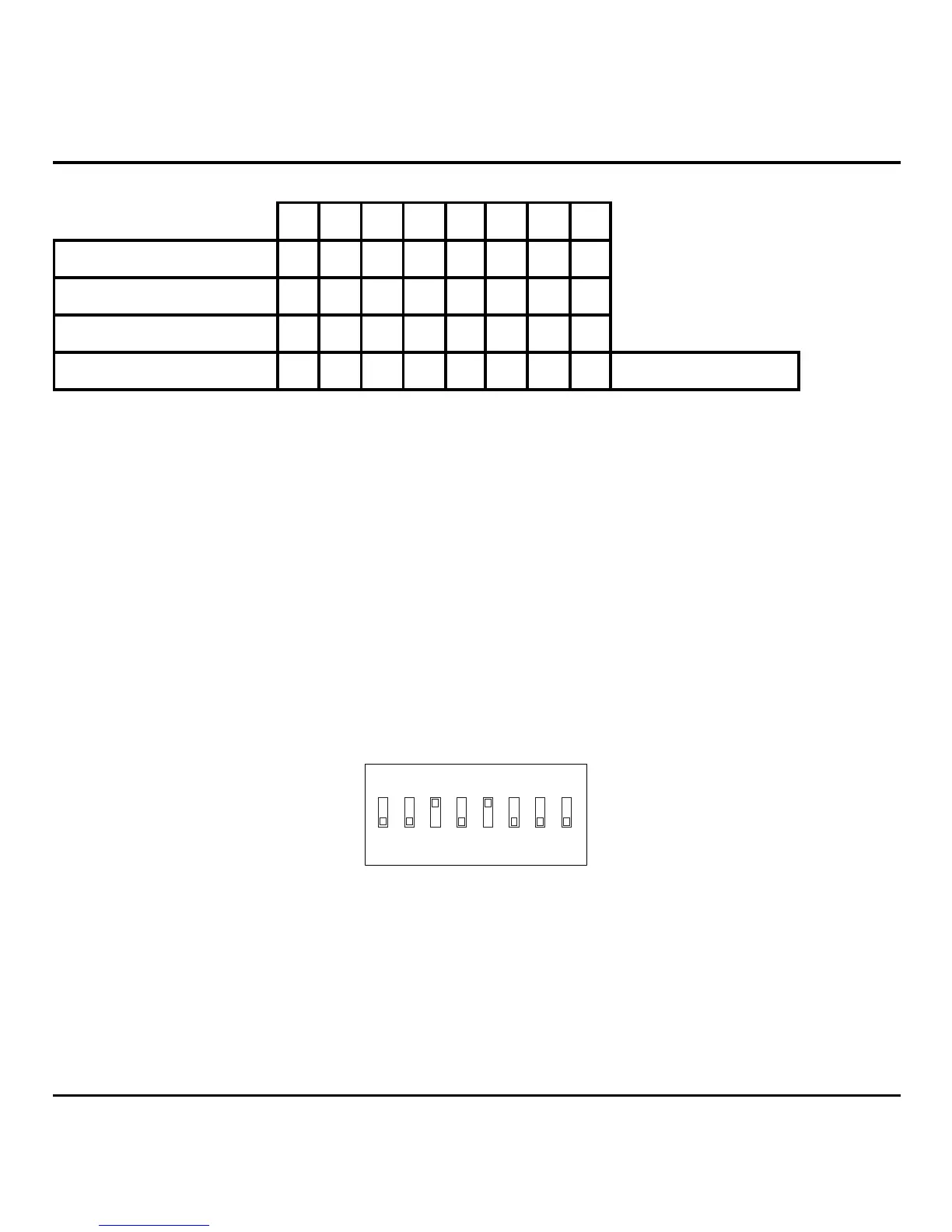

Configure the CC-1 zone controller using the following DIP switch settings:
1 2 3 4 5 6 7 8
FreeSpace IZA/ZA 0 0 1 0 1 0 0 0
FreeSpace DXA 2120 0 0 1 0 1 0 0 0
PowerShare* 0 0 1 0 * * * *
ControlSpace** 0 0 1 0 ** ** ** ** CSD GPI Mode: A-
* For the PowerShare PS602, PS404A, and PS604A amplifiers, the CC-1 controls any outputs with corresponding DIP
switches in the ON position:
DIP 5 - OUTPUT 1
DIP 6 - OUTPUT 2
DIP 7 - OUTPUT 3 (PS404A and PS604A only)
DIP 8 - OUTPUT 4 (PS404A and PS604A only)
** For the DSPs, the DIP switch configuration determines the CC-1 ID:
DIP 5 - ID 1
DIP 6 - ID 2
DIP 7 - ID 3
DIP 8 - ID 4
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #1
FreeSpace IZA/ZA/DXA 2120,
PowerShare Amplifiers,
and ControlSpace Processors
