Connecting the CC-3 Zone Controller

Connect one CC-3 zone controller to any ControlSpace® processor. Use GPI mode A+ in CSD.

Any ESPRJ-45

on CC-3

pro.Bose.com

CC-3 Installation Guide

English 25

B C

A D

Any ControlSpace Processor

152 m (500 ft) max length CAT 5 shielded cable

30 m (100 ft) max length unshielded CAT 5 cable

Terminated with RJ-45 (TIA/EIA 568 pinout) on one end

and 6-pin phoenix on the other end

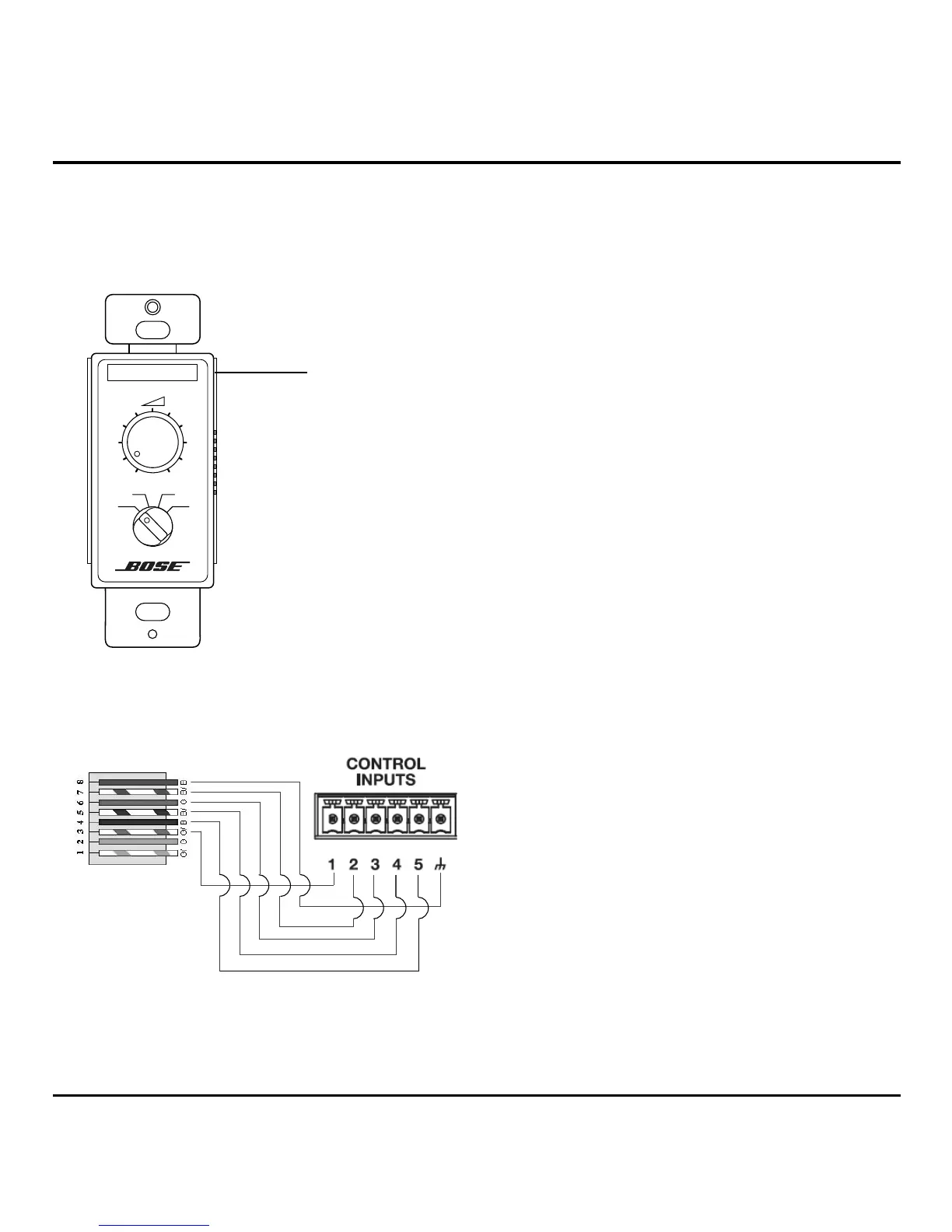

Pin-to-Remote Connection Diagrams
