Bose controlcenter CC-1 - Connecting Multiple CC-1 Controllers via CV41

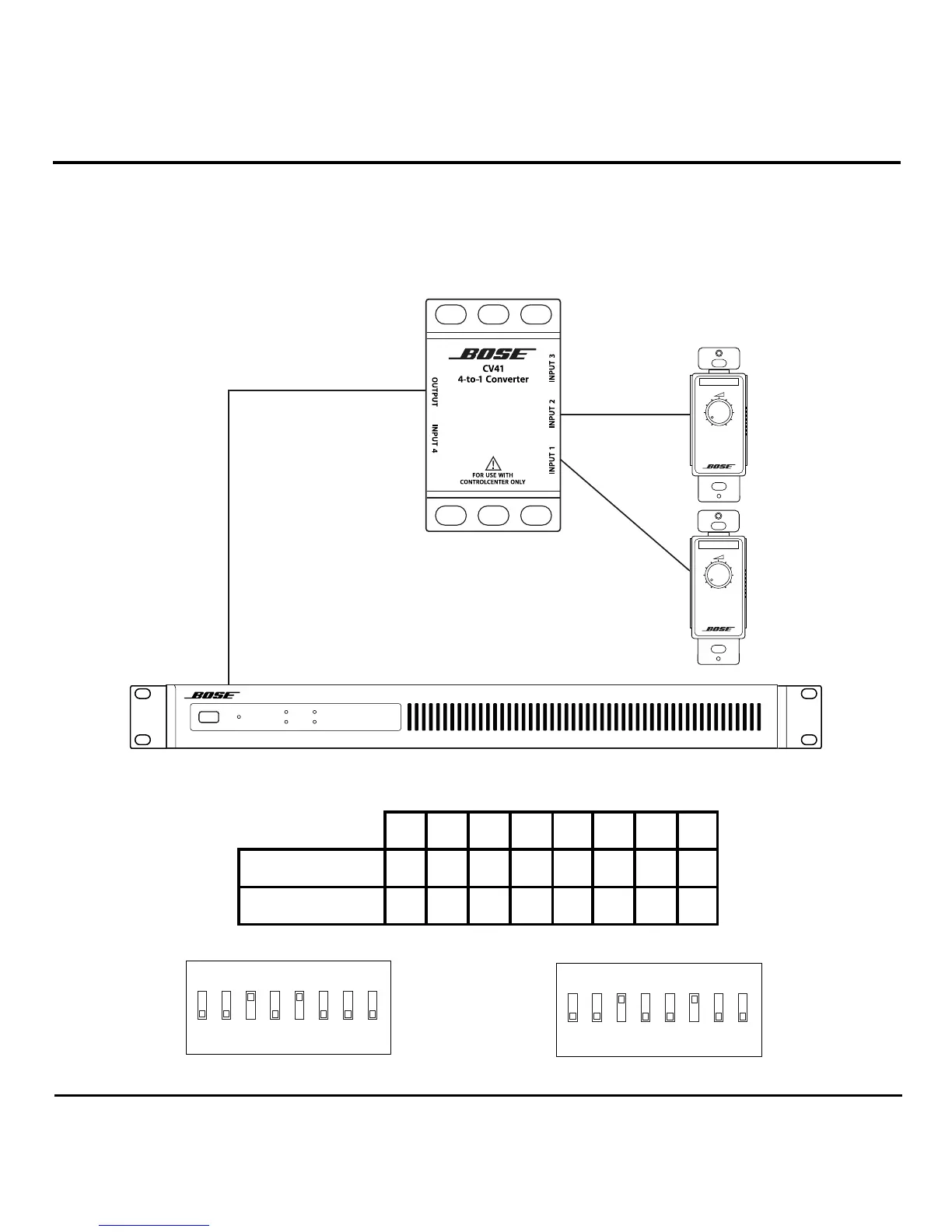

Connect multiple CC-1 zone controllers to PowerShare amplifier models PS602, PS404A, or
PS604A using the CV41 4-to-1 converter. Connect up to two CC-1 zone controllers to the PS602
amplifier or up to four CC-1 zone controllers to the PS404A and PS604A amplifiers, or any
ControlSpace processor.
CAT 5 cable
609 m (2000 ft) max
CAT 5 cable
7.6 m (25 ft) max
Adaptable Power Amplier
LIMIT
SIGNAL
12
PowerShare
PS602
POWER
pro.Bose.com
CC-1 Installation Guide
English 17
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #2
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #1
DIPON
1 2 3 4 5 6 7 8
CC-1 Zone Controller #2
Configure the CC-1 zone controllers using the following DIP switch settings:
1 2 3 4 5 6 7 8
Controller #1 0 0 1 0 1 0 0 0
Controller #2 0 0 1 0 0 1 0 0
