Bose ControlSpace SP-24 Service Manual

15

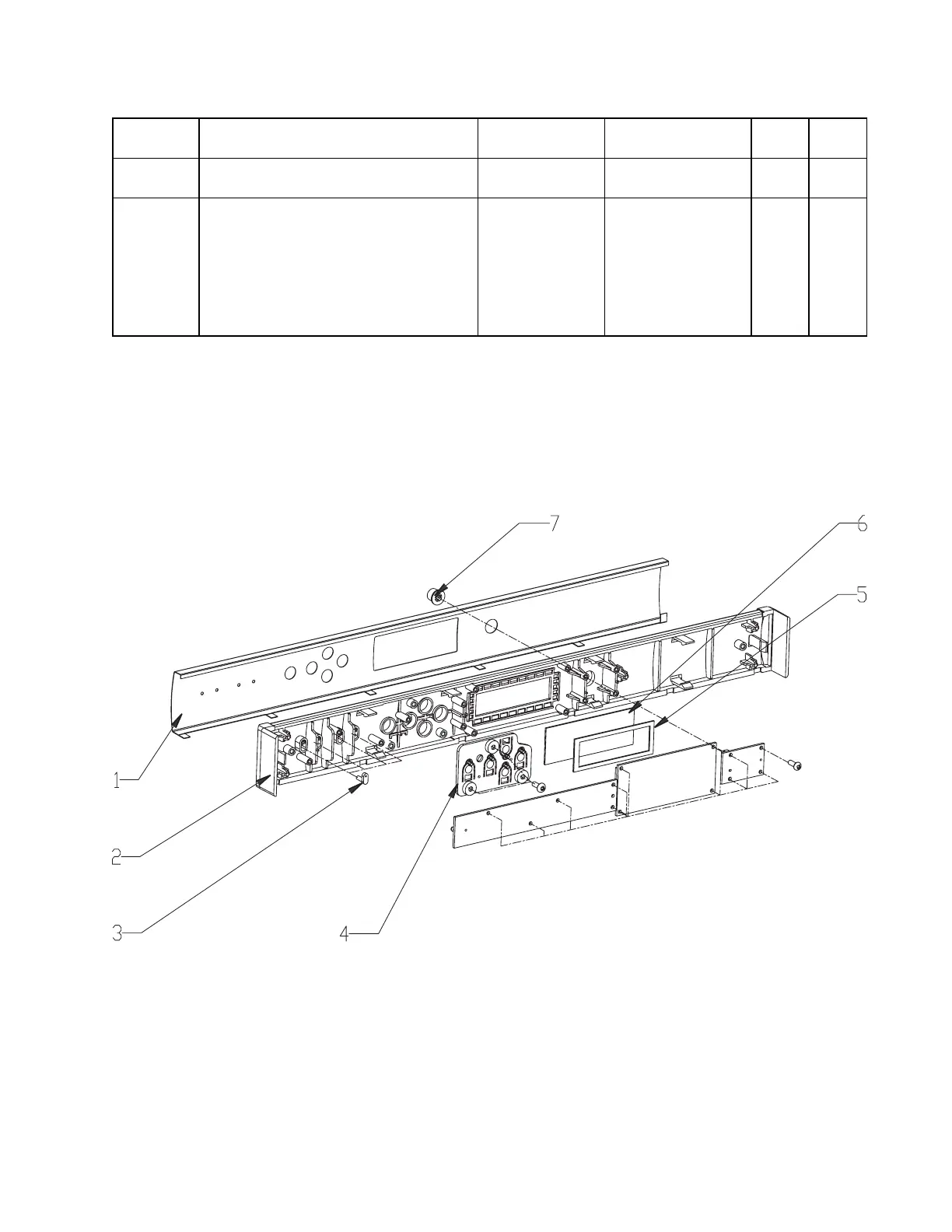

Figure 3. Front Panel Sub-assembly Exploded View
MAIN PART LIST
Front Panel Sub-assembly (see Figure 3)
Item
Number
Description Bose
®
Part
Number
V
endor Part
Number
Qty. Note
- FRONT PANEL SUBASSEMBLY
CONSISTS OF:
354125-001S SVC-
BASIC14+FPSP
1
1 COVER, FRONT, ALUMINUM 353809-0010 1405-9901+0 1 4
2 PANEL, FRONT - 1467-6801+0 1 4
3 LED LIGHT PIPE 353810-0010 4155-1861+0 4 4
4 ARROW AND LOAD BUTTONS 298518 2447-3201+0 1 4
5 SPONGE FRAME, LCD - 4149-0991+0 1 4
6 LENS, LCD - 3717-3006+0 1 4
7 BUTTON, POWER - 2447-3502+0 1 4
