Bose EdgeMax EM90 Service Manual

Packaging Parts List
Em90 and Em180 Loudspeaker
5

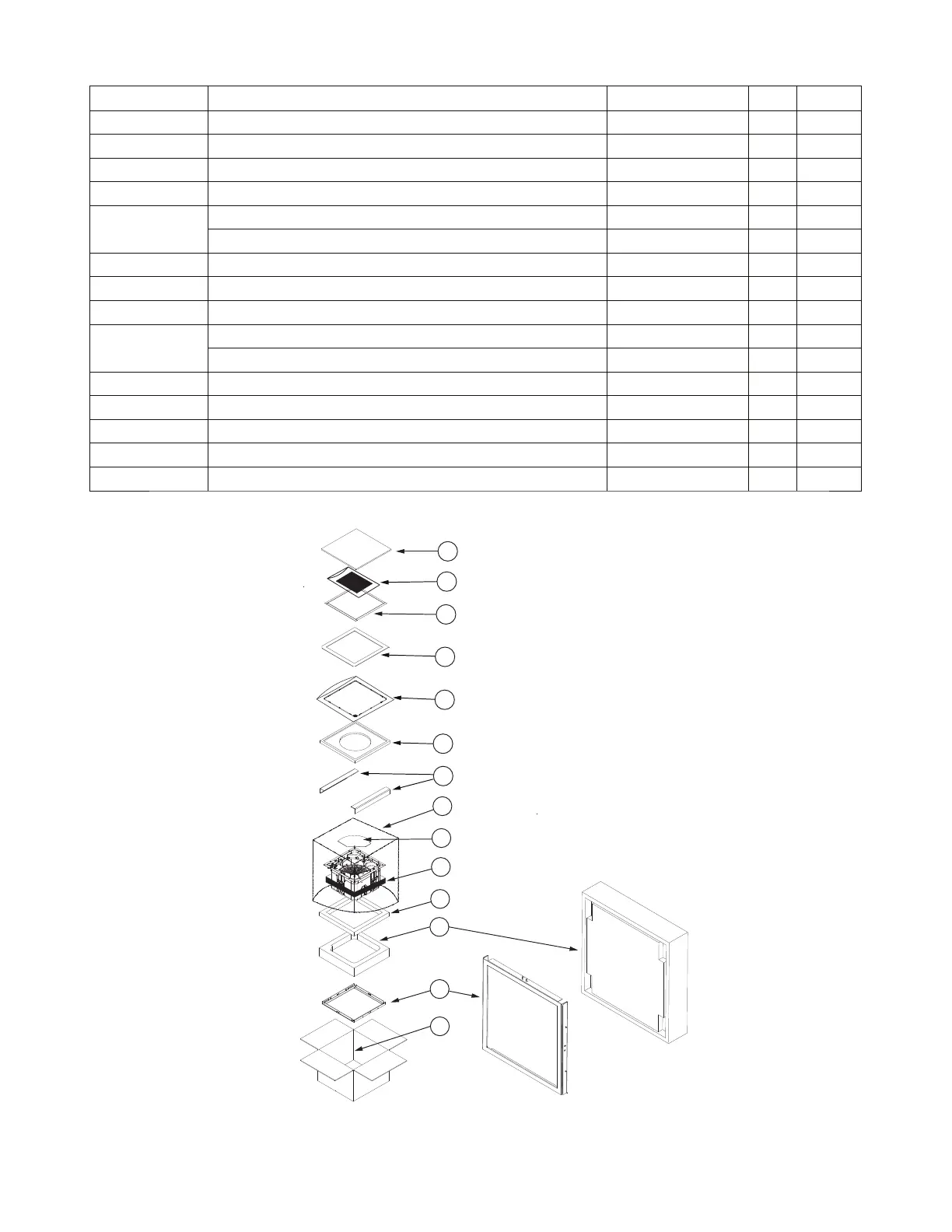

Figure 1 Packaging View
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Item Number Description Part Number Qty. Note
1 CUSHION, EPE, PG90/180 CARTON 799319-001S 1
2 GUIDE, INSTALL, EM90/EM180LDSPKR 792495-0010 1
3 SHIELD, PAINT, SVCE 788635-001S 1
4 TEMPLATE, CUT-OUT, CRDBRD, B FLUTE, SVCE 789385-001S 1
5 KIT, GRILLE, WHITE, SVCE 788330-021S 1
KIT, GRILLE, ARTIC WHITE, SVCE 788330-022S 1
6 END CAP, PACKAGING, TOP 797588-001S 1
7 CORNER PAD, PG90/180 CARTON 799318-001S 2
8 POLYBAG, 700.0MM X 700.0 LDPE, SVCE 789377-001S 1
9 PROTECTOR, PHASE GUIDE, 90 DEG, SVCE 785479-001S 1
PROTECTOR, PHASE GUIDE, 180 DEG, SVCE 784457-001S 1
10 TAPE, EPE, FILM, PG90/180 CARTON 799320-001S 1
11 SUPPORT, CORRUGATED, PG90/180 CARTON 799317-001S 1
12 ENDCAP, PACKAGING, BOTTOM 797589-001S 1
13 ASSY, TILE BRIDGE, SVCE 787922-001S 1
14 CARTON, PG90/180, SVCE 789368-001S 1

Bose EdgeMax EM90 Specifications

General

Product color	White
Recommended usage	-
Woofer	Yes
Number of drivers	1
Speaker placement	In-wall/in-ceiling
Audio output channels	- channels
Woofer diameter (imperial)	8 \
Impedance	8 Ω
Sensitivity	96 dB
Frequency range	45 - 20000 Hz
RMS rated power	125 W
Peak Music Power Output (PMPO)	500 W
Connectivity technology	Wired
Speaker width	339 mm
Speaker height	249 mm

Weight and Dimensions

Width	390 mm
Height	13 mm
Weight	10100 g
