Bose EdgeMax EM90 Service Manual

9
Disassembly Procedure
1. Grille Removal
1.2 Remove the magnetically mounted grille
from the Edgemax assembly by lifting on the
edges. Figure 6.
Note: A lanyard is attached to the grille and
a brush clip is attached at the opposite end.
Removal of the brush clip will be necessary
to place the grille off to the side, as shown in
fi gure 6. A green arrow in fi gure 7 indicates
where the brush clip is seated.
1.3 There are 8 non replaceable magnets on
the outer edge of the baffl e to secure the grille
as indicated by the red arrows in fi gure 7.
2. Baffl e Disassembly
2.1 Perform procedure 1.
2.2 Remove the eight screws indicated by the
red arrows as shown in fi gure 8.

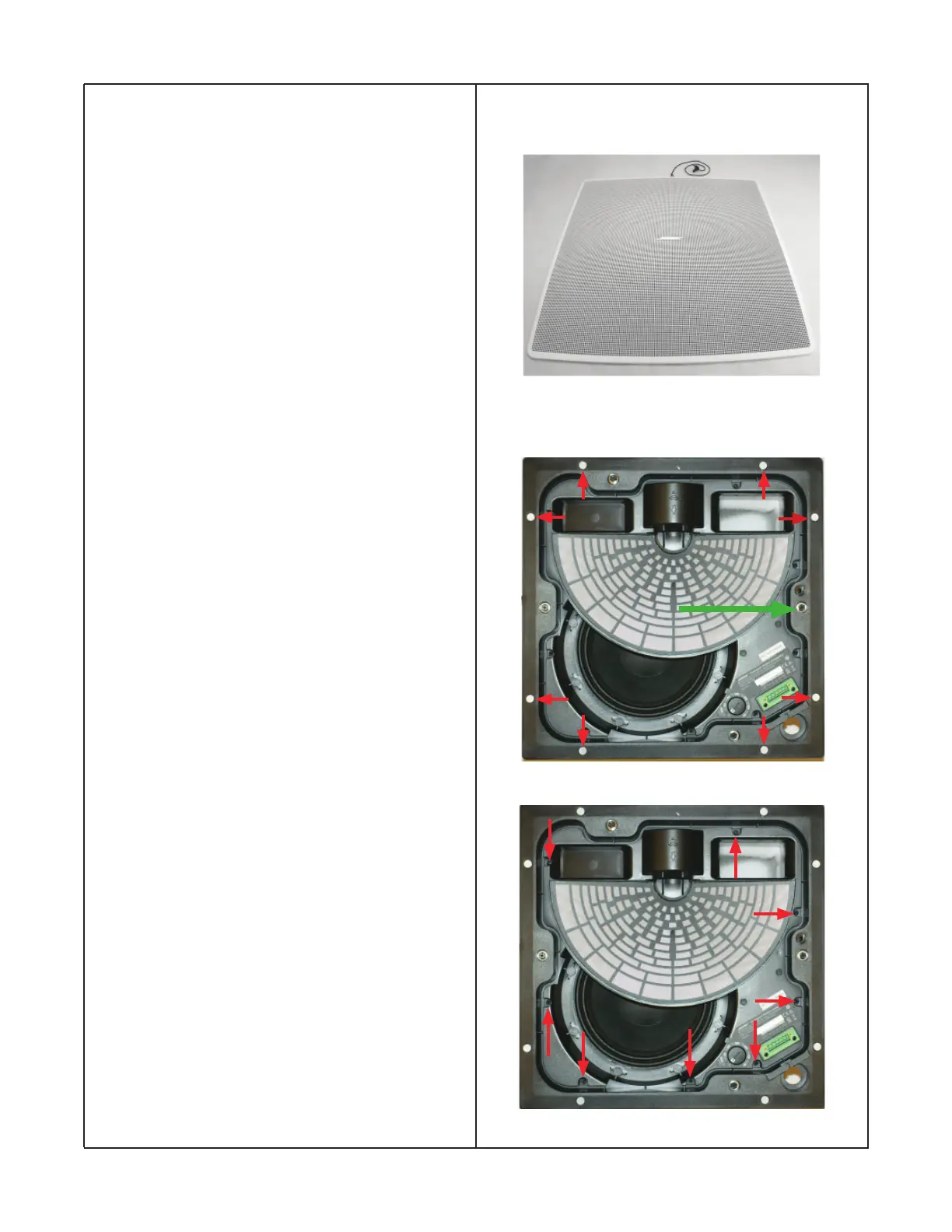

Figure 6
Figure 7
Figure 8
