Bose EdgeMax EM90 Service Manual

16
Enclosure and Baffl e Gasket
Figure 34
Figure 35
Figure 33

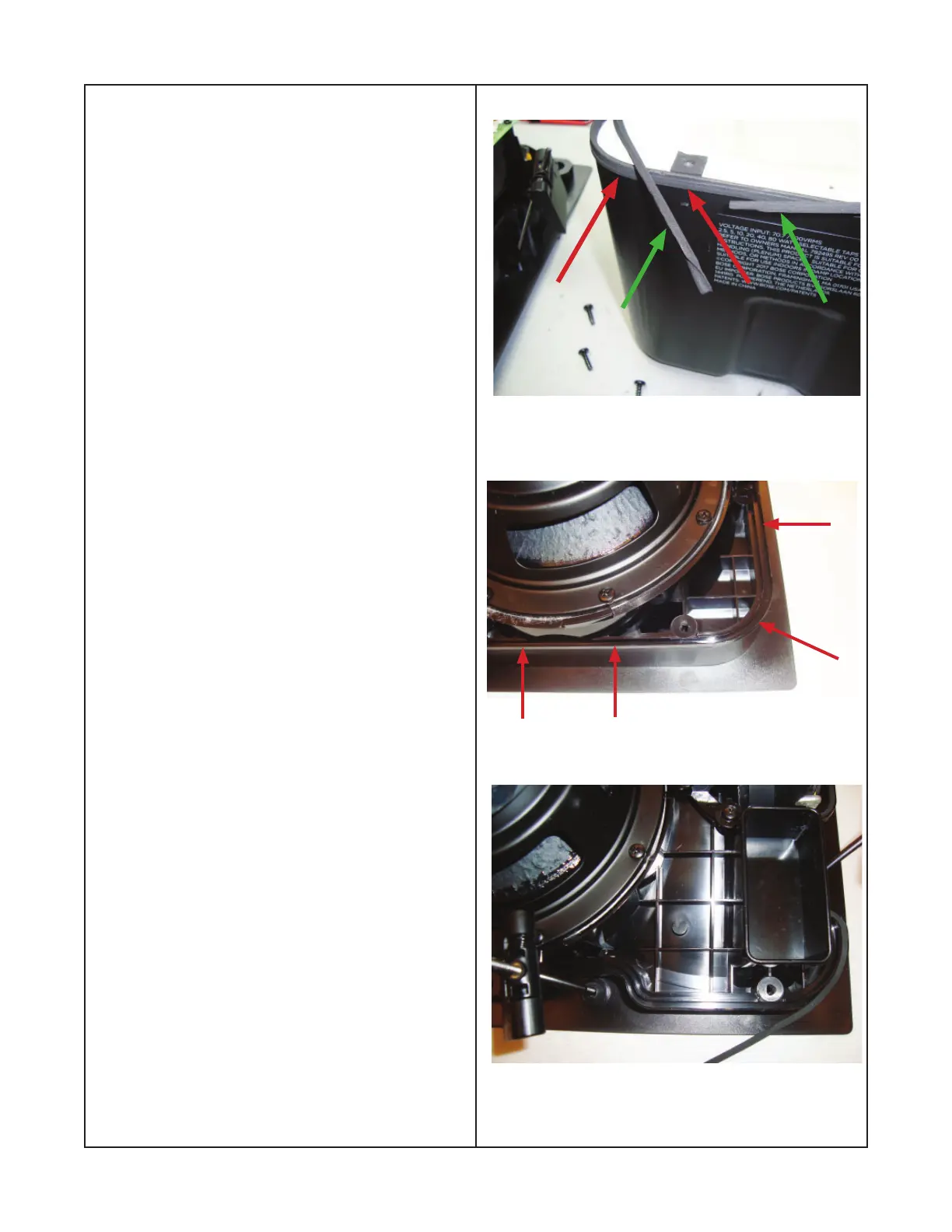

8. Enclosure Gasket
8.1 The enclosure and the baffl e have
gaskets to prevent air leaks. The enclosure
gasket is glued as indicated by red arrows
in fi gure 33.
The green arrows indicate the non glued
baffl e gasket. The baffl e gasket may
become dislodged during disassembly.
9. Baffl e Gasket
9.1 The baffl e gasket is placed inside the
channel, located on the outside perimeter
of the baffl e, as indicated by red arrows
shown in fi gure 34.
9.2 If the baffl e gasket is damaged during
disassembly, it is a service part and can be
replaced as shown in fi gure 35.
Note: Make sure that when reinserting the
baffl e gasket, that each end of the gasket
is contacting, ensuring that no air leaks will
occur.

Bose EdgeMax EM90 Specifications

General

Product color	White
Recommended usage	-
Woofer	Yes
Number of drivers	1
Speaker placement	In-wall/in-ceiling
Audio output channels	- channels
Woofer diameter (imperial)	8 \
Impedance	8 Ω
Sensitivity	96 dB
Frequency range	45 - 20000 Hz
RMS rated power	125 W
Peak Music Power Output (PMPO)	500 W
Connectivity technology	Wired
Speaker width	339 mm
Speaker height	249 mm

Weight and Dimensions

Width	390 mm
Height	13 mm
Weight	10100 g
