5. Analog Audio Connections
The ESP processor includes balanced dual-channel (6-terminal) Phoenix Contact
®
audio connectors. To help with ease of installation,
the termination end of each connector includes printed terminal block descriptions. The following diagram shows recommended
balanced/unbalanced wiring between the processor audio connectors and common audio plugs used to connect the ESP processor to
external audio components.

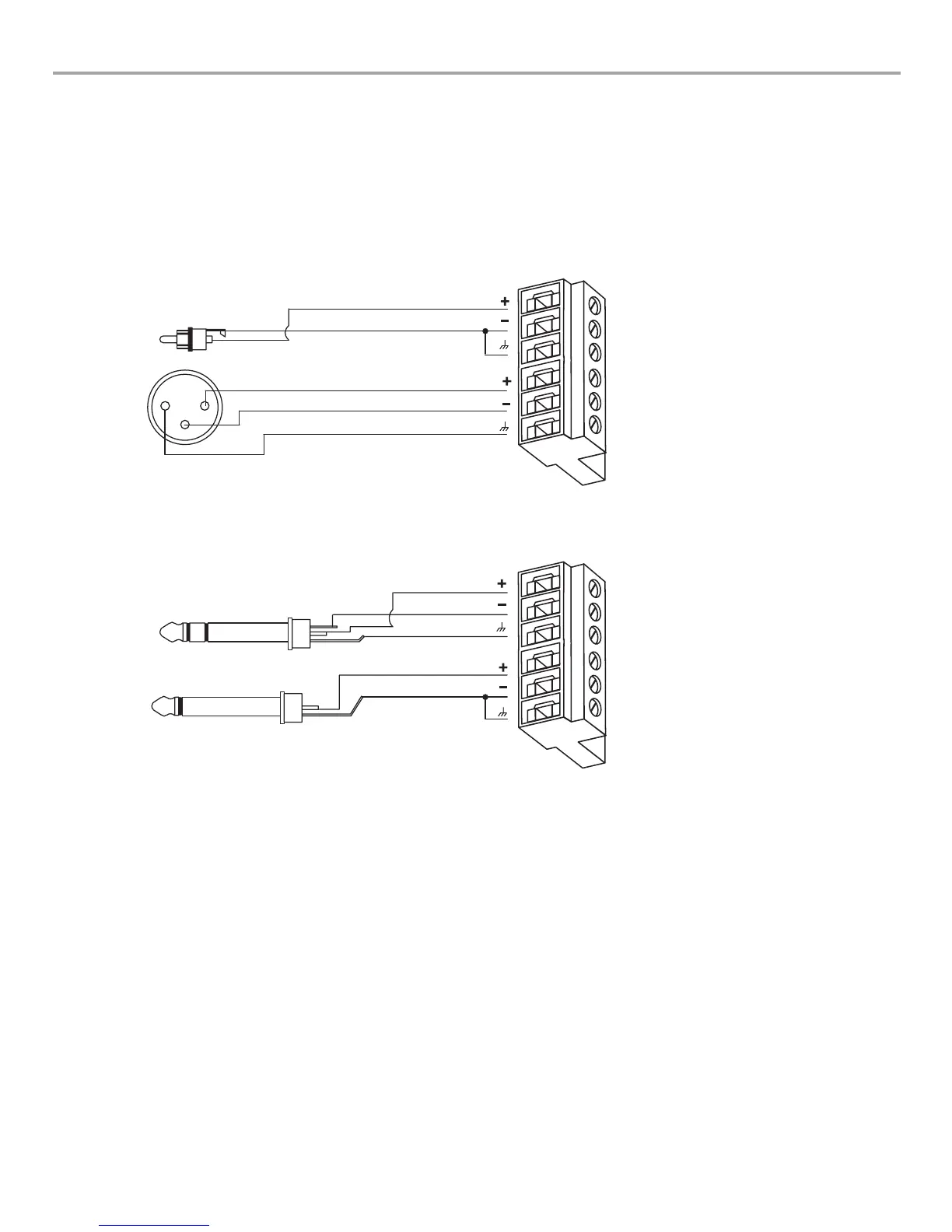

Figure 6. Wiring Balanced and Unbalanced Devices
Phone Plug
(Balanced)
TRS
T
R
S
RCA
T
S
Phone Plug
(Unbalanced)
T
S
T
S
XLR
3
1
2
3
12
Source Device
Connector
Phoenix Contact
®
Input Connector
ST
