63
DISASSEMBLY PROCEDURES
Note: The Bose
®
logo is attached to the
center grille. Replacement center grilles DO
NOT come with the logo attached. You will
need to either re-use the old logo or order a
new one.

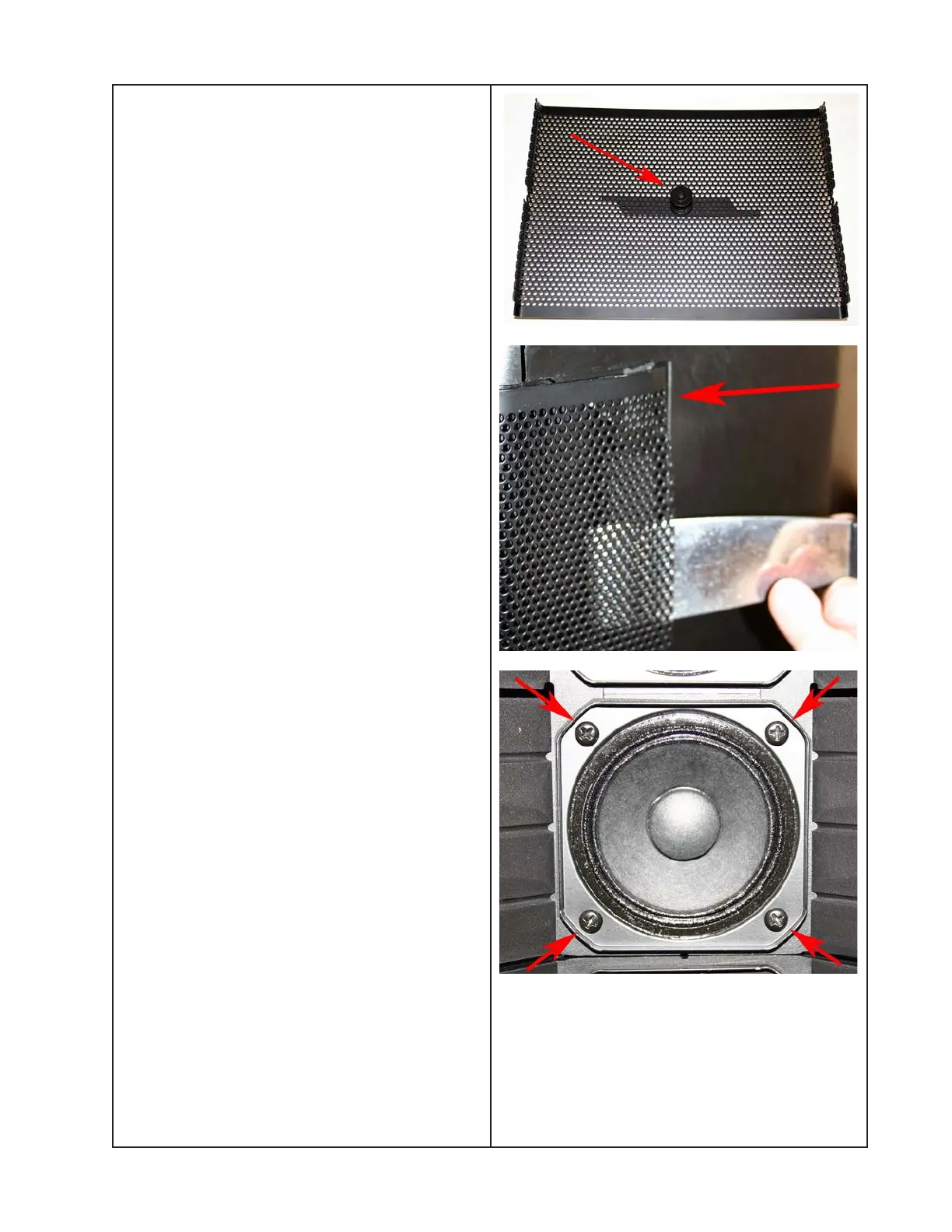

3. Logo Removal
3.1 Remove the center grille section using
procedure 1.
3.2 Remove the screw, washer and spring
that secure the logo to the center grille
section. Lift off the logo.
4. Side Grille Removal
4.1 Using a flat plastic tool, move the grille
sides away from the loudspeaker enclosure
until the retaining tabs are clear of the enclo-
sure. There are four retaining tabs per grille.
Note: Take care to not damage the loud-
speaker enclosure or the side grille.
4.2 Once the retaining tabs are clear, pull the
side grille straight off from the front of the
enclosure.
5. Twiddler
®
Removal
5.1 Remove the front grilles using
procedure 2.
5.2 Remove the 4 screws that secure the
driver you wish to remove. Lift the driver out
of the baffle.
To Next Page
