DISASSEMBLY PROCEDURES
5.3 Remove the two Faston connectors from
the driver. Lift out the driver. Note: Be sure to
observe polarity when connecting the new
driver.
6. Stand Mount Interface Removal
6.1 Remove the six screws that secure the
stand mount to the bottom of the loud-
speaker enclosure.
6.2 Carefully lift the stand mount interface
away from the loudspeaker enclosure. Take
care to not damage the mount interface
gasket. Note: If you damage the gasket, you
can order a replacement.
6.3 Lift off the stand mount interface.
Note: After replacement, ensure that there
are no air leaks using the test procedures in
this service manual.
7. Woofer Removal
Notes:
- The woofer is located behind the woofer
baffle and the Twiddler array. You must
remove the woofer baffle to access the
woofer.
- There is no need to remove the Twiddler
baffles or drivers to remove the woofer baffle.

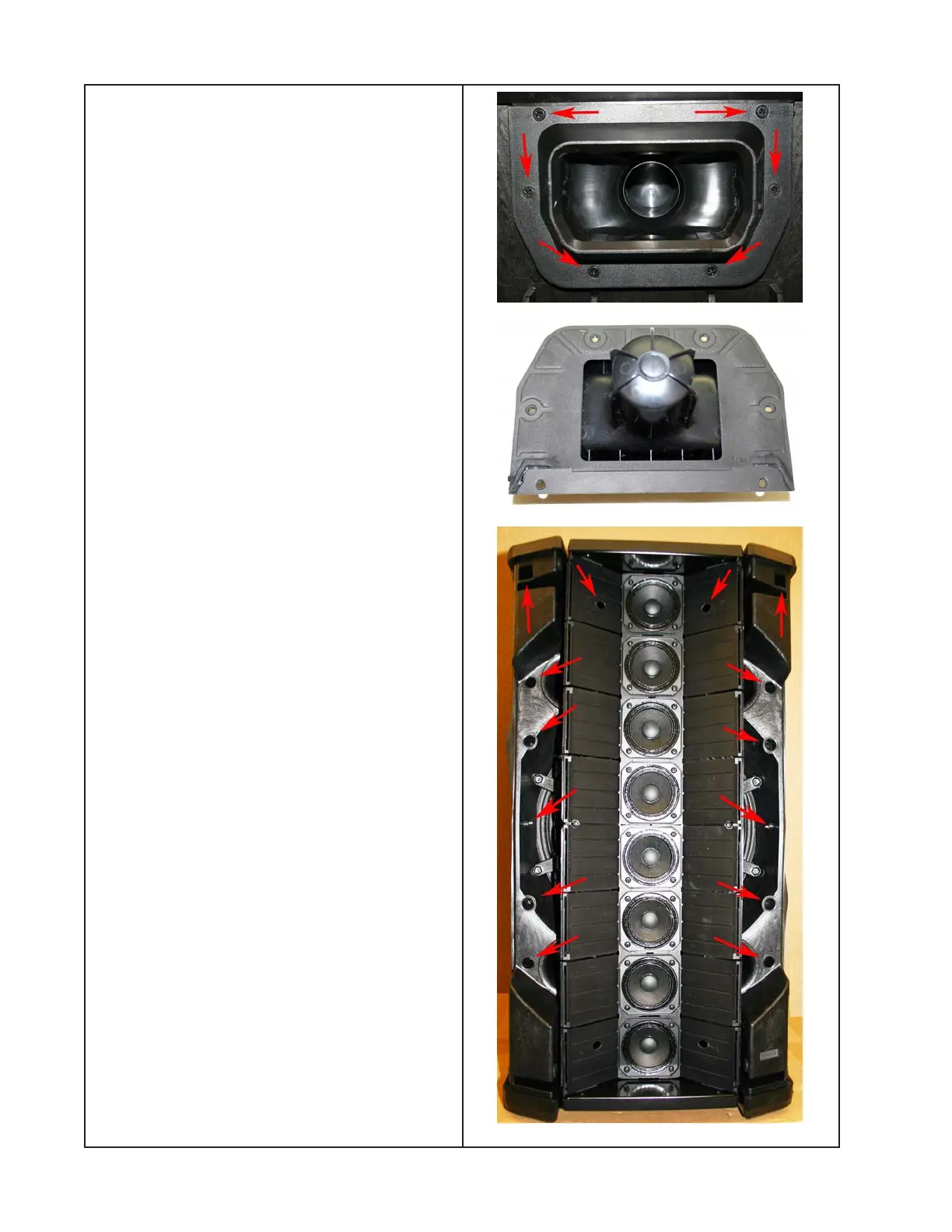

7.1 Remove the center and side grilles using
procedures 2 and 3. Remove the feet using
procedure 1.
7.2 Locate and remove the baffle retention
screws. There are a total of twelve on the
baffle. Also remove the two silver colored
screws located in the middle of the sides of
the enclosure. Do not remove the four black
screws along the sides of the enclosure.
Important Note: There are 2 screws located
behind the top two holes in the upper
Twiddler baffle. You will need a long Phillips-
head screwdriver to reach them. There are
no screws located behind the two holes in
the lower Twiddler baffle.
