SOFTWARE UPDATE PROCEDURE

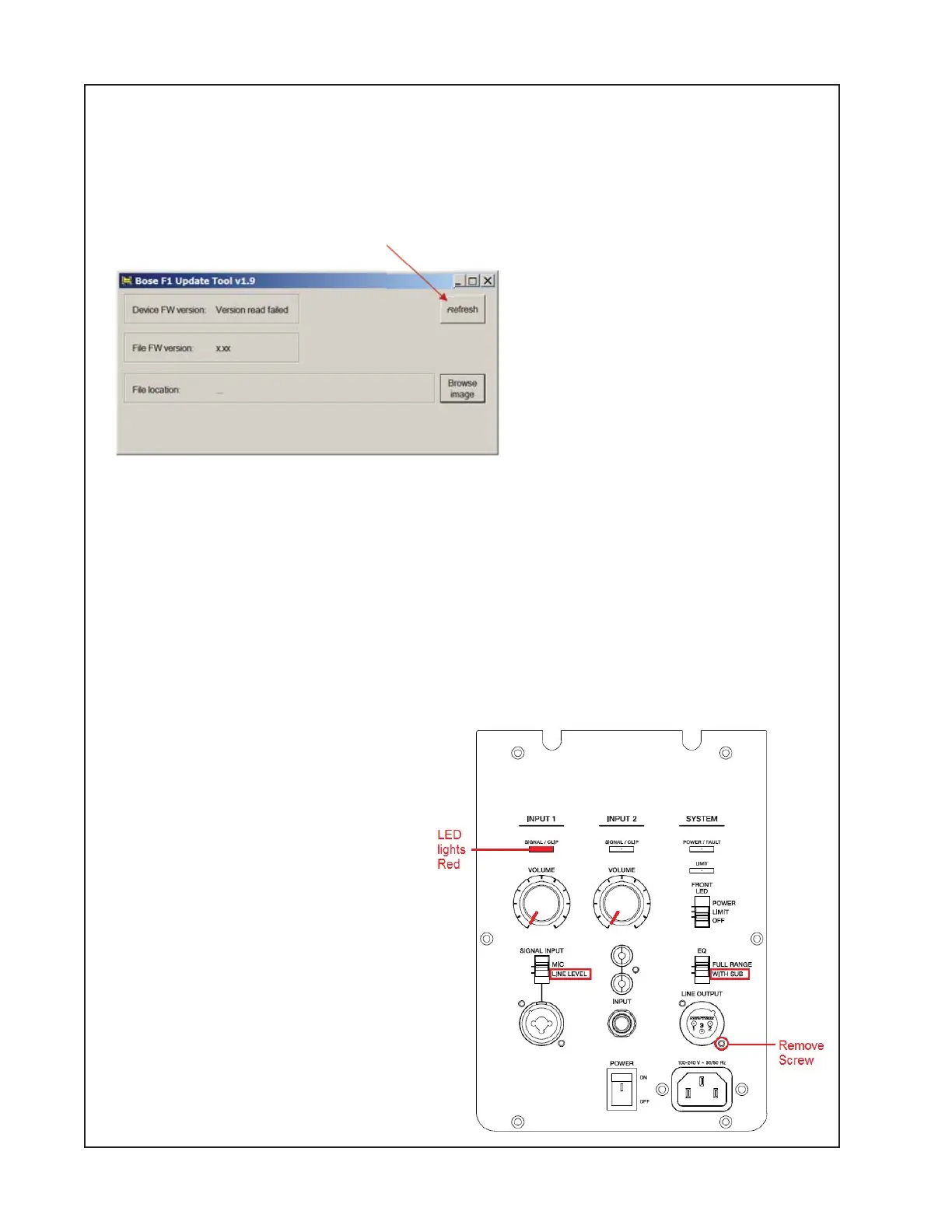

3.2 Double-click the Update_Tool.exe to open the program.
3.3 Once the program is open and with the Aardvark USB and all cabling connected to the
loudspeaker, Click on the Refresh Button in the program. See below. This is needed to activate
the Aardvark I2C/SPI adapter.
IMPORTANT NOTE: If you do not perform this step, the speaker will not go into Update mode
later in this procedure.
3.4 If not yet done, connect the Aardvark I2C/SPI adapter to the F1 Loudspeaker.
3.5 Configure the F1 Loudspeaker for update using the below steps.
4. Configuring the F1 Loudspeaker for the Updater program.
Mid-High Array (MHA) DSP Panel:
1. Power on the Loudspeaker by turning on the AC power switch.
2. Turn both VOLUME controls to OFF.
3. Set the EQ switch to WITH SUB.
4. Set the Signal Input switch to LINE.
5. Remove the screw as shown at right.
6. Verify that the Updater cable is con-
nected to the SIGNAL INPUT and LINE
OUTPUT XLR connectors.
7. Insert a tooth pick or other thin stick
into the hole from the removed screw
and press the button on the PC board.
You will feel the switch “click”. The
INPUT 1 Red CLIP LED will light and the
Programming Mode will be Enabled.
Note: There is a 10 second time delay
from the time the unit is first powered on
to when it will allow the Input 1 Red
CLIP LED to light.
Once in programming mode, the tooth
pick can then be removed. The Red
CLIP LED will stay lit, keeping the F1 in
Programming Mode until the Unit is
Powered Off after programming is
complete.
