Product Information
FreeSpace
®
IZA 2120-LZ
AC Current Draw and Thermal Dissipation Information
Test Signal & Power Level
Load Configuration
(Both IZA channels driven)
Total Audio
Output, W
120VAC 60Hz.
Line Current, A
230VAC 50Hz.
Line Current, A
Thermal Dissipation, Max
Watts BTU/hr. kCal/hr.
Power On, Idling
0 0.16 0.13 30 102 26
1/8th Rated Power
IEC65 Bandlimited Pink Noise
8Ω / Ch 15 0.19 0.15 34 116 29
6 dB Crest Factor
DS 16 EQ Enabled
4Ω / Ch 30 0.50 0.28 64 218 55
1/3rd Rated Power
IEC65 Bandlimited Pink Noise
8Ω / Ch 40 0.25 0.17 39 133 34
6 dB Crest Factor
DS 16 EQ Enabled
4Ω / Ch 80 1.00 0.539 136 464 117

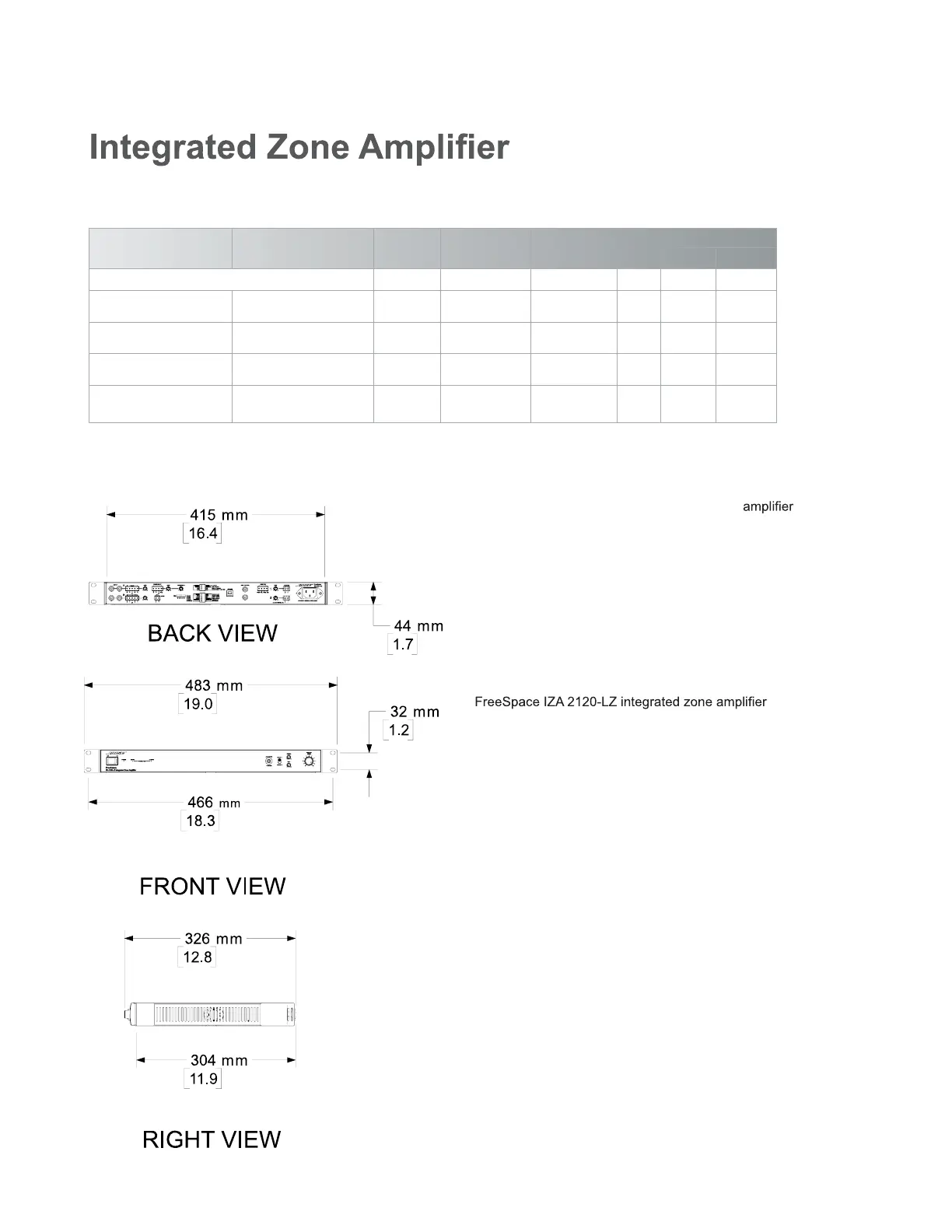

Mechanical Diagrams
Safety and Regulatory Compliance
The FreeSpace IZA 2120-LZ integrated zone
complies with CE requirements and is UL listed
according to UL60065 (7th edition) and CAN/CSA C22.2
No. 60065-03; CB approved, according to IEC60065
(7th edition), including group and national differences.
This model also complies with FCC Part 15B Class A
(2003), EN55103-1 (1997), EN55103-2 (1996), and
CISPR13 (2003) requirements.
Product Codes
120V – US 719782-1420
230V – EU 719782-2420
100V – Japan 719782-3420
230V – UK 719782-4420
240V – AU 719782-5420
Accessories
Volume control user interface (PC041966)
Volume control with A/B switch user interface (PC041967)
