Bose FreeSpace IZA 2120-HZ Service Manual

20
Product Information
FreeSpace
®
ZA 2120-LZ
AC Current Draw and Thermal Dissipation Information
Test Signal & Power Level
Load Configuration
(Both IZA channels driven)
Total Audio
Output, W
120VAC 60Hz.
Line Current, A
230VAC 50Hz.
Line Current, A
Thermal Dissipation, Max
Watts BTU/hr. kCal/hr.
Power On, Idling
0 0.13 0.12 28 96 24
1/8th Rated Power
IEC65 Bandlimited Pink Noise
8Ω / Ch 15 0.18 0.14 32 109 28
6 dB Crest Factor
DS 16 EQ Enabled
4Ω / Ch 30 0.50 0.27 62 212 53
1/3rd Rated Power
IEC65 Bandlimited Pink Noise
8Ω / Ch 40 0.24 0.17 39 133 34
6 dB Crest Factor
DS 16 EQ Enabled
4Ω / Ch 80 1.00 0.55 127 433 109

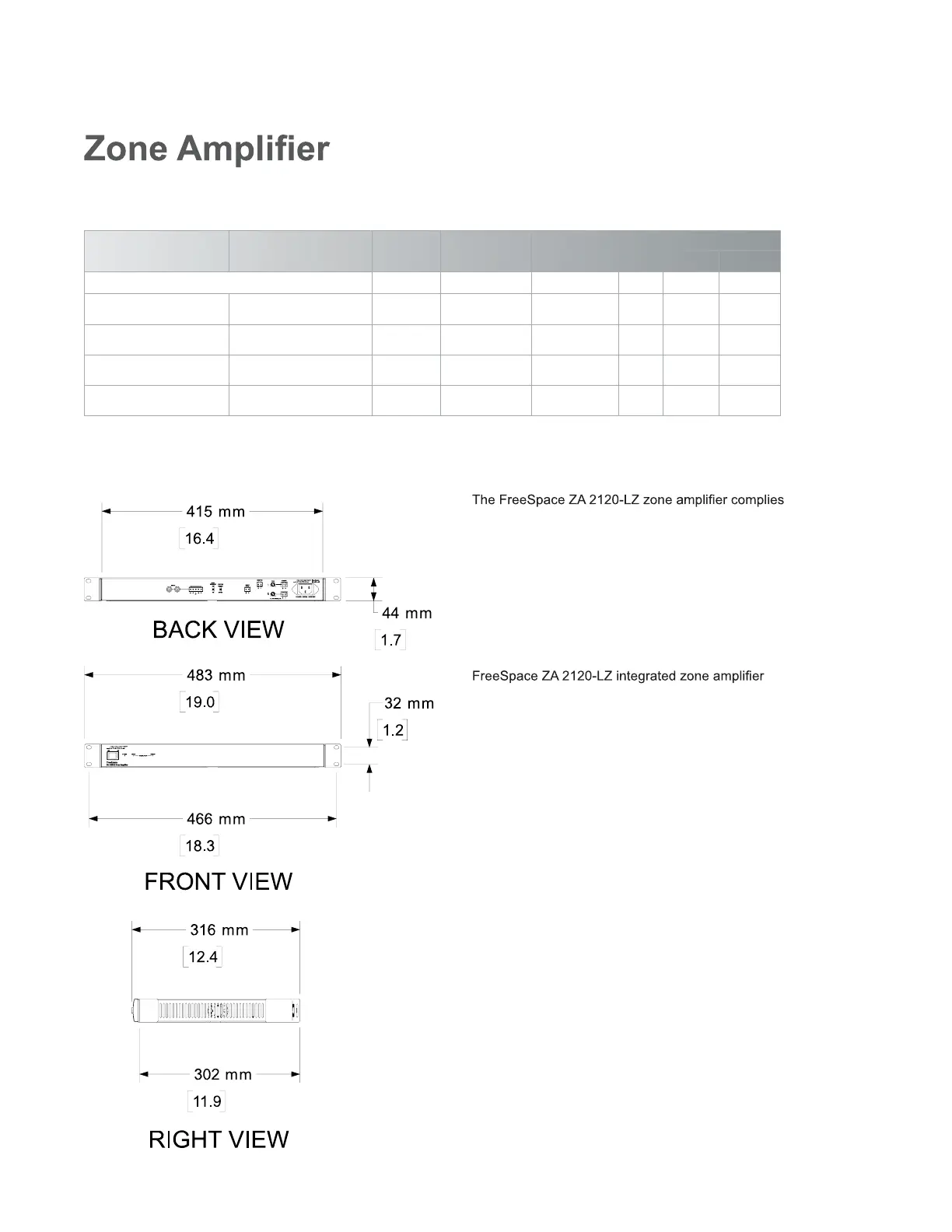

Mechanical Diagrams
Safety and Regulatory Compliance
with CE requirements and is UL listed according to
UL60065 (7th edition) and CAN/CSA C22.2 No. 60065-
03; CB approved, according to IEC60065 (7th edition),
including group and national differences. This model
also complies with FCC Part 15B Class A (2003),
EN55103-1 (1997), EN55103-2 (1996), and CISPR13
(2003) requirements.
Product Codes
120V – US 722196-1420
230V – EU 722196-2420
100V – Japan 722196-3420
230V – UK 722196-4420
240V – AU 722196-5420
Accessories
Volume control user interface (PC041966)

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
