Bose FreeSpace IZA 2120-HZ Service Manual

25

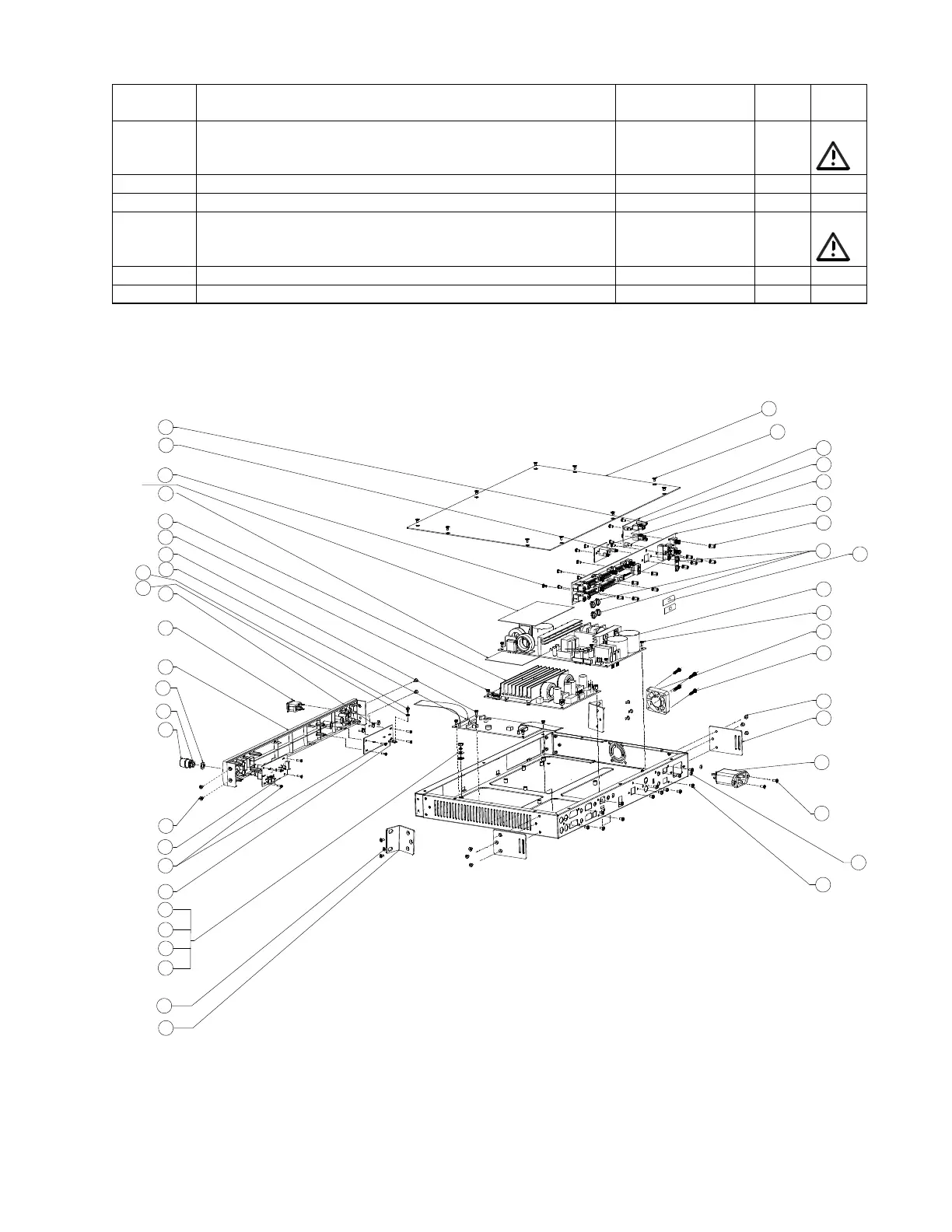

Figure 3. IZA 2120-HZ and IZA 2120-LZ Amplifiers Exploded View
1
2
3
4
5
6
7
19
8
9
10
11
12
2
13
14
15
16
17
18
19
20
21
22
23
24
25
26
2
27
28
29
30
31
32
33
34
35
10
10
36
37
17
COMES
WITH
ITEM 1
38
39
MAIN PART LIST
IZA 2120-HZ and IZA 2120-LZ Amplifiers (refer to Figure x)
Item
Number
Description Part Numbe
r
Qty. Note
- ASSY, CABLE, GROUND INLET 753371-001S 1 3
- ASSY, HARNESS, DSP TO AMP 753370-001S 1
- ASSY, HARNESS, DSP TO PS 753369-001S 1
- ASSY, HARNESS, IEC TO SWITCH 753367-001S 1 3
- ASSY, HARNESS, PS TO AMP 753368-001S 1
- CLAMP IC 65MN 740002-001S 9

Bose FreeSpace IZA 2120-HZ Specifications

General

Maximum current	5 A
AC input voltage	230 V
AC input frequency	50 Hz
Amplifier class	D
Frequency range	55 - 20000 Hz
Audio output channels	2.0 channels
Peak power per channel	- W
Total Harmonic Distortion (THD)	0.3 %
Purpose	Performance/stage
Equalizer	Yes
Product color	Silver
Volume control	Rotary
Connectivity technology	Wired
Line inputs (RCA)	2
Speakers connectivity type	RCA
Package weight	5400 g

Weight and Dimensions

Depth	324 mm
Width	483 mm
Height	44 mm
Weight	4100 g
