Bose FreeSpace IZA 250-LZ

!""'"#"%"
!
!#"$##&#$##
)"! !#
#!!"!#"#!!" #%&!"

#!#( *!



( *!



Application 4: Boardroom, Single Amplifier
This application satisfies the requirements of most
boardrooms. In this particular case three sources are
required: a video conferencing system, a Blu-ray
player, and a laptop input.
All equipment is stored on an A/V rack built into the
room. Mounted into the ceiling are stereo
configuration of DS 40F loudspeakers.
Users simply switch between the two inputs, A or B,
or use their laptop using the front panel AUX INPUT
connector which takes priority over other inputs.

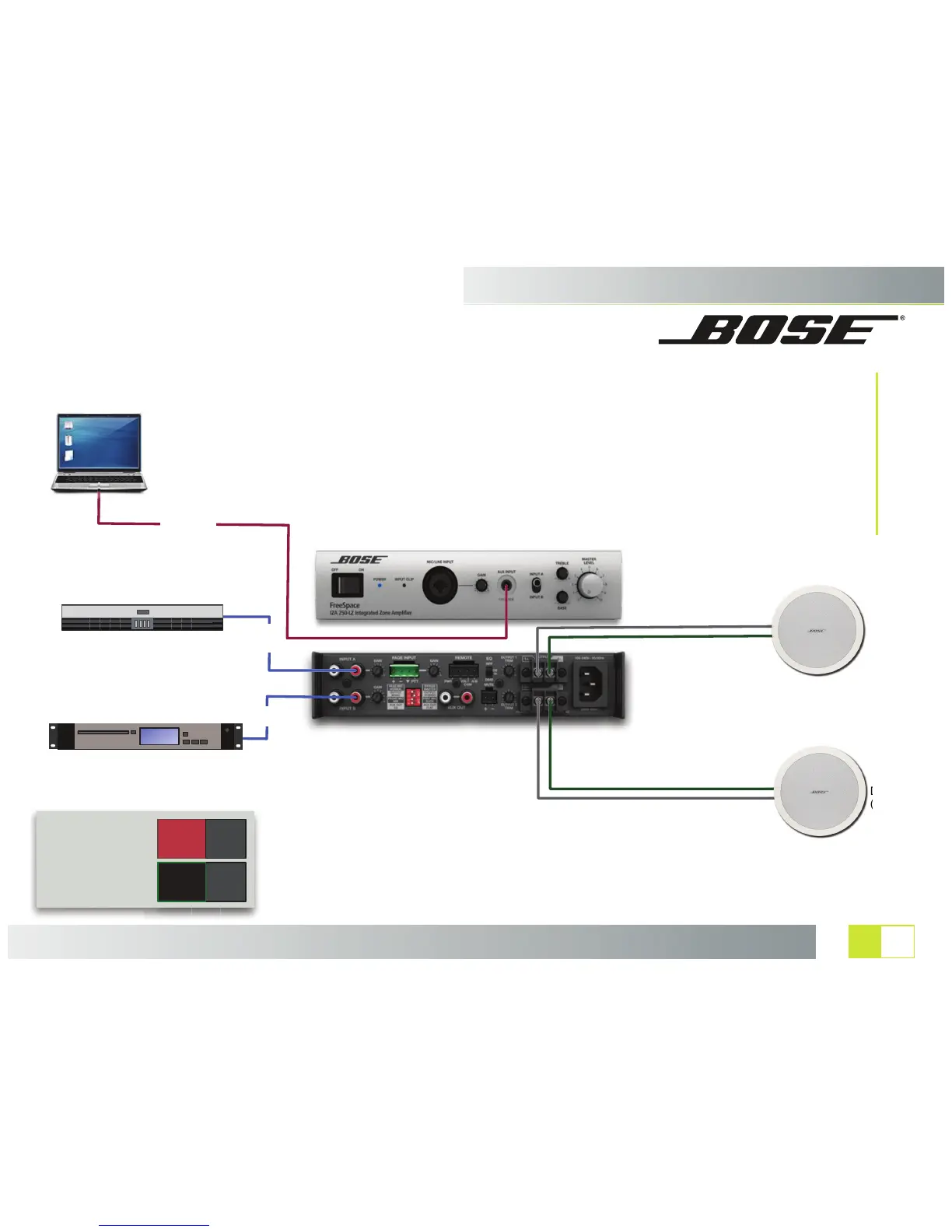

IZA 250-LZ (Front and Rear Panels)
RCA
Stereo
Patch
RCA Stereo
Patch
Blu-ray / DVD / CD Player
Amplifier Configuration
DIP Switches
Page/Mic
Output
Front Mic
Aux Out
NORMAL
STEREO
MIX
EQ
Loudspeaker EQ
Selector Switch
DS40EQ
3.5mm Patch
DS 40F
(Left)
DS 40F
(Right)
Laptop
Video Conference System
Laptop
D
(
of 9
4
