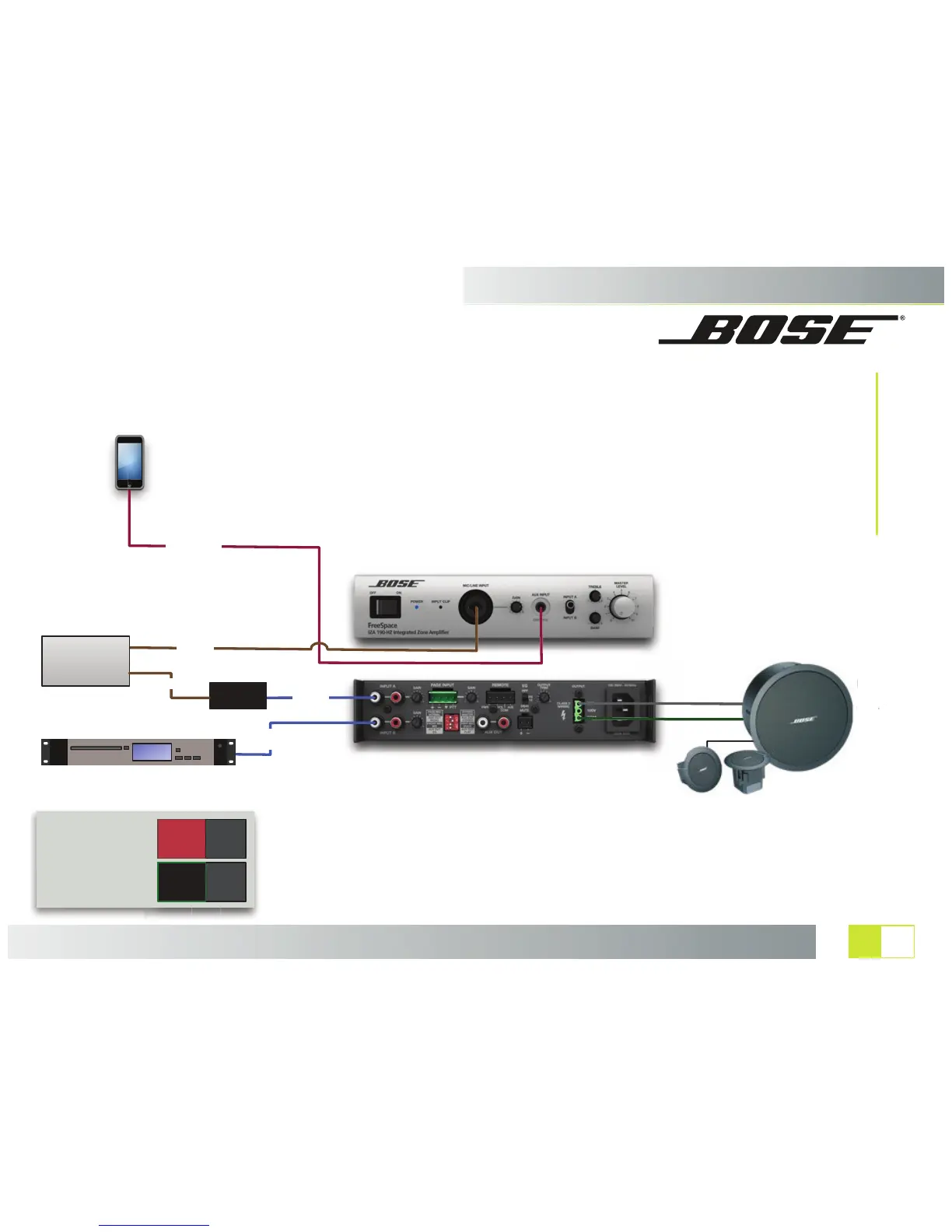

Application 5: Green Room, Single Amplifier
A "green room", a room located in a performance venue where artists wait before and
after performances, must be equipped with sound to allow the performers to monitor
the stage/control and also provide the ability to connect sources they may need to
enhance their performances or to simply help them relax. This room is outfitted with a
mono 2-cube FS3 arrangement and uses the HPF setting on the amplifier which
provides a 60 Hz high-pass filter.
In this example, artists can toggle between listening to the stage feed (INPUT A via a
direct box) or a DVD/CD (INPUT B) player in the room. So that they hear important
communications, the control room's intercom system feeds into the front panel Mic/Line
input where the amplifier is set to BYPASS the master volume control and duck the
music. An additional 3.5mm connector is available for connection to mobile devices.
1/4" (M) to
RCA (M)
RCA Mono
Patch
DVD / CD Player
Amplifier Configuration
DIP Switches
Page/Mic
Aux Out
Front Mic
Aux Out
BYPASS
MONO
DUCK
FLAT
Loudspeaker EQ
Selector Switch
HPFEQ
3.5mm Patch
FS 3
2-Cube
(50 W Tap)
IZA 190-HZ (Front and Rear Panels)
Mobile Device
Mic Cable
Room
Panel
Control
Stage
DI Box
Mic Cable
