System Setup

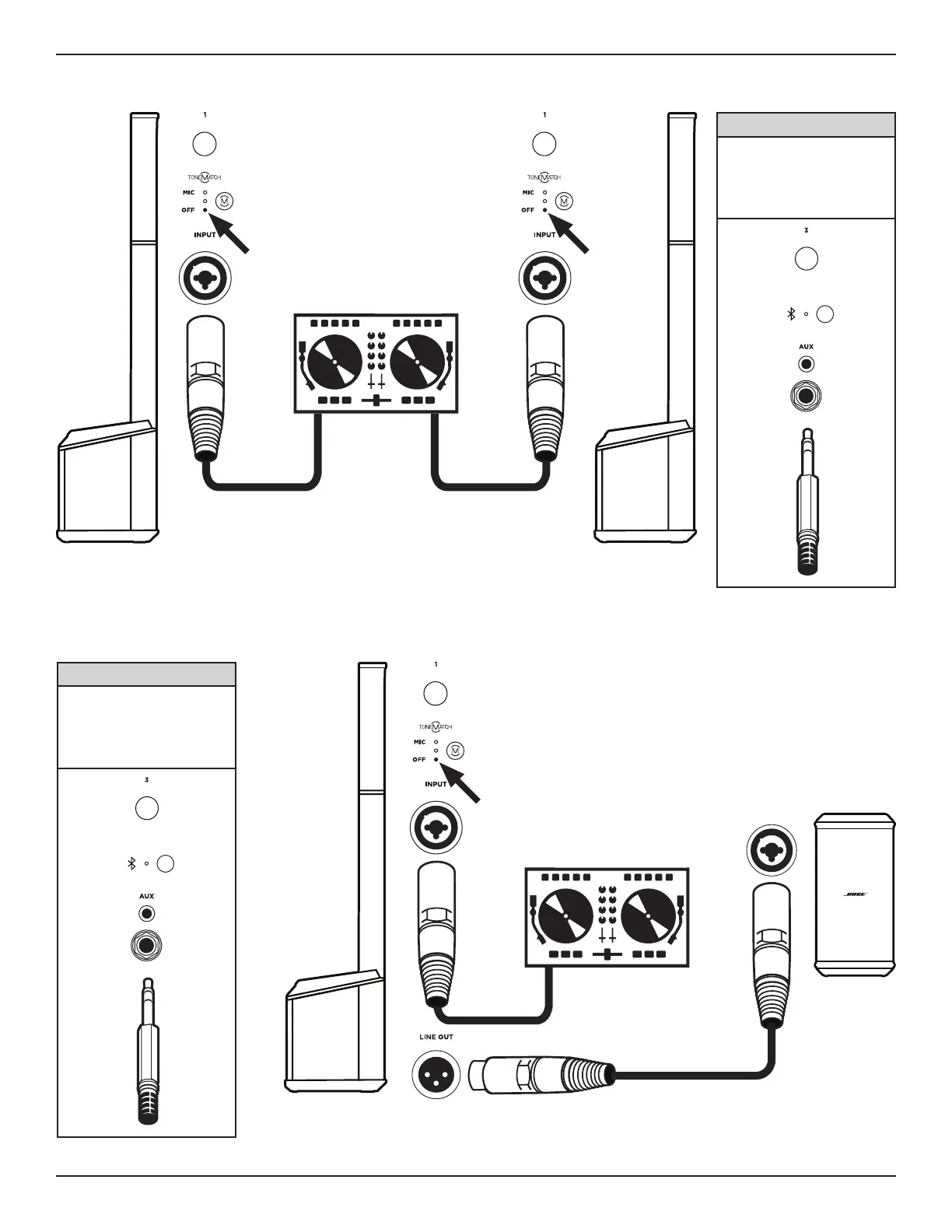

DJ Stereo
DJ with Sub1
L R
LINE IN 1
*Alternate Connection
This scenario may require a
specialized cable or adapter.
Connect a TRS cable to the
TRS Line Input to allow for a
wider range of volume control.
MUTE MUTE MUTE
INST INST
*Alternate Connection
This scenario may require a
specialized cable or adapter.
Connect a TRS cable to the
TRS Line Input to allow for a
wider range of volume control.
MUTE MUTE MUTE
INST INST
*
*
*
Note: For proper Sub1/Sub2 settings, see the Sub1/Sub2 owner's guide at PRO.BOSE.COM.
