System Setup

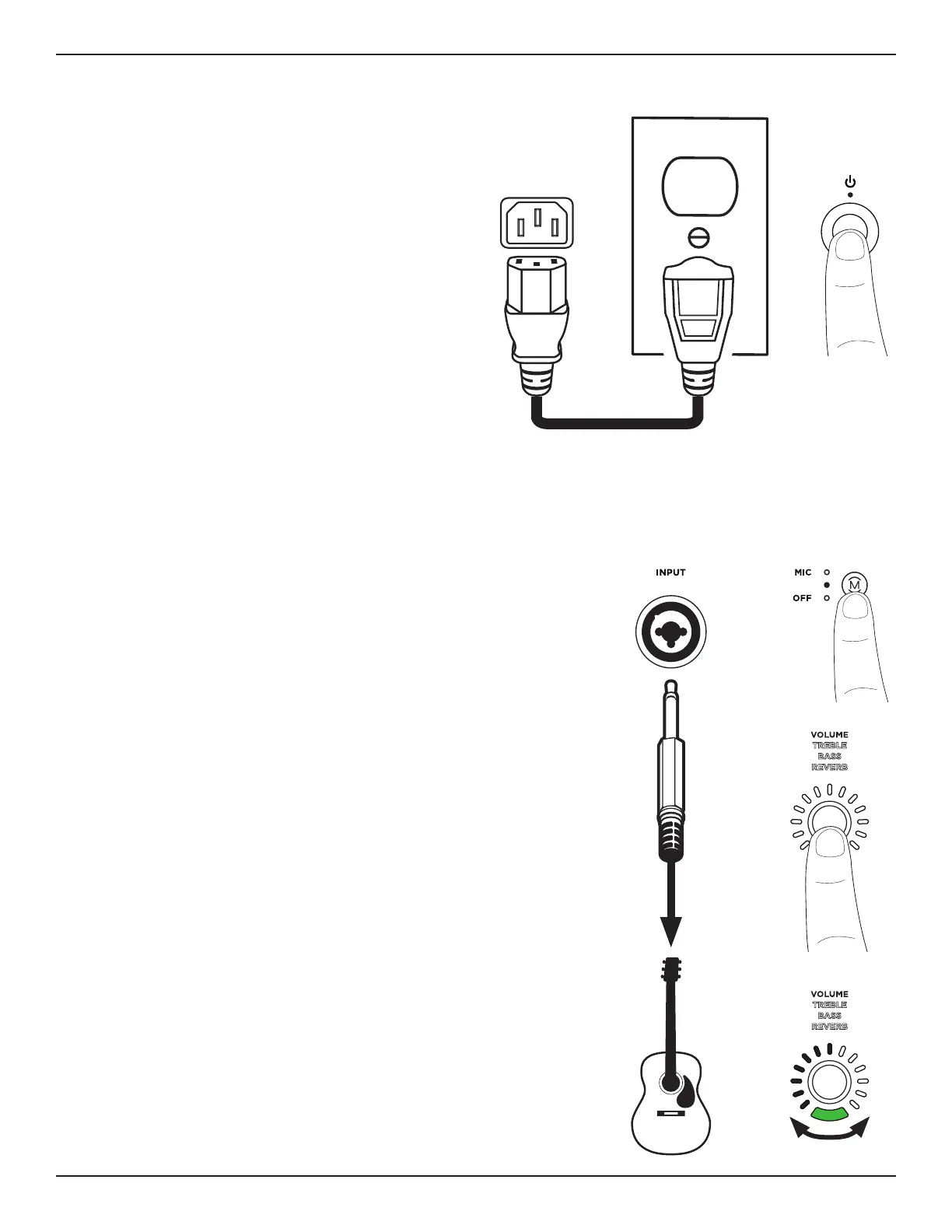

Connecting Power
1. Plug the power cord into the Power Input on
the L1 Pro.
2. Plug the other end of the power cord into a live
electrical outlet.
Note: Do not power on the system until after you've
connected your sources. See Connecting Sources
below.
3. Press the Standby Button. The LED will
illuminate white while the system is on.
Note: Press and hold the Standby Button for 10
seconds to reset the system to factory settings.
AutoO/Low-power Standby
After four hours of no use, the L1 Pro will enter
AutoO/Low-power Standby mode to save power.
To wake the system from AutoO/Low-power
Standby mode, press the Standby Button.
q w e
Connecting Sources
Channel 1 & 2 Controls
Channel 1 and 2 are for use with microphones, guitars, keyboards,
or other instruments. Channel 1 and 2 will automatically detect a
source input level to adjust volume taper and gain stage.
1. Connect your sound source to the Channel Input with the
appropriate cable.
2. Apply a ToneMatch preset—to optimize the sound of your
microphone or instrument—by pressing the Channel ToneMatch
Button until the LED for your chosen preset is illuminated.
Use MIC for microphones and use INST for acoustic guitars
and other instruments. Use OFF if you do not want to apply a
preset.
Note: Use the L1 Mix app to choose custom presets from the
ToneMatch library. The corresponding LED will illuminate green
when a custom preset is selected.
3. Press the Channel Parameter Control to choose a parameter
to modify. The parameter name will illuminate white while it is
selected.
4. Rotate the Channel Parameter Control to adjust the level of the
selected parameter. The parameter LED will indicate the level of
the selected parameter.
Note: While Reverb is selected, press and hold the control for
two seconds to mute the reverb. While reverb is muted, Reverb
will flash white. To unmute reverb, press and hold for two
seconds while Reverb is selected. Reverb mute will reset when
the system is powered o.
q w
e
r
INST

Bose L1 Pro16 Specifications

General

Amplifier class	D
Frequency range	- Hz
RMS rated power	1250 W
Subwoofer peak power	1000 W
Sound pressure level (max)	124 dB
Amplifier	Built-in
Speaker type	-
Number of drivers	16
Built-in subwoofer	Yes
Subwoofer driver diameter (imperial)	18 \
Type	Freestanding Public Address (PA) system
Mounting type	Floor
Product color	Black
Volume control	Rotary
Number of mixer channels	3 channels
Connectivity technology	Wired & Wireless
6.35 mm (1⁄4-inch) input	1
Power source type	AC

Weight and Dimensions

Depth	456 mm
Width	355 mm
Height	2012 mm
Weight	24800 g
