Bose Panaray 802 Series IV User Manual

Introduction
Overview

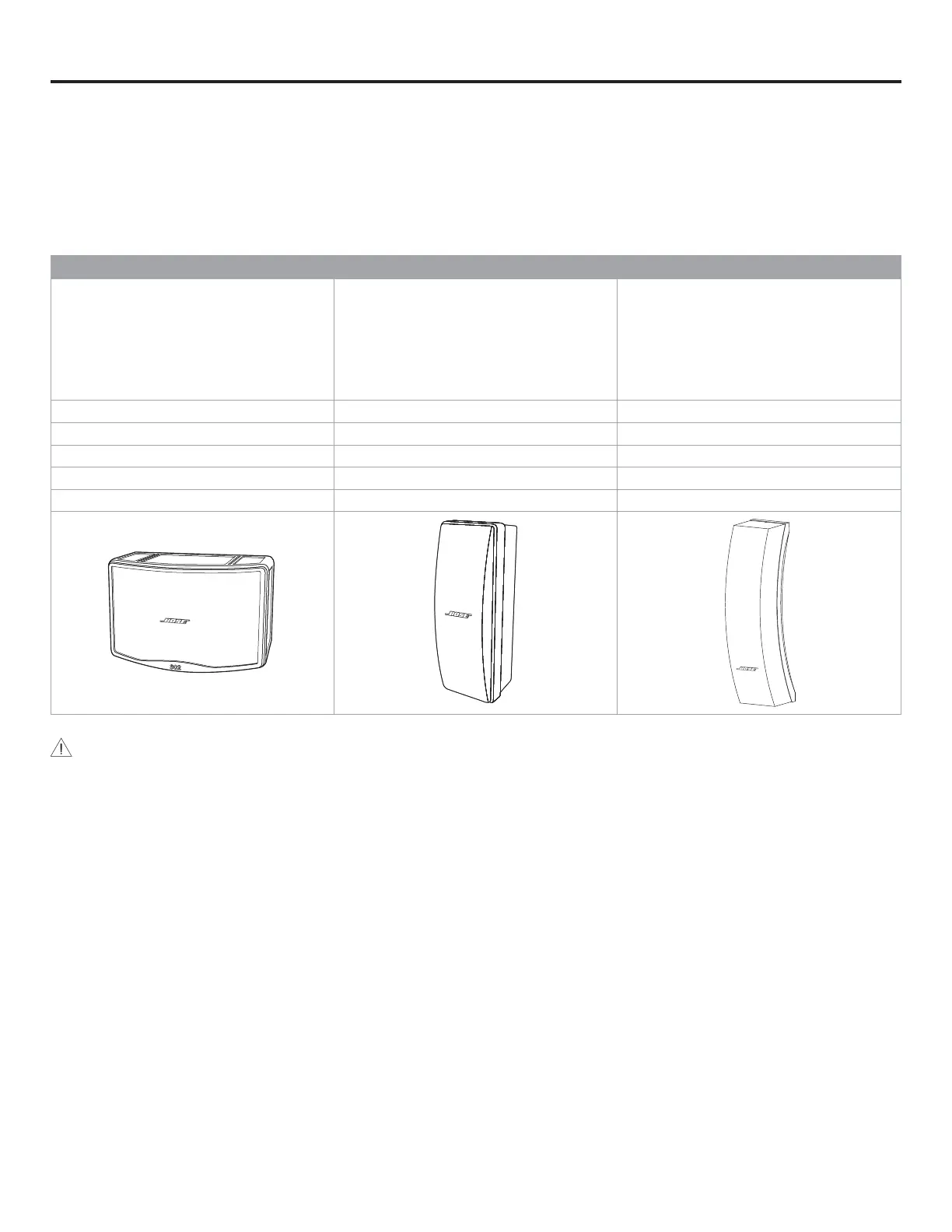

Panaray
®
sound-reinforcement loudspeakers feature full-range cone transducers in proprietary array configurations that
provide exceptional reliability in adverse conditions, while delivering natural vocal clarity. For more than five decades, Bose
has been improving the performance of full-range cone transducers to provide unmatched reliability, natural sound quality,
and wide coverage patterns. Available in both point-source and column line array acoustic designs, Panaray loudspeakers
cover a wide variety of installed-sound venues, for indoor or outdoor locations.
Panaray
®
802
®
Series IV Panaray
®
402
®
Series IV Panaray
®
502
®
A
The 802 Series IV loudspeaker, now in it’s 4th
generation, features 8 full-range drivers arranged
in a proprietary Articulated Array
®
design, deliv-
ering extension down to 52 Hz and natural vocal
clarity – all in a small, lightweight and weather
resistant enclosure.
The compact enclosure of the 402 Series
IV contains 4 full-range drivers arrayed for
increased vertical coverage control. Compared
to the 802, the 402 delivers similar output level,
but with tighter vertical coverage and less
low-frequency response. For smaller venues
requiring a high-value solution, a single 402 is
capable of covering an entire listening area for
accurate speech and music reproduction.
The Panaray 502 A features 5 full-range drivers
that deliver the most consistent coverage
pattern versus frequency within the Panaray line.
The slightly curved, narrow enclosure has an
elegant design that blends with any decor. For
speech program material, a single loudspeaker
can cover smaller venues. Use with full-range
music program requires additional subwoofers.
8 x 4.5-inch full-range cone drivers 4 x 4.5-inch full-range cone drivers 5 x 4.5-inch full-range cone drivers
52 – 15 kHz frequency range 73 – 15 kHz frequency range 103 – 15 kHz frequency range
120° H x 100° V coverage pattern 120° H x 60° V coverage pattern 120° H x 70° V coverage pattern
123 dB maximum peak SPL 119 dB maximum peak SPL 117 dB maximum peak SPL
Indoor/Outdoor Indoor/Outdoor Indoor use only
CAUTION: These loudspeakers are intended for installation by professional installers only.
5
pro.Bose.com

Bose Panaray 802 Series IV Specifications

General

Brand	Bose
Model	Panaray 802 Series IV
Category	Speakers
Language	English
