9
pro.Bose.com
Installation
Panaray
®
802
®
Series IV loudspeaker mounting options
Panaray
®
802
®
Series IV loudspeaker U-bracket (for indoor or outdoor use)
The Bose
®
802 Series IV loudspeaker can be mounted on a wall or ceiling using the U-bracket accessory kit (not included).
Recommended Tools: 5 mm Allen wrench
CAUTION: 802 Series IV loudspeakers weigh 13.6 kg (30 lb). Use caution when lifting to avoid injury and/or damage to the loudspeaker.
Do not rest loudspeakers on their grilles.
1.
Choose a mounting location that will safely support the weight (13.6 kg (30 lb)) of the loudspeaker. Refer to “Guide-
lines for permanent installation of Bose
®
Panaray
®
loudspeakers” on page 3.
CAUTION: Choose a position and mounting method consistent with local building codes and regulations. Ensure the mounting
surface and the method of attaching the loudspeaker to the surface is structurally capable of supporting the weight of the
loudspeaker. A 10:1 safety weight ratio is recommended.
2.

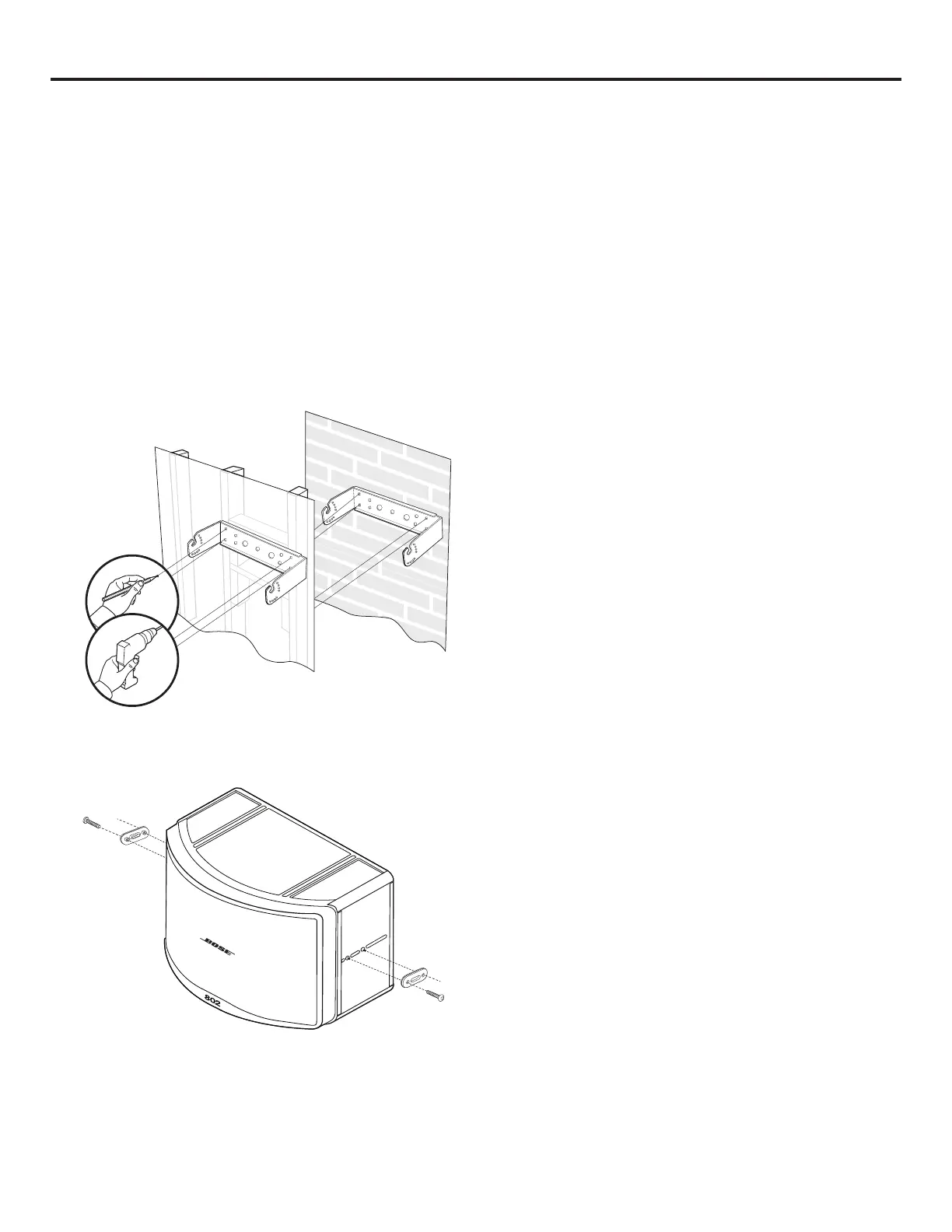

Hold the U-bracket in the mounting location and mark the holes.
3. Drill four holes and mount the bracket using all four screws.
4. Remove the backing from the foam tape and attach a bracket spacer to each side of the loudspeaker. Insert an M8
cap screw into the front hole on each side of the loudspeaker. Do not tighten.
