Modeler Properties and Operation

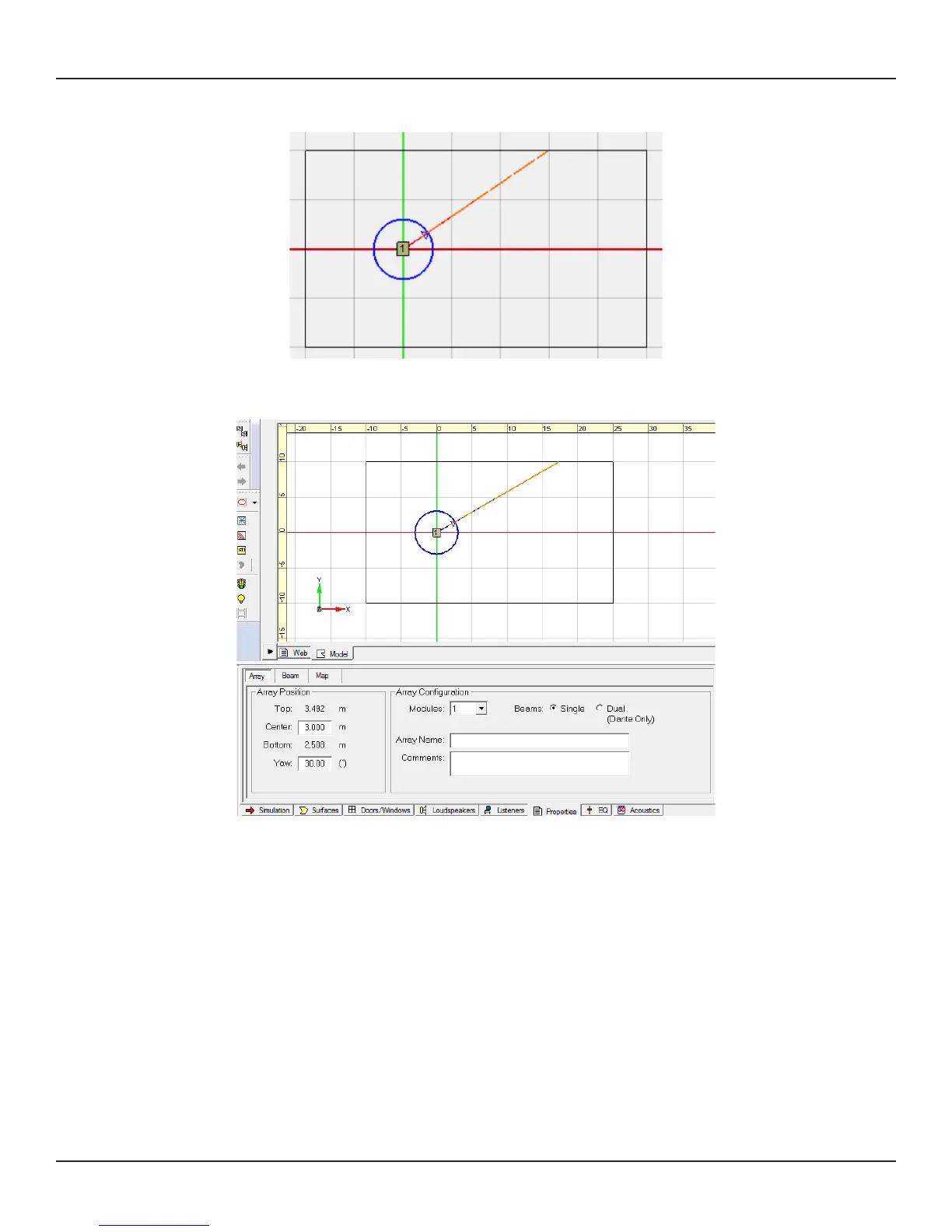

Yaw the array if necessary. Select the blue arrow of the array aiming tool and move.
Click and select the array. Go to the Properties tab in the Detail View.
Change the array mounting position (height) in the Array Position frame. Center is the Z-coordinate of the
array center; Top is the MSA12X top plate; Bottom is MSA12X bottom plate.
