34 - Design Guide
CSD Properties and Operation

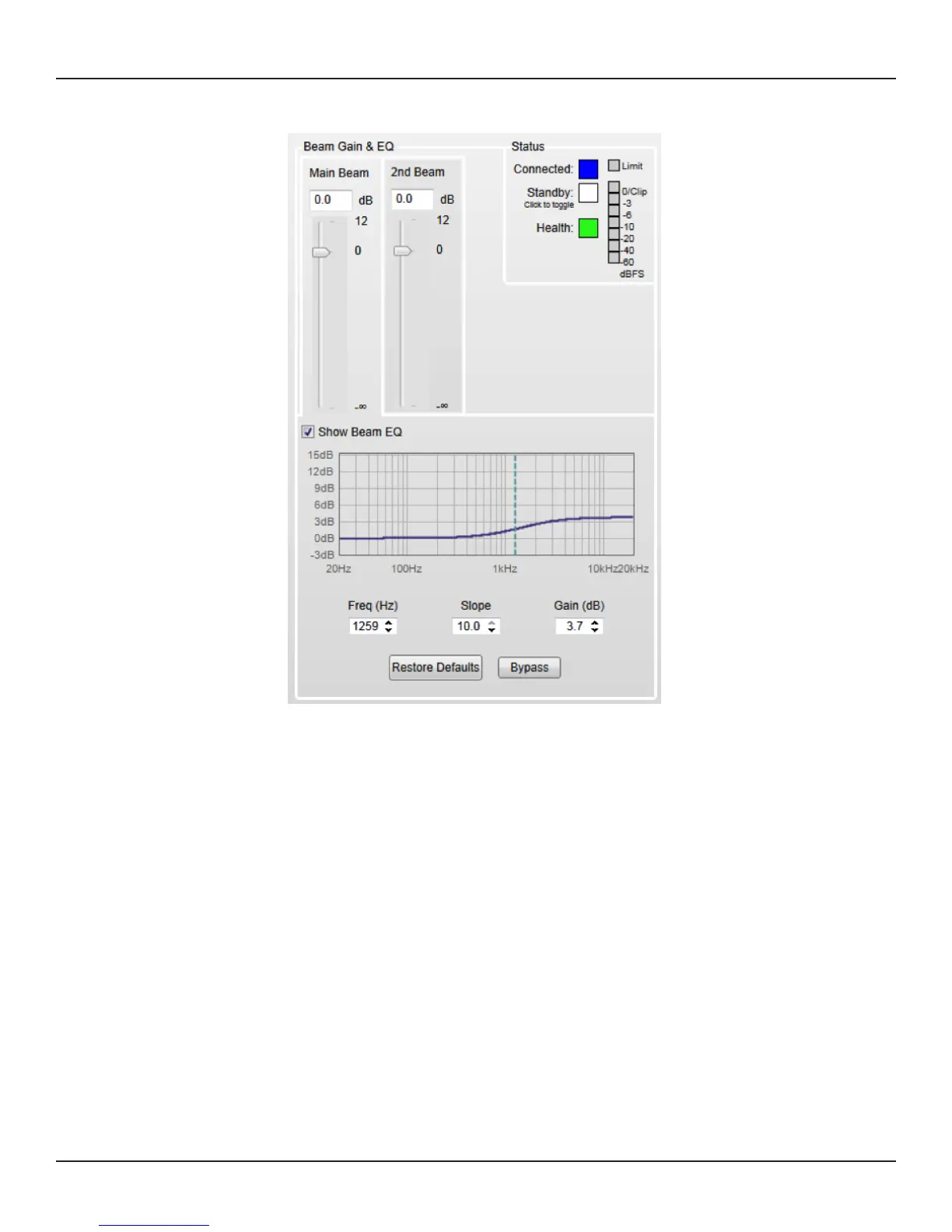

Adjust Beam Gain and Beam EQ
The Beam Gain and Beam EQ can be changed.
Beam Gain is for balancing gains between two beams when in Dual Beam mode.
Note: Beam gain cannot be assigned to ControlSpace® wall panels, such as CC-64 or ControlSpace Remote.
Beam EQ is a filter to compensate for the tonal balance change depending on the beam spreading. The Beam
EQ curve is calculated in Modeler® for each beam automatically, and sent to CSD. The shape of the curve can
also be adjusted. By clicking the beam gain for each beam, the Beam EQ display is toggled for that beam.
