Bose Panaray MSA12X - Dante Endpoint Association and Routing

Design Guide - 29
CSD Properties and Operation
Associate ESP and MSA12X
In order to set multiple beam patterns for an MSA12X array and invoke changes from external devices, such as
a Bose CC-64 controller, you need a supported Bose® ControlSpace® processor. Then, associate the MSA12X
to the ControlSpace processor in CSD. Also through this process you can setup Dante® routing. If you use
analog for your audio signal and do not need to set/invoke multiple beam patterns, you can skip this section.
1. Scan the network with CSD Scan.

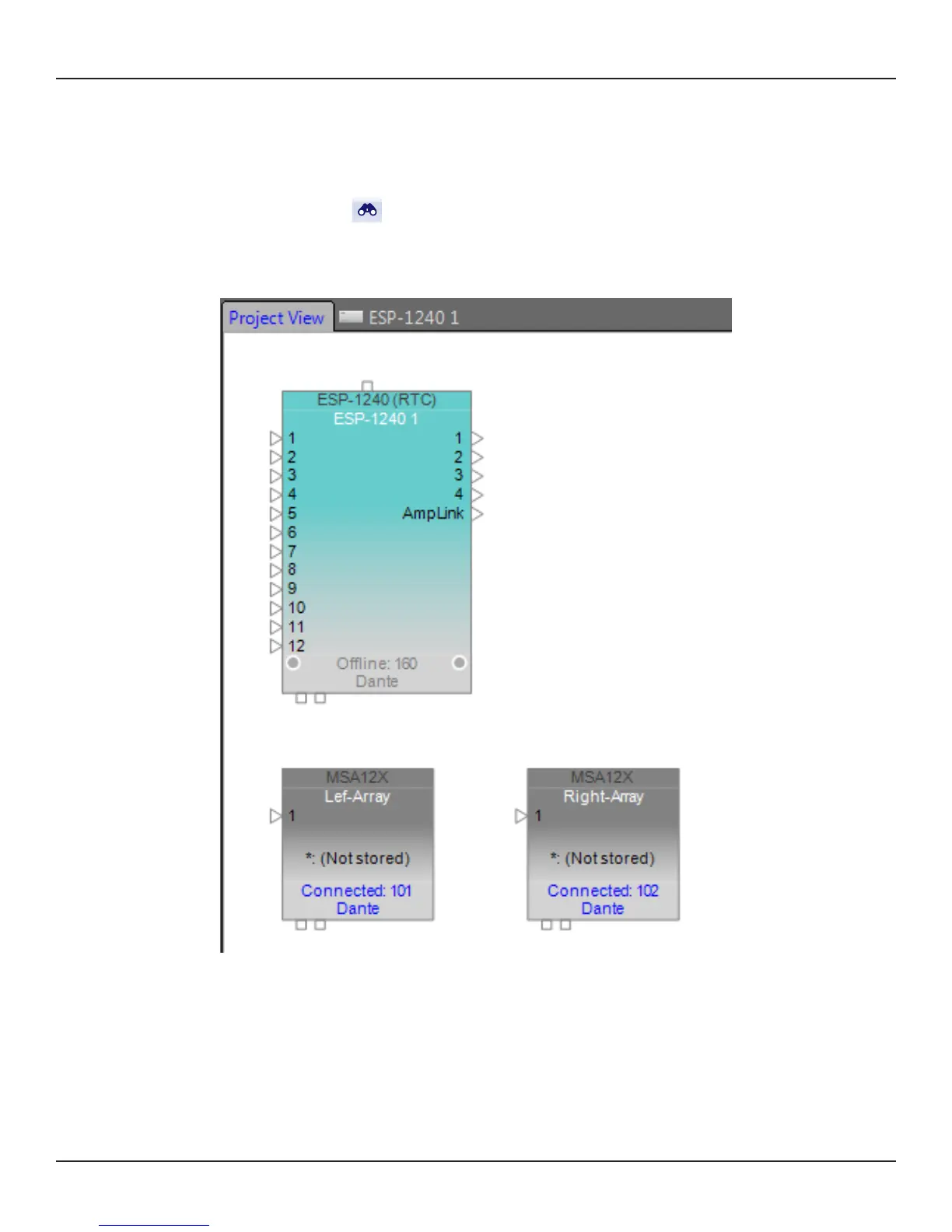

2. An ESP device block appears on the Project View.
