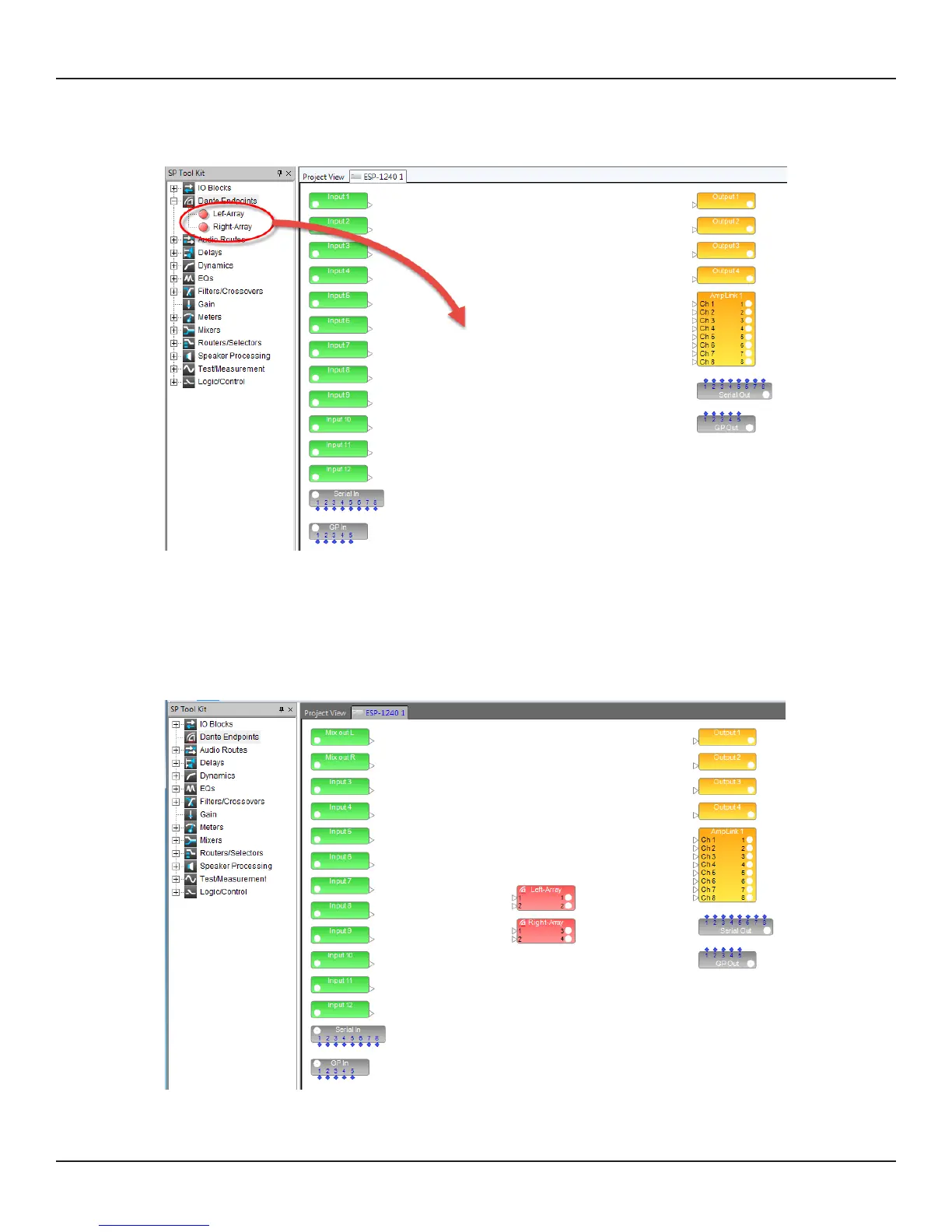

3. Double-click the ESP device block and go to the device view of the ESP. Now you see MSA12X devices in
the list under Dante Endpoints in the SP Tool Kit. Drag-drop these devices from the SP Tool Kit into the
device view. This means that these devices are associated with the ESP currently selected.
4. When you drag-drop the devices from SP Tool Kit, red blocks appear in the Device View. These represent
the Dante output blocks for the MSA12X devices. Notice you have two output channels for each MSA12X
array. These 2 channels correspond to the two beams when the array is in dual beam mode; Ch1 is for Main
Beam, and Ch2 is for Secondary Beam. If the array is in Single beam mode, signal for Ch2 is not radiated
from MSA12X array.
