Design Guide - 17
User Interface for Beam Shaping
Dual Beam Mode

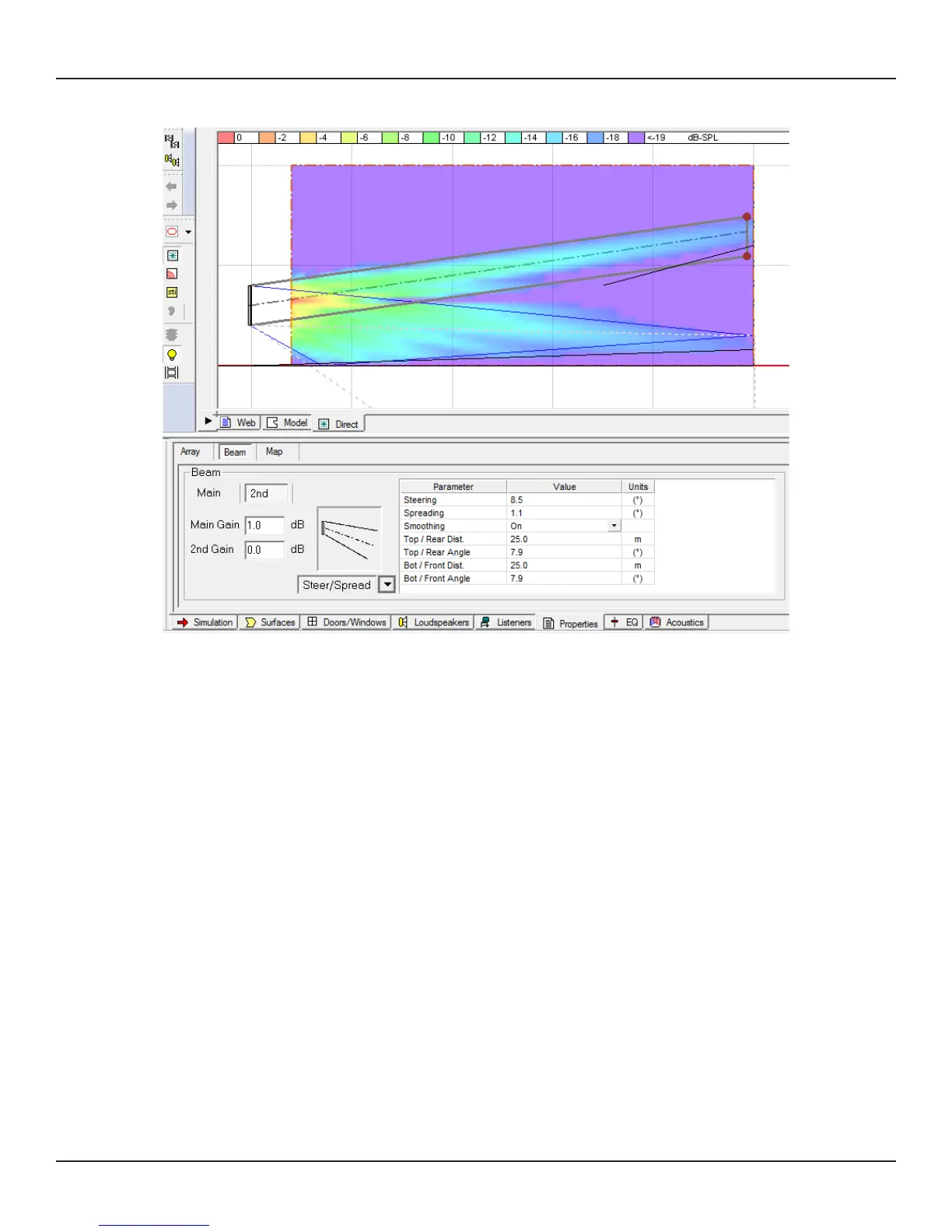

Dual Beam mode radiates two beams from a MSA12X array. When you have selected Dual in the Array tab
(see page 11), a 2nd tab appears for the secondary beam. You can choose any of the three beam types for
each beam (Main beam and Secondary beam) independently. You can also apply beam gains for each beam
to balance the level at the seating area.
By selecting the ‘Main’ and ‘2nd’ tab, the beam type selection and corresponding parameters displayed are
switched.
Note: Dual beam is only possible by using the Dante® input with the actual system (Modeler does not have
property to set the input type). When saving Modeler steering in CSD with Dual Beams, ensure Dante input is
selected before saving.
