Bose PowerMatch PM8250 User Manual

Page 28 User Guide English
Installation and Operating Guide pro.Bose.com

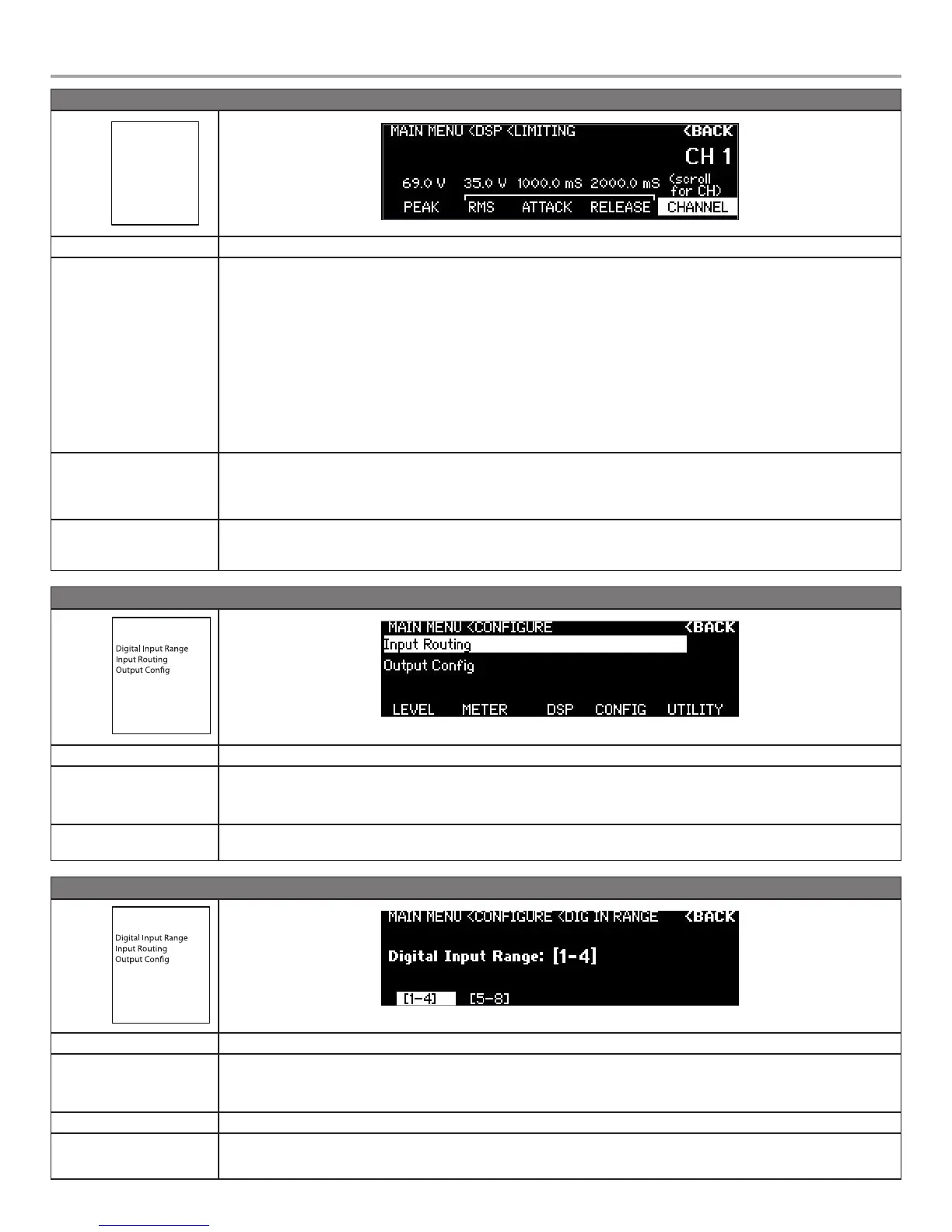

MAIN MENU < DSP < LIMITING
DSP
Speaker Presets
Array EQ
Delay
Limiting
Description This display allows you to adjust limiting parameters that allow for loudspeaker driver protection for each output channel.
Available Controls To access Limiting, use the rotary encoder dial from the DSP menu to highlight, then press to select.
Navigation Soft Key: Back to DSP menu.
Menu Soft Key #5: Enables the selection of the output channel (or output groupings) using the rotary encoder dial.
Menu Soft Key #1: Enables the selection of a peak voltage value, which corresponds to the maximum voltage that may be applied to the driver
without causing over-excursion. Use the rotary encoder to adjust the selected parameter.
Menu Soft Key #2: Enables the selection of an RMS voltage threshold value, which works in conjunction with the subsequent attack and release
values. The RMS voltage setting corresponds to the long-term power handling capability of the loudspeaker. Use the rotary encoder to adjust the
selected parameter.
Menu Soft Key #3: Enables the selection of attack time, in milliseconds, related to the RMS limiter. Use the rotary encoder to adjust the selected
parameter.
Menu Soft Key #4: Enables the selection of release time, in milliseconds, related to the RMS limiter. Use the rotary encoder to adjust the selected
parameter.
Options PEAK: 0.5 to 200 Volts (dependant on output mode), 0.5 V increments
RMS: 0.5 to 100 Volts (dependant on output mode), 0.5 V increments
ATTACK: From 500 to 10,000 milliseconds
RELEASE: From 500 to 10,000 milliseconds
Notes Values are automatically applied for Bose
®
loudspeakers set in MAIN MENU < DSP < SPEAKER PRESETS.
For non-Bose loudspeakers, refer to manufacturer technical specifications for information to properly configure the limiter.
See "Setting the Limiting Function for use with 3rd Party Loudspeakers" on page 34 for further details.
MAIN MENU < CONFIGURE
CONFIGURE
Description The CONFIGURE menu allows you to access the configuration of input and output signals for a particular system design.
Available Controls Navigation Soft Key: Return back to MAIN MENU.
Menu Soft Key #1-5: Changes menu to respective category.
Rotary Encoder: Scrolls and selects menu options.
Options Output Config
Input Routing
MAIN MENU < CONFIGURE < DIGITAL INPUT RANGE
CONFIGURE
Description On 4-channel models (PM4500, PM4250), a group of channels from expansion cards card can be mapped to input channels A-D.
Available Controls "To access Digital Input Range, use the rotary encoder dial from the CONFIGURE menu to highlight, then press to select.
Navigation Soft Key: Back to CONFIG menu.
Menu Soft Key #1 and 2: Selects a range of digital input channels for access by the amplifier."
Options [1-4], [5-8]
Notes Amplifier models PM4500 and PM4250 are input channel limited to four analog and/or four digital channels. For additional flexibility, 8-channel
feeds from the digital expansion slot have been grouped into 4-channel banks for selective use in installations with multiple 4-channel PowerMatch
amplifiers.
➞
➞
➞

Bose PowerMatch PM8250 Specifications

General

Damping factor	1000
Amplifier class	D
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	99 dB
Total Harmonic Distortion (THD)	0.4 %
Bridge-mode power output per channel (4 Ohm)	500 W
Purpose	Performance/stage
Equalizer	Yes
Product color	Black
Connectivity technology	Wired
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Speakers connectivity type	-
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	11100 g
