Bose PowerMatch PM8500 Service Manual

10

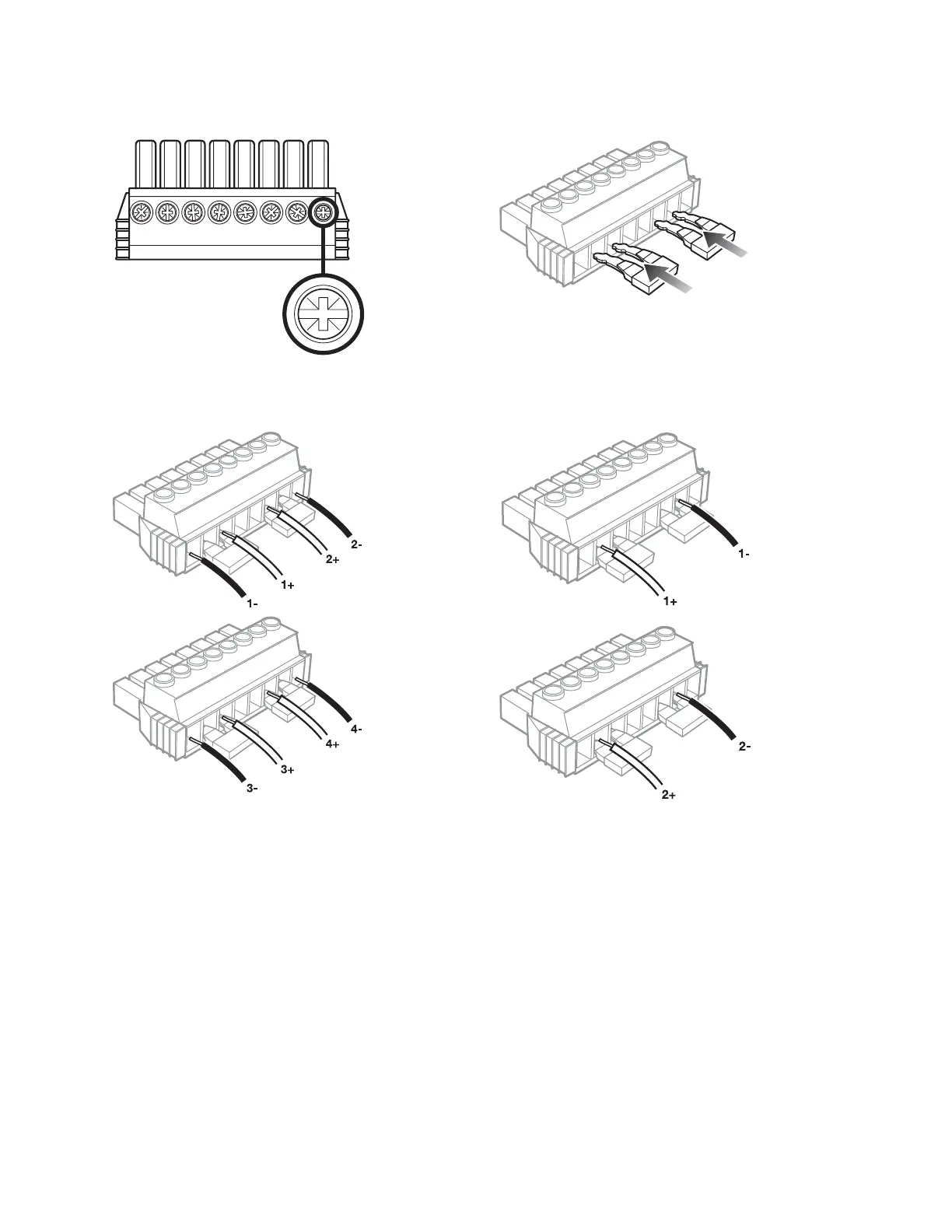

Loudspeaker Wiring for Quad Bridge
Configurations
Loudspeaker Wiring for I-Share
configurations
Shorting Jumper Positions for I-Share
and Quad Bridge Configurations
Methods for Setup Configuration
The PowerMatch
®
amplifiers allow setup and configuration via the front-panel controls for all
basic functions and recall of presets for Bose
®
Professional loudspeakers. Advanced features,
such as custom loudspeaker PEQ filters, may be accessed using the front-panel USB connec-
tion to any PC running Bose ControlSpace
®
V3.0 (or greater) software. Additionally, network
capable (N) models add the flexibility of remote setup and configuration using standard Ethernet
network equipment.
Screw Head for 8-Pin Output Connectors

Bose PowerMatch PM8500 Specifications

General

Efficiency	75 %
Amplifier class	D
Audio input channels	8 channels
Audio output channels	8.0 channels
Peak power per channel	500 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.1 %
USB port type	USB Type-B
Ethernet LAN data rates	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Speakers connectivity type	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Purpose	Performance/stage
Cooling type	Active
On/off switch	Yes
Product color	Black
Connectivity technology	Wired
Package weight	15700 g
Operating temperature (T-T)	0 - 40 °C
LED indicators	Fault

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	12900 g
