Bose PowerMatch PM8500 Service Manual

30
TEST PROCEDURES

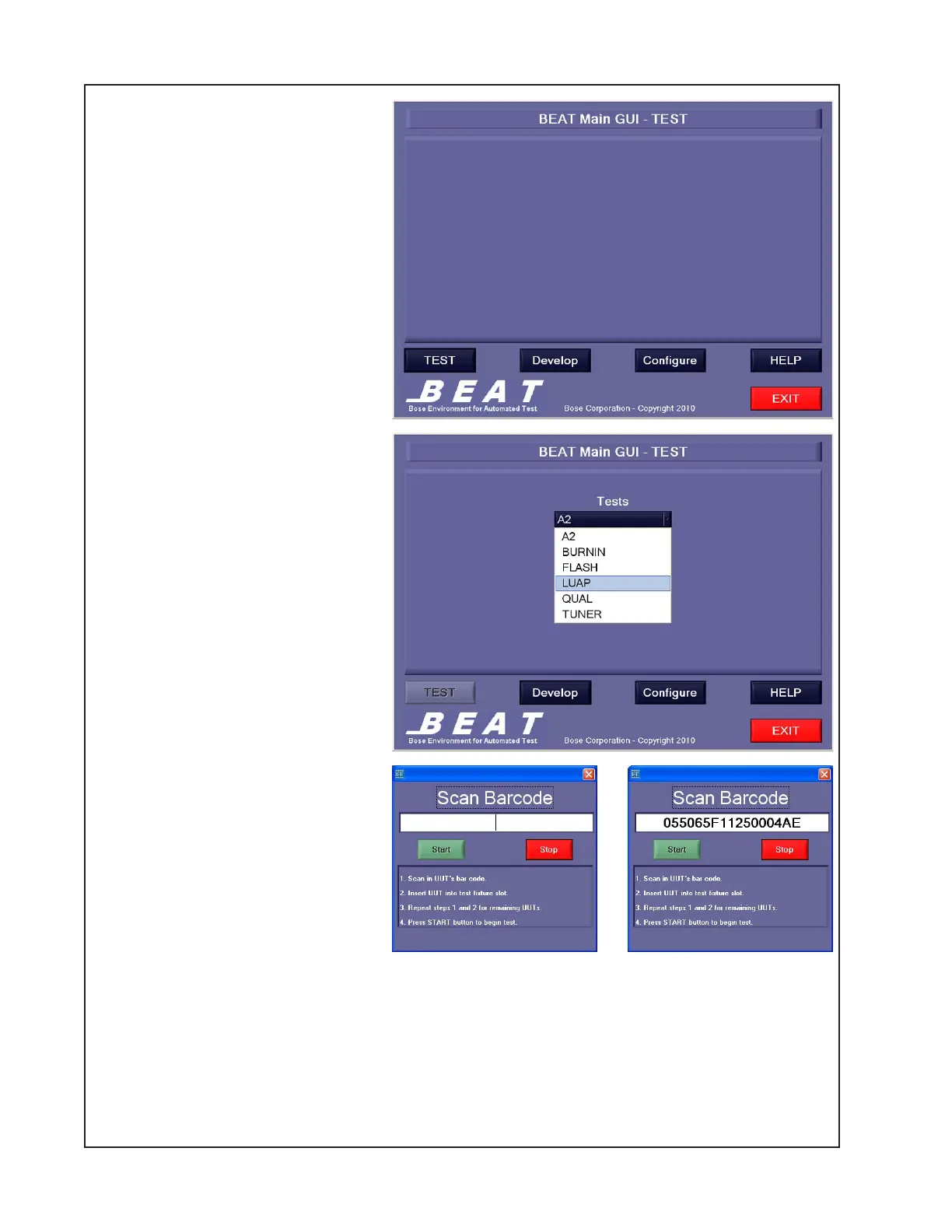

1.4 Log into the test station.
Double-click the icon for the BEAT
test program. Once that opens,
click on the TEST button located
at the lower left of the box.
A pull-down menu will appear in
the middle of the dialog box. Click
on the pull down menu and select
the LUAP (Light-up-and-Play) test.
The SCAN BARCODE dialog box
will open.
1.5 Using the hand-held scanner
on the test station, scan the
amplifier’s serial number. The
unit’s serial number is located on
the inside of the left rear rack ear.
The unit serial number will appear
in the SCAN BARCODE dialog
box.
Note: This is a semi-automated test, requiring operator input at various points during the test.
Once the test is completed, the station will display either a PASS or FAIL test result. The test
information for the unit under test will be saved in an Excel file on the test station.

Bose PowerMatch PM8500 Specifications

General

Efficiency	75 %
Amplifier class	D
Audio input channels	8 channels
Audio output channels	8.0 channels
Peak power per channel	500 W
Signal-to-Noise Ratio (SNR)	102 dB
Total Harmonic Distortion (THD)	0.1 %
USB port type	USB Type-B
Ethernet LAN data rates	100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Speakers connectivity type	-
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Purpose	Performance/stage
Cooling type	Active
On/off switch	Yes
Product color	Black
Connectivity technology	Wired
Package weight	15700 g
Operating temperature (T-T)	0 - 40 °C
LED indicators	Fault

Weight and Dimensions

Depth	525 mm
Width	483 mm
Height	88 mm
Weight	12900 g
