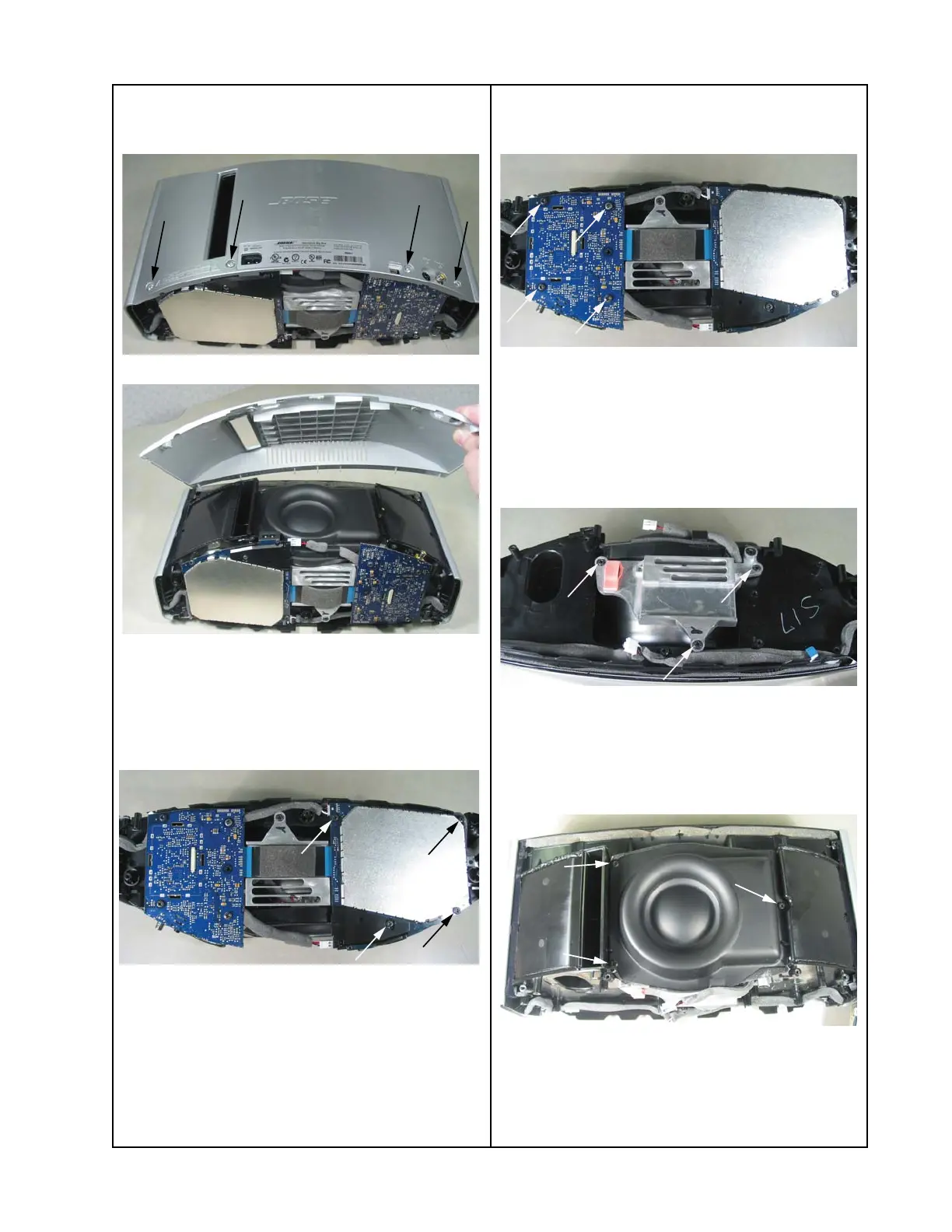

DISASSEMBLY PROCEDURE CONTINUED
3. Rear Cover Removal
3.1 Remove the four Phillips-head screws
securing the rear cover.
4. Power PCB Removal
4.1 Remove the four Phillips-head screws
from the power supply board.
5. DSP PCB Removal
5.1 Remove the four Phillips-head screws
from the DSP board.
6. Heatsink Removal
6.1 Remove the three Phillips-head screws
from the heatsink.
7. Woofer Removal
7.1 Remove the four Phillips-head screws
securing the rear cover.

Bose SoundDock 10 Specifications

General

Frequency range	- Hz
RMS rated power	- W
Audio output channels	- channels
Bluetooth	Yes
Composite video out	1
Headphone connectivity	-
FM radio	No
Apple docking compatibility	iPhone, iPod
Dimensions (WxDxH)	432 x 244 x 221 mm
Cables included	AC
Product color	Silver

Weight and Dimensions

Weight	8400 g
