PHYSICAL SETUP
Tab 6, 14 Tab 8,16Tab 7, 15English Tab 5, 13Tab4, 12Tab 3, 11Tab 2, 10

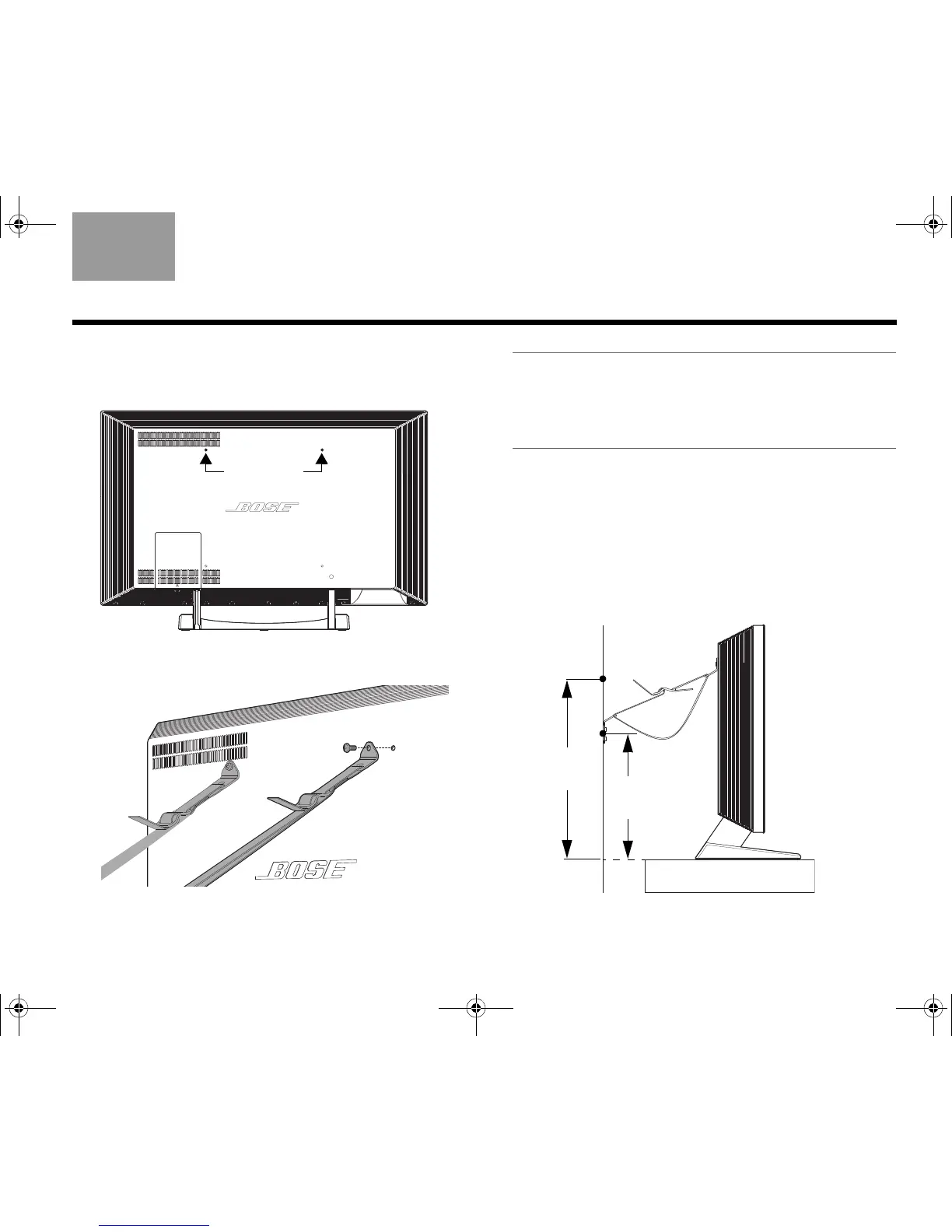

1. Using a 5/32" (4 mm) T-handle hex wrench (not
included), remove the top two bolts from the rear
panel of the monitor as indicated.
2. Using the same bolts, attach the two straps to the
back of the monitor as shown.
CAUTION: The included screws are for use only into
wood-studded wall constructions with one-inch (max.)
drywall. For all other types of wall construction, please
contact a professional installer. Use caution to avoid any
electrical or plumbing lines running through the studs.
3. Locate the two wall studs closest to the straps.
Each strap should be attached to the wall stud
closest to it.
DO NOT attach both straps to the same stud.
4. Hold the bracket on the end of each strap against
the wall 18-24 inches (46-61 cm) above the
tabletop. In the center of each wall stud, mark
the location of the two holes in the bracket.
