PHYSICAL SETUP
EnglishTab 6, 14Tab 8, 16 Tab 7, 15 Tab 5, 13 Tab 4, 12 Tab 3, 11 Tab 2, 10

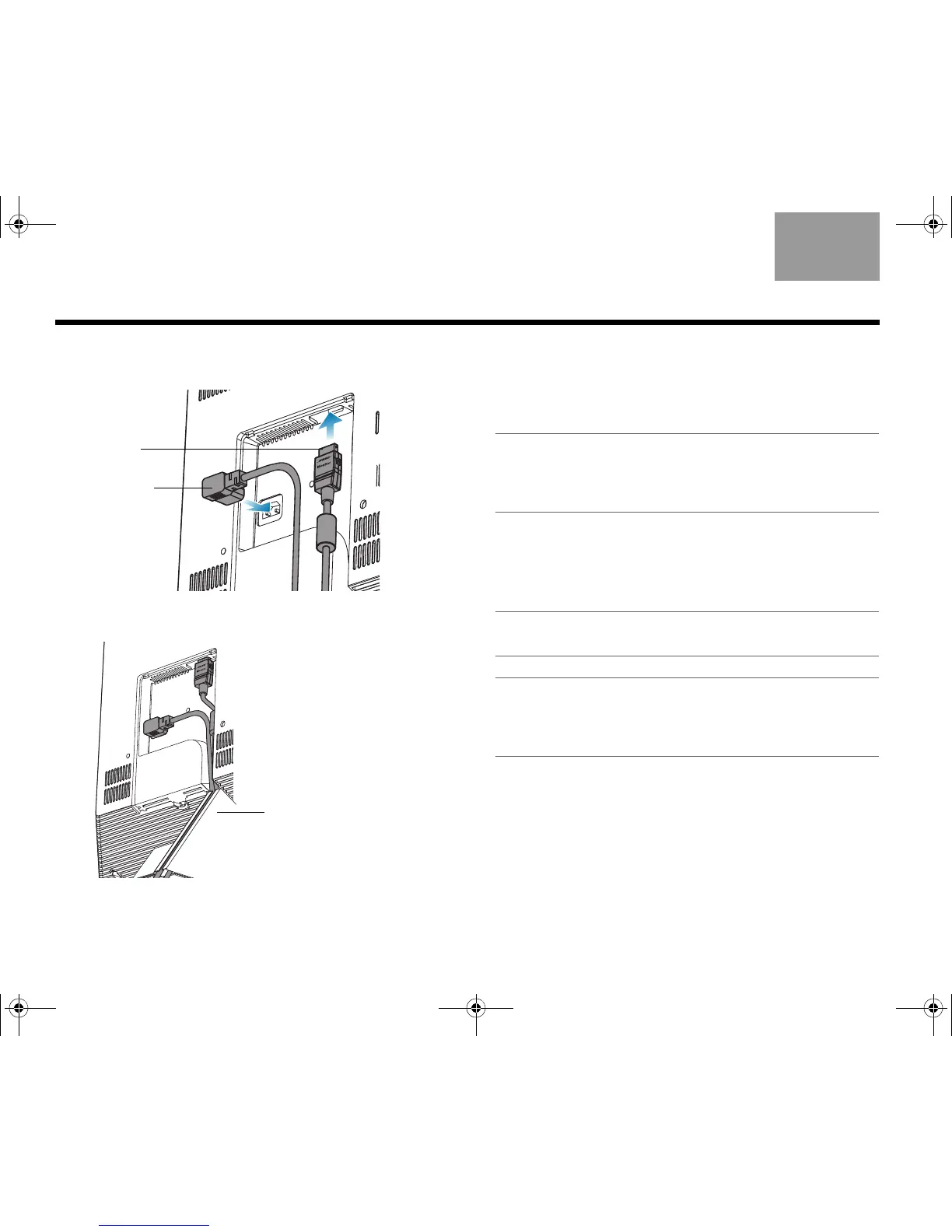

3. Attach the monitor cable and AC power cord to the
monitor as shown.
4. Route both cords through the leg of the stand and
re-attach the connector cover.
5. Plug the AC power cord from the monitor into a live
AC (mains) outlet.
6. Go to “Control console placement and connec-
tions” on page 14 to continue the physical setup.
CAUTION: Bose strongly recommends installing the
two included anti-tip straps that, when properly installed,
provide an extra measure of security in the event that the
monitor accidentally starts to tip over.
Installing the anti-tip straps
It is important that you install both straps according to
the following instructions.
WARNING: Do not use the anti-tip straps for any appli-
cation other than the one specified in this setup guide.
CAUTION: If you are unsure of the construction methods
used in your home, or if you do not understand these
instructions or have any concerns or questions, please
contact a professional installer.
