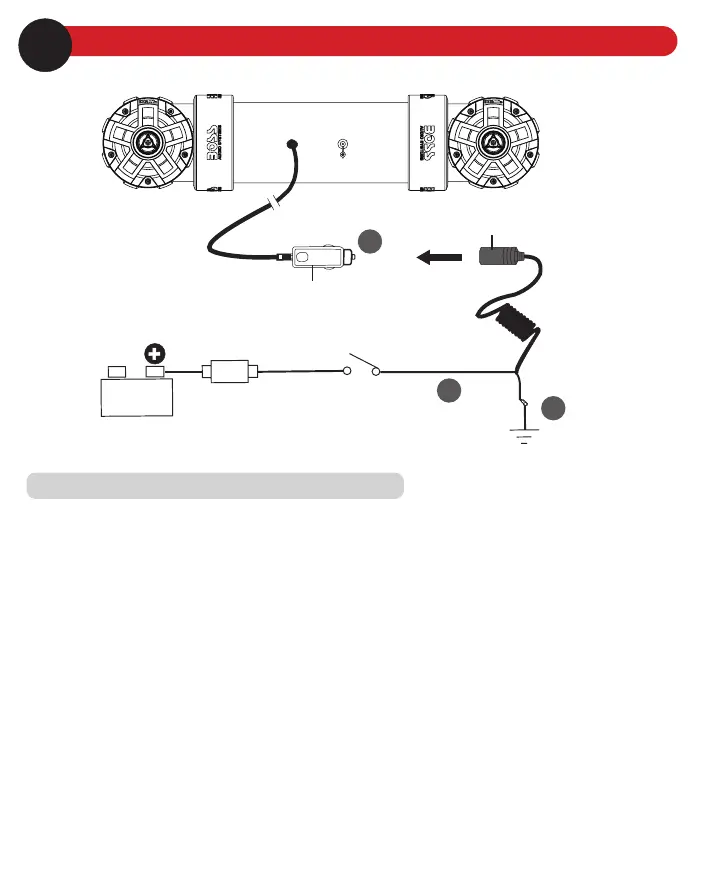

Power Connection
15A
Vehicle’s metal frame
Black wire
12V power port plug with 10A fuse
Power port plug adapter
Red wire
Battery
Fuse
(not included)
1
2
On/Off switch
(not included)
3
Option 3: Direct connection to vehicle battery
Important:
• To avoid short circuits and any resulting damage to the sound system, the negative terminal of the vehicle’s
battery must be disconnected rst.
1. Remove the plug from the supplied power port plug cable.
2. Connect the power port plug’s negative wire to the vehicle’s metal frame or to the negative battery terminal,
and the power port plug’s positive wire to the positive battery terminal.
• To prevent electrical damage, you must install 1) a 15A fuse (not included) and 2) an on/off switch
(not included) to be in line with the power wire which connects to the positive battery terminal.
• Fasten the ground wire with a bolt/screw on the metal surface. Make sure the metal surface is scraped
clean with no paint, rust or dirt.
Note:
To avoid battery drain when the sound system is not used, disconnect the sound system from the battery by
unplugging the power port cable or using the inline on/off switch (not included).
