BossWeld M150 - Side Panel Components and Polarity Settings; Side Panel Internal Components; Setting Machine Polarity for Welding

11
J
F
A
B
E
D
C
I
H
G
K

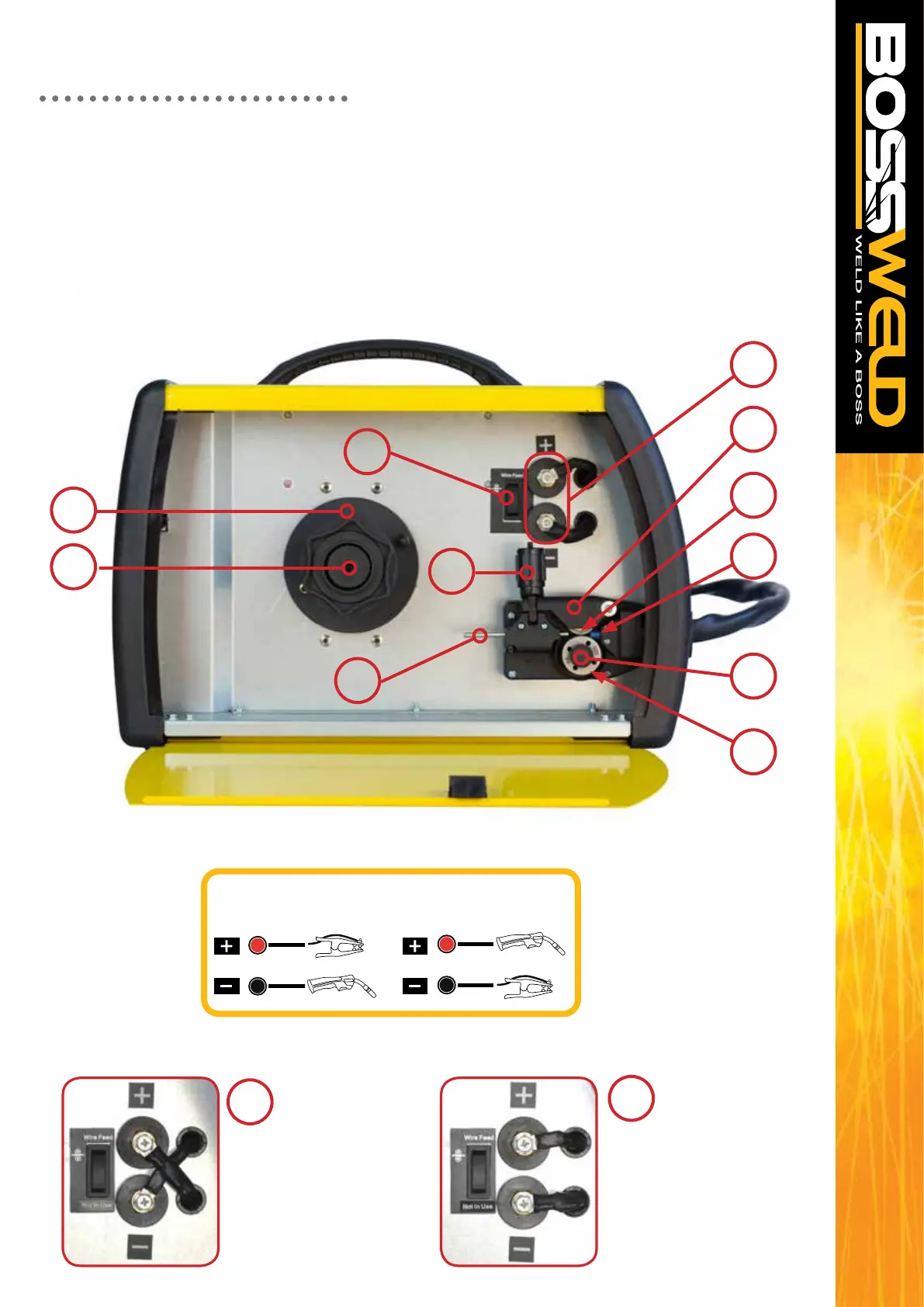

SIDE PANEL (DOOR OPEN)
A. Spool Hub
B. Spool Hub Nut
C. Drive Roller Cover
D. Drive Roller
E. Guide Tube
F. Wire Feed Tensioning Knob
G. Wire Tensioning Arm
H. Idle Roller
I. Inlet tube
J. Wire Feed inching
K Polarity Switching Terminal
D
D
DCEN
Polarity Switching Terminal
Set for Gasless Welding
DCEP
Polarity Switching Terminal
Set for Gas Welding
DCEN - GASLESS DCEP - GAS
SETTING MACHINE POLARITY
