SET UP OF WIRE SPOOL & WIRE FEED UNIT

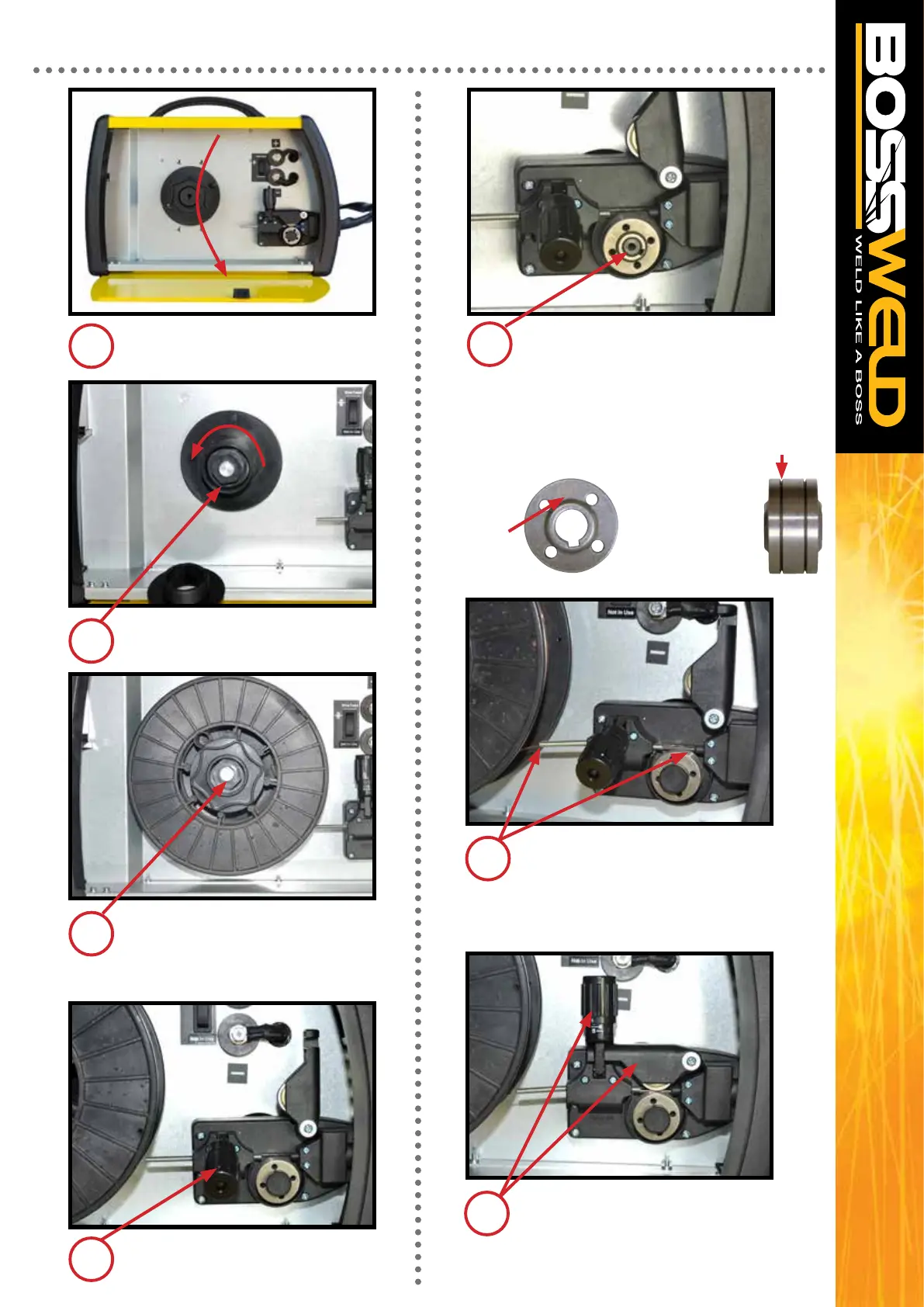

Open the side door of the machine.
Release the Wire Feed Tensioning
Knob by pulling it down.
Take the end of the wire and feed
into the Guide tube until it passes
to the Inlet Tube, and into the torch
liner Approx 3-5cm
Remove the Spool Hub Nut and
place spool of wire on Spool Hub.
Remove the Drive Roller Cover. Check
the Drive roller is matched to the wire
size for the job Note: Correct wire side
on roller to face into machine when
tting. Then replace the Drive Roller
Cover.
See Page 16 for drive roller
size and type.
Put down Wire Tensioning Arm so it
locks into position, and turn the Wire
Feed Tensioning Knob to gently
tighten.
Replace Spool Hub Nut and adjust
rmly - without too much pressure.
Note: Wire to roll from under spool
into wire feeder
Note: Pictures may vary from your machine model
Ensure you hold the spool and check
tension to stop wire spool unraveling
1
5
2
3
4
7
6
Roller Groove
V Groove - Mild Steel
U Groove - Aluminium
V-knurled - Gasless Wire
Drive roller
size (mm)
* Gasless Drive roller has a jagged groove
