16
Set up the wire feed unit as per section
“Set up Wire Feed Unit”.
* Gasless Drive roller has a jagged groove

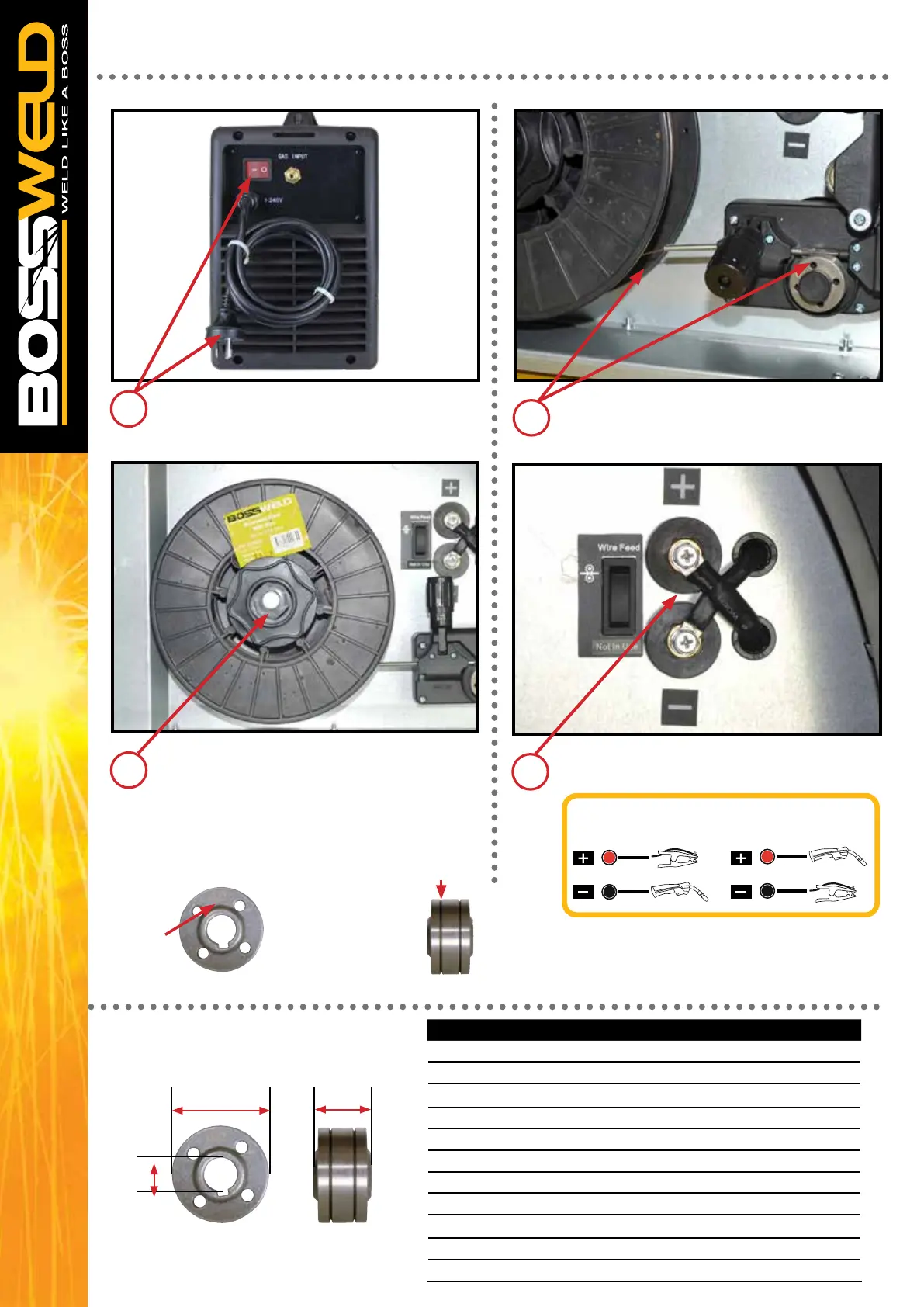

MACHINE SET UP GASLESS MIG WELDING
DCEN - GASLESS DCEP - GAS
SETTING MACHINE POLARITY
Open wire feed side panel and install Gasless
wire into machine ensuring the drive roller is
matched to the wire size and type. Refer to
“Drive Feed Roller Selection’’ on page 16
Note: Wire to roll from under spool into wire
feeder
3
2
Plug the machine 15Amp input power lead into
the wall socket, e
nsuring that the power
switch on the machine is in the OFF position.
1
Ensure the polarity is correct for gasless
welding, DCEN
4
Roller Groove
V Groove - Mild Steel
U Groove - Aluminium
V-knurled - Gasless Wire
Drive roller
size (mm)
MACHINE DRIVE ROLLER SIZE (NOTE: MACHINE WILL RUN UP TO 1.0MM WIRE)
30mm
19mm
* Denotes driver rollers supplies with machine
PART NO. DESCRIPTION
Knurled Drive Roller For Gasless Wire
RK301019.06.08 Drive Roller 0.6/0.8mm Knurled 30 x 10 x 19mm
RK301019.08.09
*
Drive Roller 0.8/0.9mm Knurled 30 x 10 x 19mm
RK301019.08.10 Drive Roller 0.8/1.0mm Knurled 30 x 10 x 19mm
U Grooved Drive Roller For Aluminium Wire
RU301019.08.10 Drive Roller 0.8/1.0mm U Groove 30 x 10 x 19mm
V Grooved Drive Roller For Solid Wire
RV301019.06.08 Drive Roller 0.6/0.8mm V Groove 30 x 10 x 19mm
RV301019.08.09
*
Drive Roller 0.8/0.9mm V Groove 30 x 10 x 19mm
RV301019.08.10 Drive Roller 0.8/1.0mm V Groove 30 x 10 x 19mm
RV301019.09.10 Drive Roller 0.9/1.0mm V Groove 30 x 10 x 19mm
Correct wire side on roller to face into
machine when tting.
10mm
• Gasless Drive roller has a jagged groove
