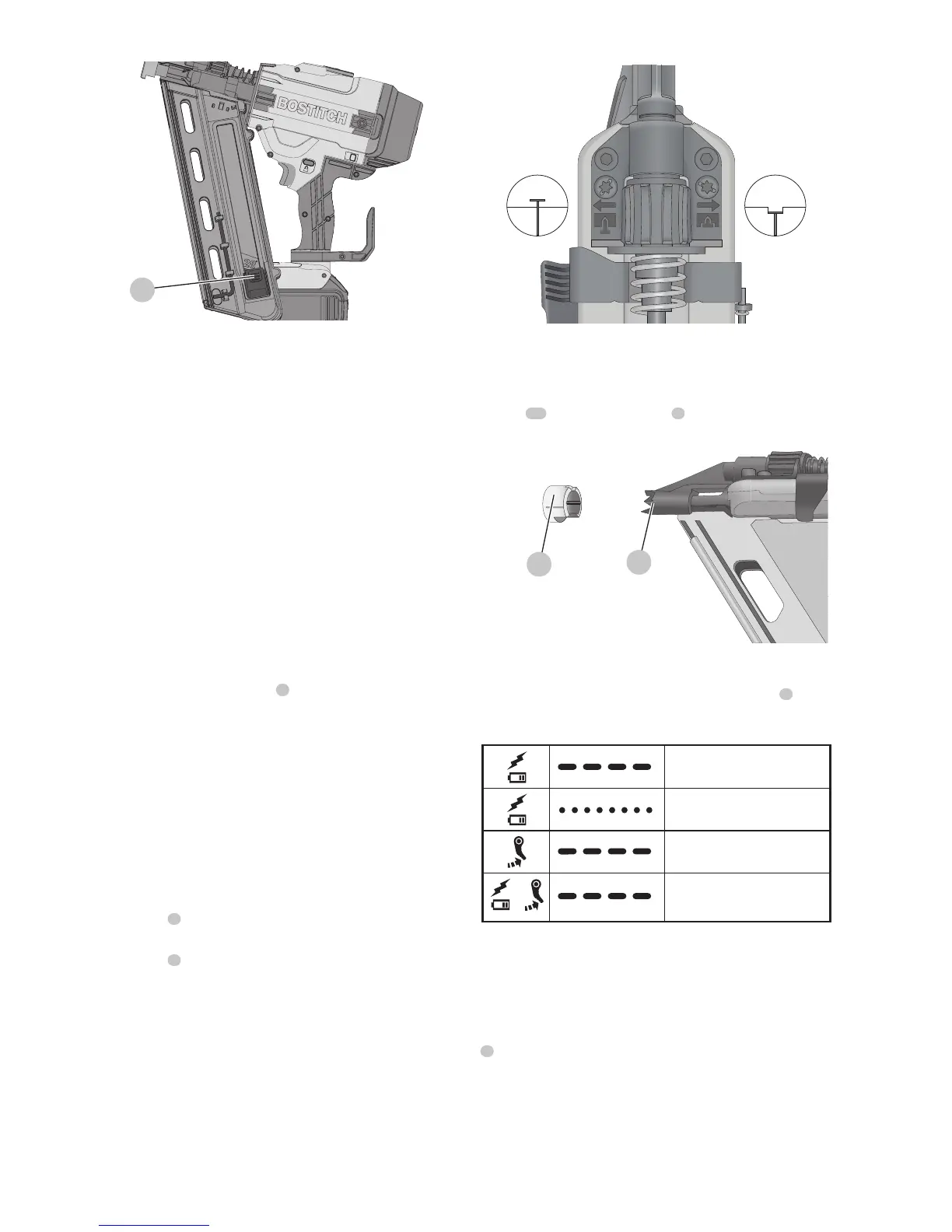

Fig. J
Unloading The Tool

WARNING: The battery should always be removed
and the trigger lock-off engaged whenever any
adjustments are made or when tool is not in use.
1. Slide the spring-loaded pusher latch to the base of the
magazine to lock it into place.
2. Tip the tool up until the fastener strip slides freely out of
the magazine.
3. With battery removed, check the nosepiece to verify
there are no nails remaining.
NOTE: The tool is equipped with a magnet in the nose
area for improved tool performance. When unloading,
always verify that the small sticks of nails are not held to the
magnetized nose piece.
Adjusting Depth
The depth that the nail is driven can be adjusted using
the depth adjustment wheel
3
on the nose of the tool as
shown in FigureK.

WARNING: To reduce risk of serious injury from
accidental actuation when attempting to adjust
depth, ALWAYS:
• Remove battery pack.
• Engage trigger lock-off.
• Always point the nose of the nailer away from
you.
• Avoid contact with trigger during adjustments.
1. To drive the nail shallower, rotate the depth adjustment
wheel
3
to the left, toward the shallow nail icon.
2. To drive a nail deeper, rotate the depth adjustment
wheel
3
to the right, toward the deeper nail icon.
Fig. K
No mar Tip
When using this tool on softer materials that you do not
want to mark, such as wood cladding, use the plastic non-
mar tip
15
over the contact trip
6
as shown in FigureL.
6
15
Fig. L
LED Indicator
There is an low battery and jam/stall indicator light
4
located on the back of the tool just below the back cap. See
the chart below to decode the flash patterns.
+
LOW BATTERY
Replace battery with a charged pack.
HOT PACK
Let the battery cool or replace it
with a cool pack.
JAM/STALL CONDITION
Rotate the stall release lever to
release. Refer to Stall Release.
HOT TOOL
Let the tool cool down before
continuing use.
Stall Release
If the nailer is used in harder wood where all available
energy in the motor is used to drive a fastener, the tool may
stall. The driver blade will not complete the drive cycle and
the jam/stall indicator will flash. Rotate the stall release lever
5
on the tool and the mechanism will release as shown in
FigureM.
NOTE: The tool will disable itself and not reset until the
battery pack has been removed and reinserted. If the driver
blade does not automatically return to the home position,
