7 - ENG
RISK OF SERIOUS INJURY OR PROPERTY DAMAGE
WHEN TRANSPORTING COMPRESSOR
WHAT CAN HAPPEN HOW TO PREVENT IT
• Oil can leak or spill and could result
in fire or breathing hazard; serious
injury or death can result. Oil leaks
will damage carpet, paint or other
surfaces in vehicles or trailers.
• Always place compressor on a
protective mat when transporting to
protect against damage to vehicle
from leaks. Remove compressor
from vehicle immediately upon arrival
at your destination.

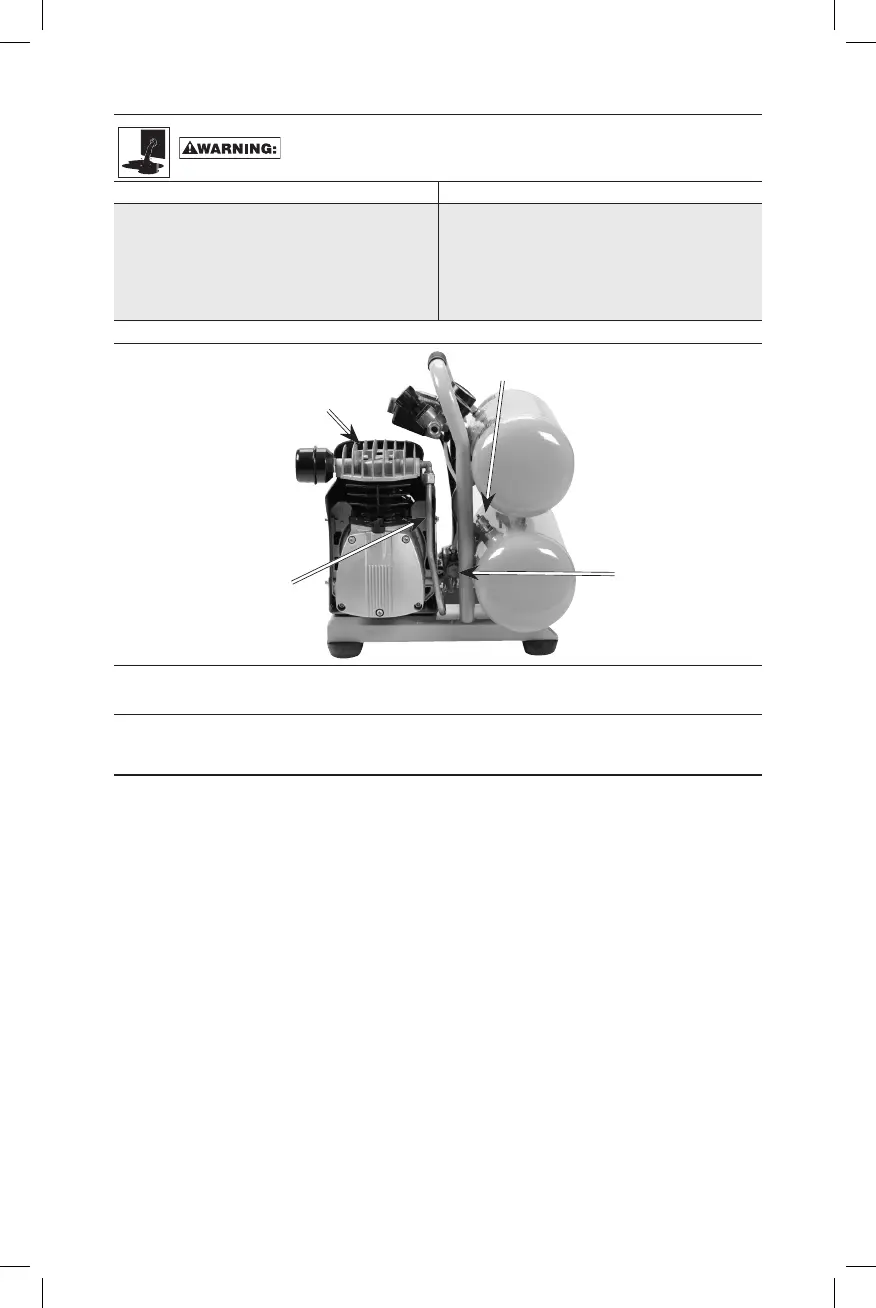

HOT SURFACES
CHECK
VALVE
SAFETY VALVE
PUMP CYLNDER
AND HEAD
OUTLET TUBE
SAVE THESE INSTRUCTIONS
FOR FUTURE USE
SPECIFICATIONS
Model No. CAP2041ST-OL
Voltage/Amps/Hz-Single Phase 120/14A/60
Minimum Branch Circuit Requirement 15 amps
Fuse Type Time Delay
Air Tank Capacity 4 Gallon (15.1 liters)
Pump Oil Capacity 10.6 oz. (313.5 mL)
Approximate Cut-in Pressure 105 psig
Approximate Cut-out Pressure 135 psig
SCFM @ 40 psig 4.9 *
SCFM @ 90 psig 3.8 *
Weight 58.4 lbs (26.5 kg)
*Tested per ISO 1217
Refer to Glossary for abbreviations.
