Bostitch MCN150 User Manual

OPERATING YOUR MCN NAILER
TO AVOID SERIOUS INJURY FROM FASTENERS AND FLYING DEBRIS WHEN INSTALLING
METAL CONNECTORS USING THE MCN NAILER:
• Use only genuine BOSTITCH metal connector nails.
• Metal connector nails are not designed to penetrate metal. When installing metal connectors,
always place the exposed point of the metal connector nail into the metal connector’s pre-formed
hole, and orient so the nail is perpendicular to the hole before attempting to drive a fastener.
9

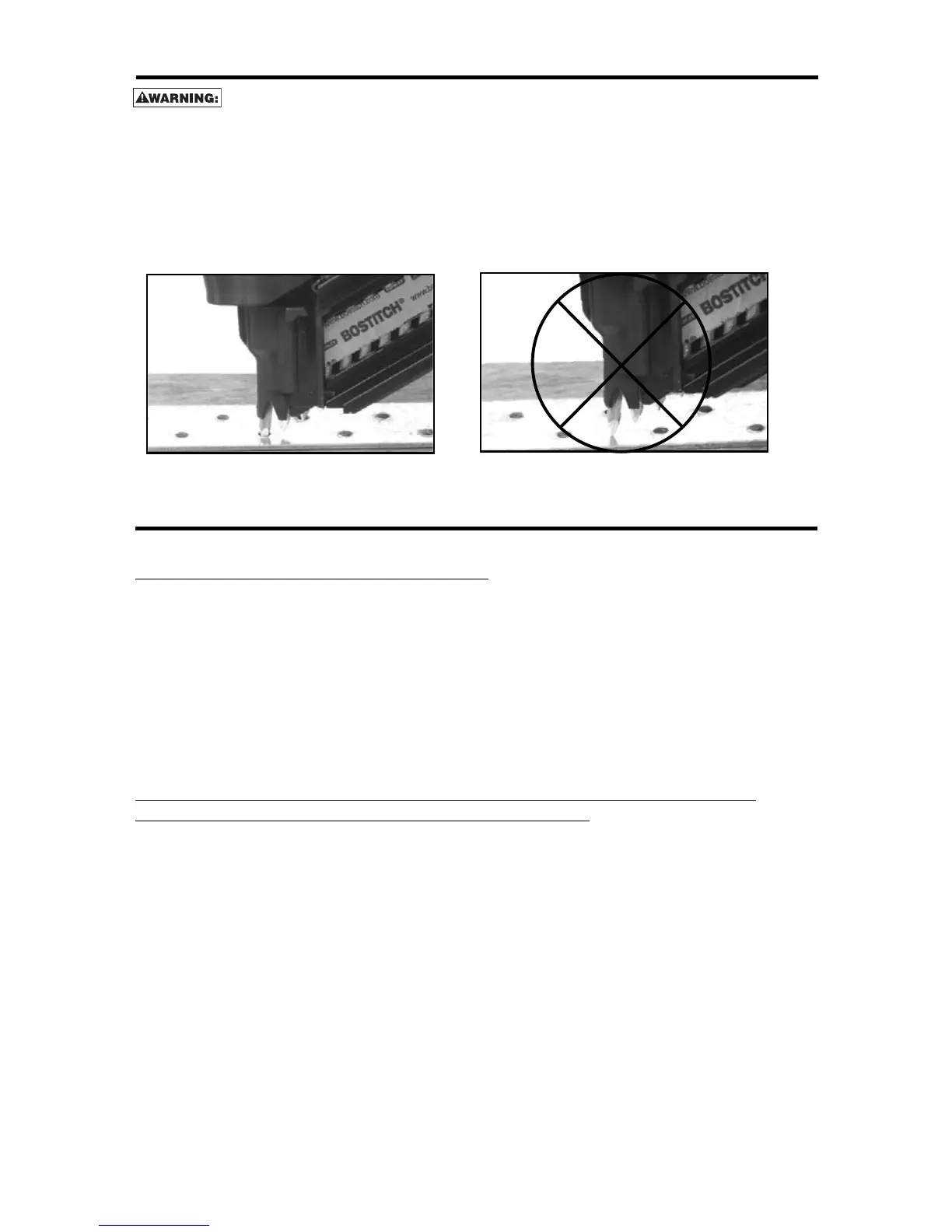

CORRECT
Placement of nail
INCORRECT
Placement of nail
TOOL OPERATION CHECK:
CAUTION: Remove all fasteners from tool before performing tool operation check.
SEQUENTIAL TRIGGERING OPERATION:
A. Press the moveable nose against the work surface, without touching the trigger.
THE TOOL MUST NOT CYCLE.
B. Hold the tool off the work surface and pull the trigger.
THE TOOL MUST NOT CYCLE.
Release the trigger. The trigger must return to the trigger stop on the frame.
C. Pull the trigger and press the moveable nose against the work surface.
THE TOOL MUST NOT CYCLE.
D. With finger off the trigger, press the moveable nose against the work surface. Pull the trigger.
THE TOOL MUST CYCLE.
IN ADDITION TO THE OTHER WARNINGS CONTAINED IN THIS MANUAL
OBSER
VE THE FOLLOWING FOR SAFE OPERATION
• Use the BOSTITCH pneumatic tool only for the purpose for which it was designed.
• Never use this tool in a manner that could cause a fastener to be directed toward the user
or others in the work area.
• Do not use the tool as a hammer.
• Always carry the tool by the handle. Never carry the tool by the air hose.
• Do not alter or modify this tool from the original design or function without approval
from BOSTITCH.
• Always be aware that misuse and improper handling of this tool can cause injury to
yourself and others.
• Never clamp or tape the trigger in an actuated position.
• Never leave a tool unattended with the air hose attached.
• Do not operate this tool if it does not contain a legible WARNING LABEL.
• Do not continue to use a tool that leaks air or does not function properly. Notify your
nearest BOSTITCH representative if your tool continues to experience functional problems.

Bostitch MCN150 Specifications

General

Type	Metal Connector Nailer
Magazine Capacity	29
Operating Pressure	70 - 120 psi
Fastener Type	Metal Connector Nails
Power Source	Pneumatic
Fastener Range	1-1/2 inches
Fastener Diameter	0.148"
