User Manual DR-512
12. CARD key :
to switch between the operations for internal storage and the CF card storage. Relevant
LED “on” means CF card operation is available, while LED “off” means internal
operation is available.
13. SHUTDOWN key :
to activate the SHUTDOWN function. (read through the manual for details)
14. / 15. / 16. PLAY / PAUSE / STOP keys :
these three keys are used for the flow control. By pushing one of these keys a
chosen sequence can be started, stopped, or finished. How the keys react in the
different modes and what other functions are executed is explained in detail in the
chapter of the modes.
17. RECORD key :
in the PROGRAM mode, the recording of a new sequence can be prepared with the
RECORD key. In order to do so, user should choose a sequence, then push the
RECORD key and start the recording with the PLAY or PAUSE key.

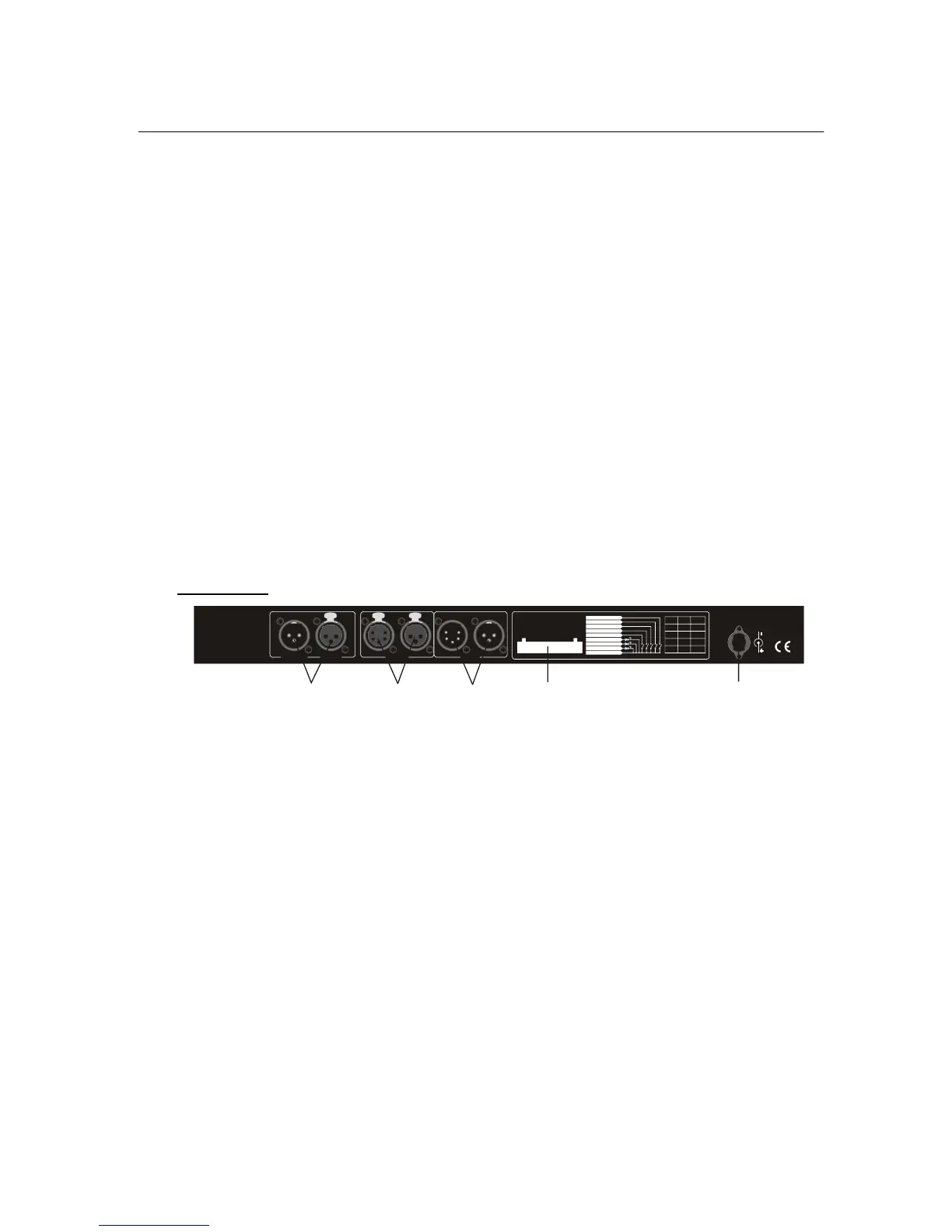

4.2 Rear Panel
PUSH PUSHPUSH
SMPTE OUT SMPTE IN DMX OUT
DMX IN
Made in PRC
DC INPUT:
9-12VDC, 500mA Min
1 PL AY
2 SE Q A
3 SE Q B
4 STO P
5 RE COR D
6 PR G-M ODE-L ED
7 RECORD-LED
8 PL AY-LE D
9 GND
123456789
Num
I01
I02
E01
E02
Seq A
0
0
1
1
Seq B
0
1
0
1
1
2
3
4
5
1. SMPTE output / input :
To output / input SMPTE signals via this port.
2. DMX output
(5pin / 3pin) :
To output relative DMX signals.
3. DMX input
(5pin / 3pin) :
To input relative DMX signals.
4. Terminal connector :
To connect with external terminals.
5. DC input :
To plug in an external power supply (DC 9-12V, 500 mA Min).
5
