3.1. Controls and indicators

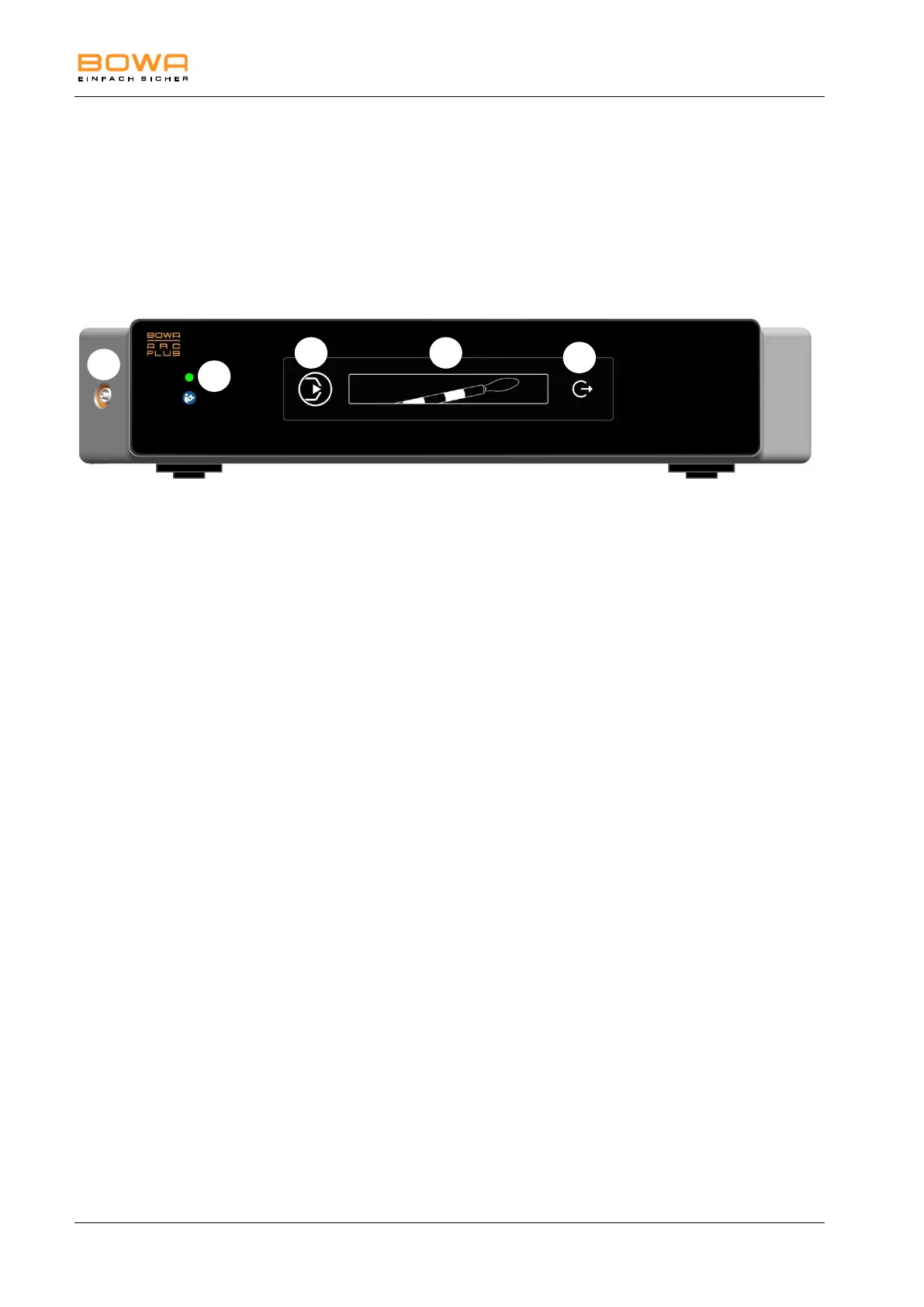

3.1.1. Front panel controls and indicators
1
Luer Lock gas connector;
for argon instruments only
2
Operating state
indicator
Off: Device switched off or
no power connection
Orange: Sleep mode
Green: Standby mode
3
Purge button
White: Standby mode
Green: Purging
4
Gas status indicator
White: Self-test
Green: Purging
Yellow: Cutting
Blue: Coagulating
Red: Fault condition
5
Fault indicator
Red: Fault
