Bowa ARC PLUS - Rating Label; Components Required for Operation; Operating Conditions

3 Description
22 ARC PLUS Operating Manual 900-001_IFU_V1.0_11270-S0-20130118-EN
3.2.1. Rating label

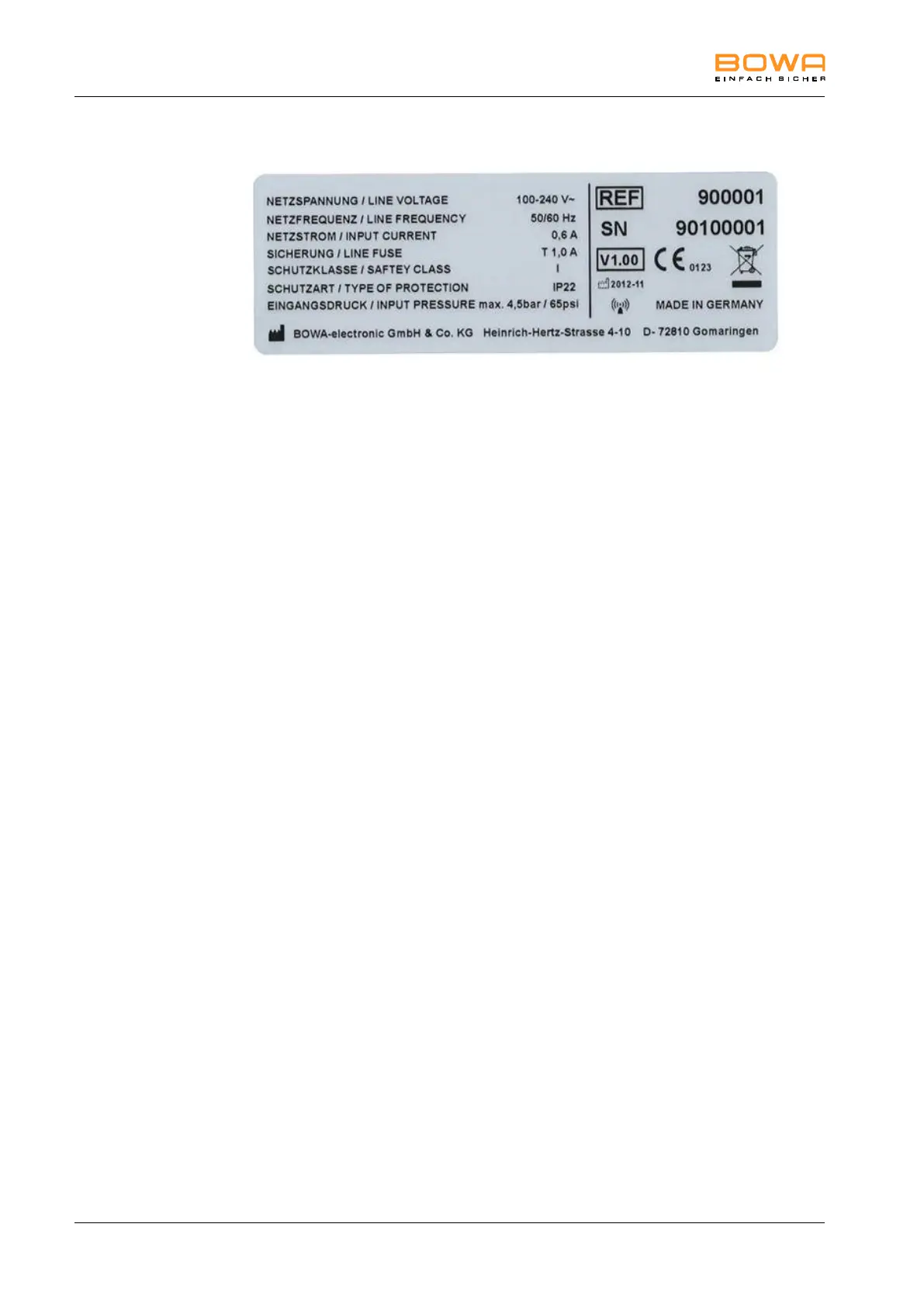

Figure 3-1: ARC PLUS rating label
3.3. Components required for operation
 Power cable
 Filled argon gas bottle with pressure reducer
 Argon interconnect cable for rigid or flexible argon electrodes
 Rigid or flexible argon electrodes
 Two fibre optic cables
 HF generator, including Argon option
 Neutral electrode (connected to HF device)
3.4. Operating conditions
Temperature +10 to +40°C
Relative humidity 30 to 75%, non-condensing
Atmospheric pressure: 700 to 1600 hPa
Max. operating elevation: ≤ 4000 m
