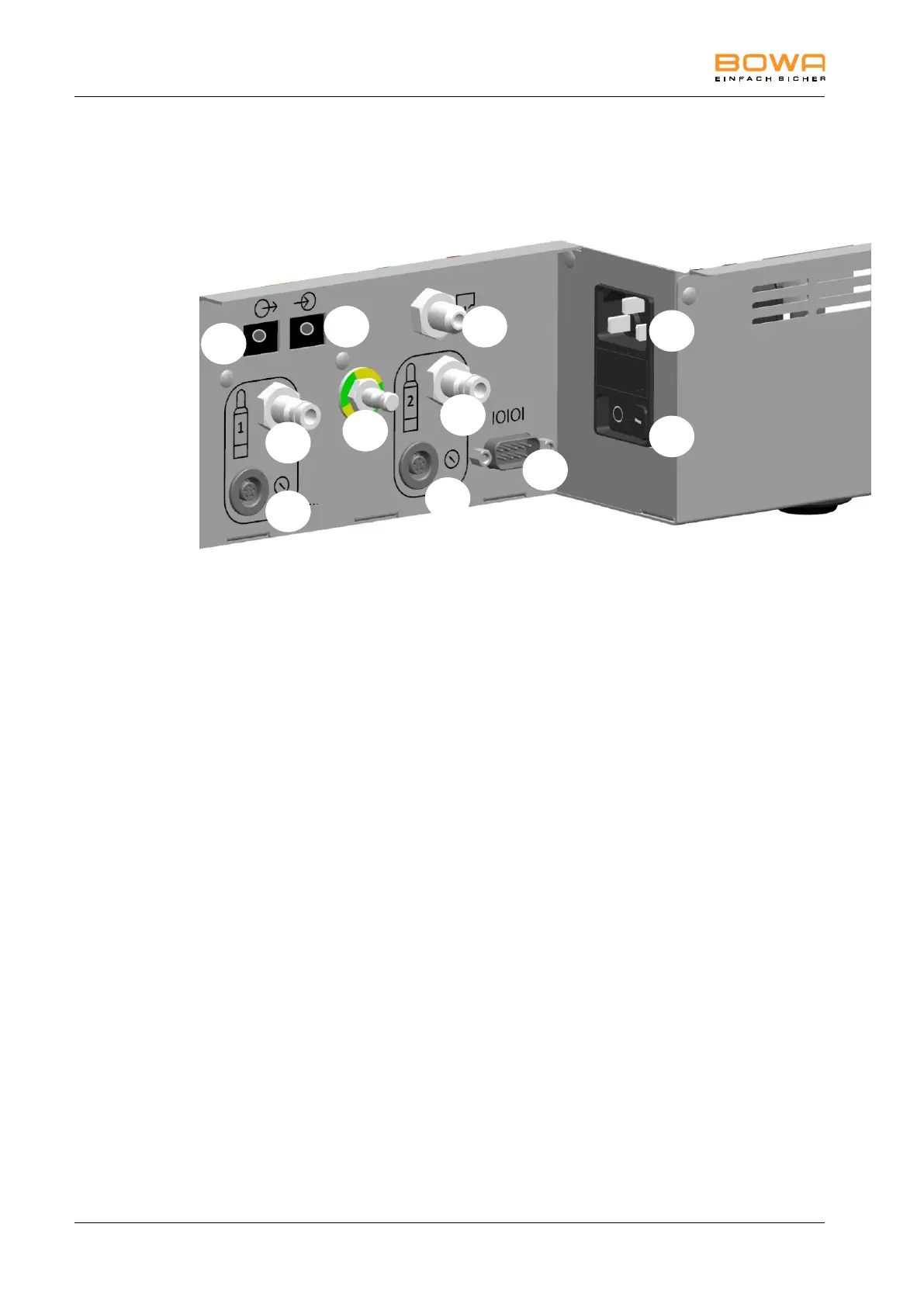

3.1.2. Rear panel controls and connectors
6
Fibre optic signal output connector
7
Fibre optic signal input connector
8
Equipotential bonding terminal
9
Bleed stub for pressure reducer connection hose
10
IEC chassis-mount power connector
11
Connector for electronic pressure sensor (gas bottle 1)
12
Connector for pressure reducer (gas bottle 1)
13
Connector for electronic pressure sensor (gas bottle 2)
14
Connector for pressure reducer (gas bottle 2)
15
UART Serial communication port
16
Power switch
10
8
9
7
6
16
15
14
13
12
11
