2. Operating Instructions
2.1 User Interface Components

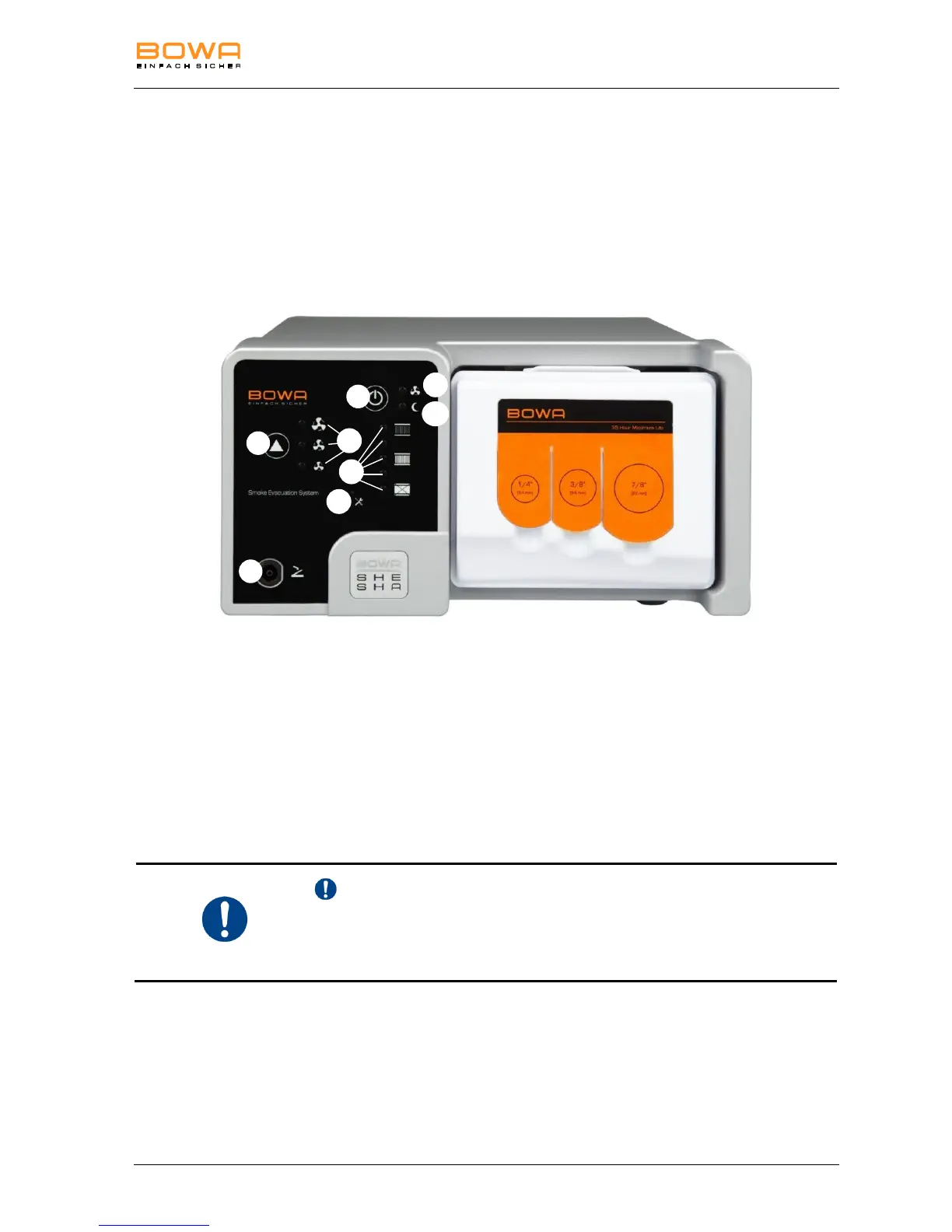

The electronic system controls on the SHE SHA Smoke Evacuation System are easy to understand
and simple to use. The membrane control panel contains the suction on/off switch, suction power
adjustment, filter life indicator, and service indicator light.
1.
ON/OFF button
2.
Orange Standby LED
3.
Green fan ON LED
4.
Speed Select Button
5.
Suction Levels LED
6.
Filter Life Indicator LED
7.
Service LED
8.
Foot switch socket
NOTE
Please be sure to read all instructions before installing accessories or
operating this equipment. Failure to do so may result in damage to the unit
and /or personal injury.
1
3
2
4
5
8
6
7
