P21/P26/P30

3. View of the Machine 3.

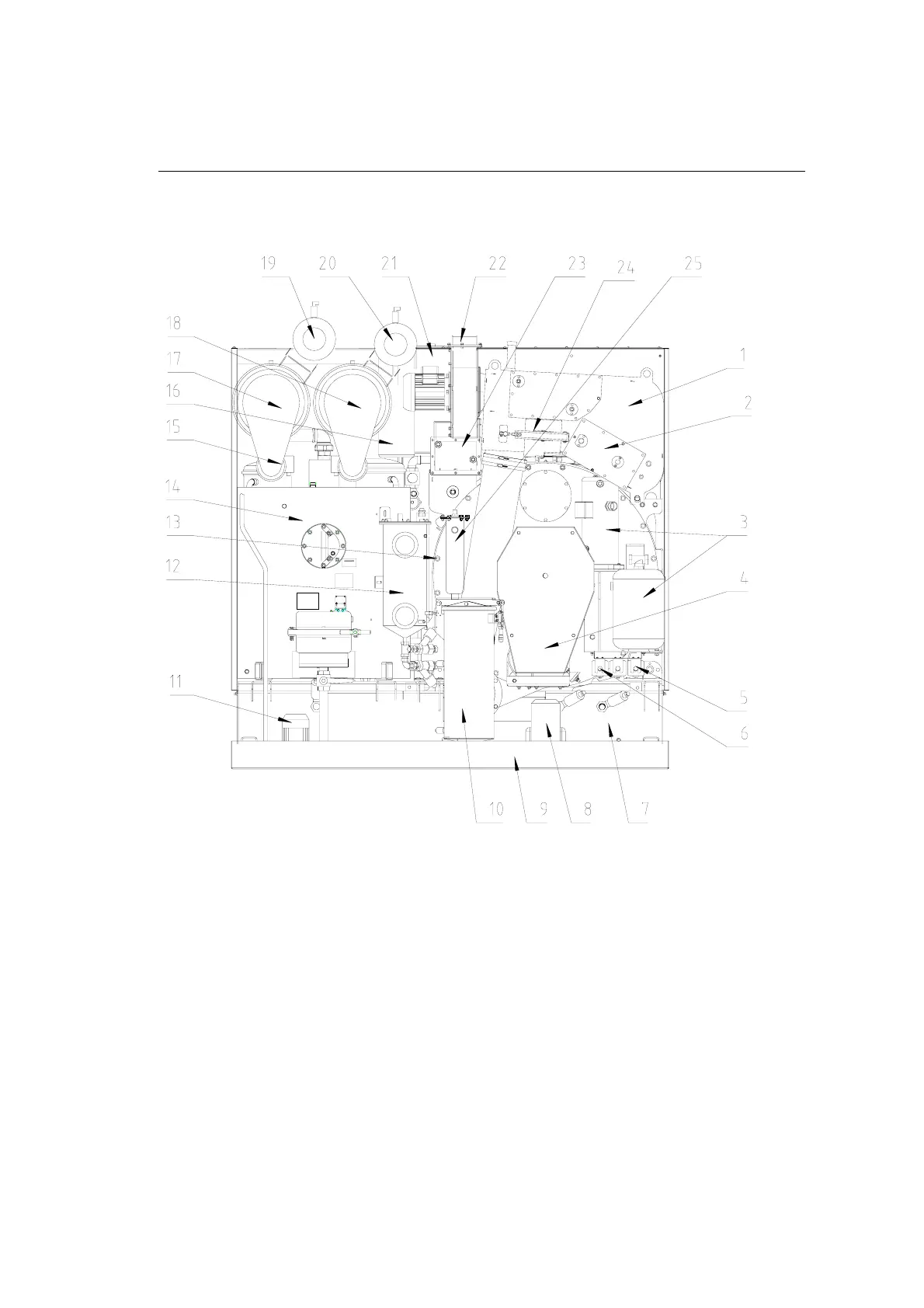

3.2 Rear of the Machine 3.2

707761-11-0

1 Airshaft 13 Cage housing with cage

2 Cooling register 14 Still

3 Refrigeration unit 15 Filter drive

4 Cage drive 16 Condenser

5 Dosing unit 17 Economy filter 1

6 Sprayer * 18 Economy filter 2 *

7 Tanks 1, 2, 3 19 Adsorption cartridge filter 1*

8 Solvent pump 20 Adsorption cartridge filter 2*

9 Safety trough 21 Venting and aeration filter

10 Button trap with lint filter 22 Fan

11 Still rake out system pump * 23 Heater battery

12 Water separator and safety separator 24 Lint post-filter

25 Solvent cooling system *

* Option
