59
P21/P26/P30
11. Maintenance 11.

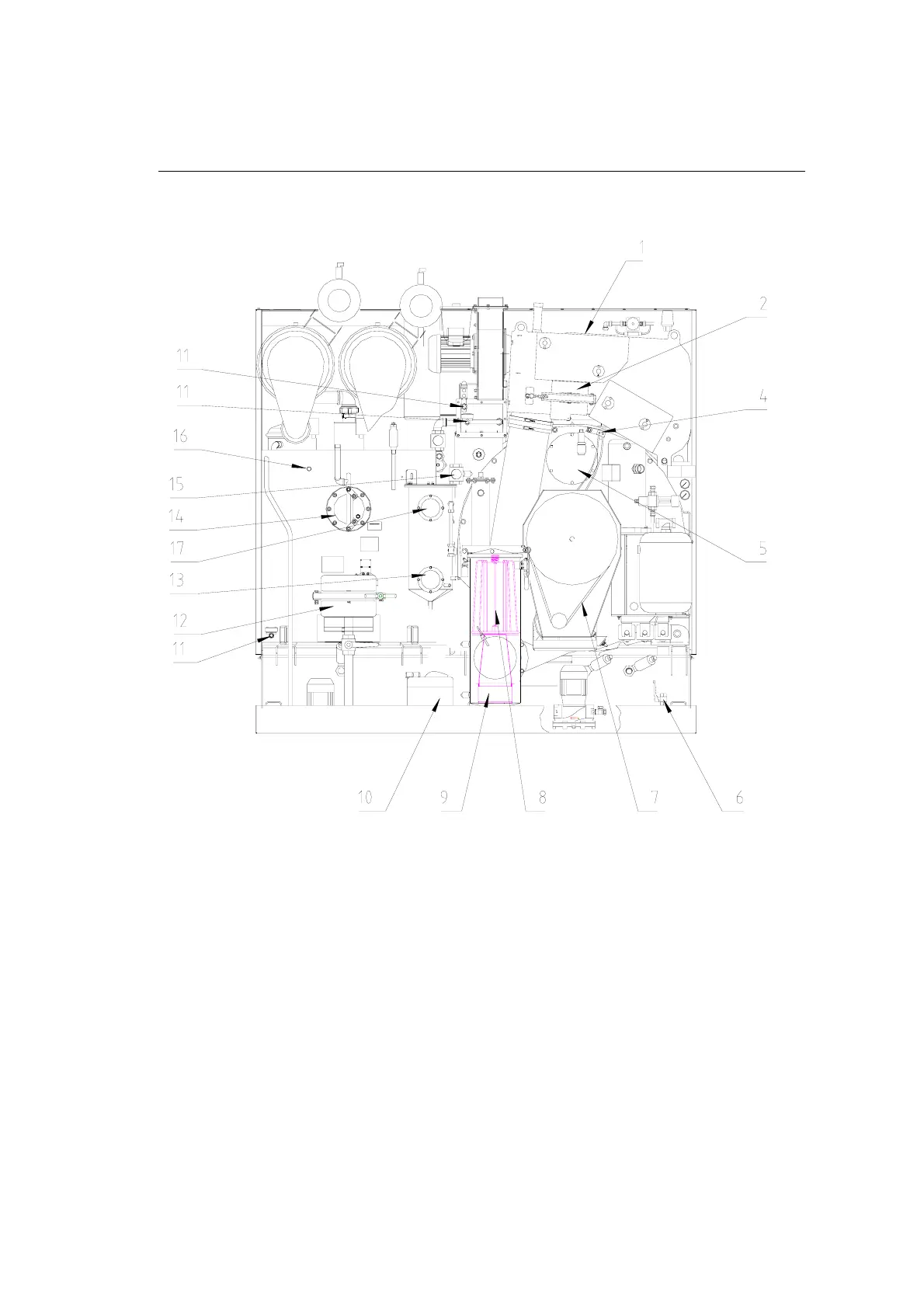

11.2 Maintenance Points 11.2
707760-18-0
1 Inspection cover, airshaft 14 Sight-glass, still
2 Lint post-filter 15 Drying time controller
16 Gas displacement line connection
4 Grease nipple, cage 17 Sight-glass, water separator
5 Inspection cover, cage flange
6 Solvent filling valve
Additional maintenance points:
7 V belt - Overfill sensor, disposal vessel
8 Lint filter
9 Button trap strainer
10 Process water collecting tank
11 Strainer
12 Still rake-out door
13 Sight-glass, safety separator
