P21/P26/P30
7. Functional Units 7.
7.11 Airshaft 7.11

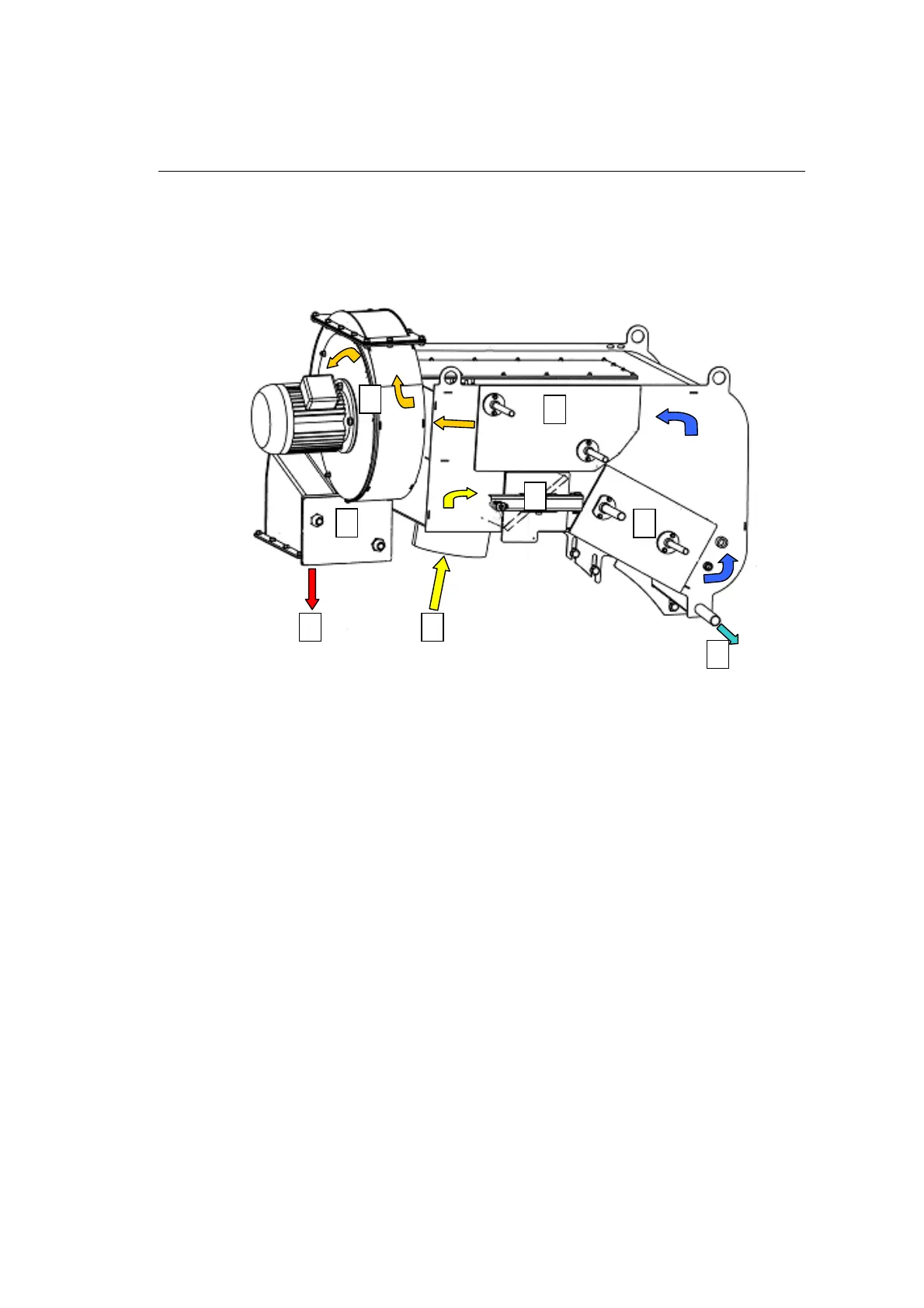

An additional lint filter, refrigeration unit and fan, with housing, are integrated in the
airshaft.
Luftschacht Rück.jpg
1 Additional lint filter
2 Intense cooling unit
4 Pre-heater
5 Fan with housing
6 Heater battery
7 Solvent recovery
8 Air inlet
9 Air outlet
7.11.1 Refrigeration unit
Refrigeration technology is used to cool the air cooler in the airshaft and, in special cases
(optional equipment), for cooling the solvent. The low aftercooler temperature of the air cooler
reduces the solvent residue concentration in the cage and the solvent emissions.
The heated gas that arises in the cooling compressor (heat pump principle) is fed through the
pre-heater. The energy consumed for drying is considerably reduced because the thermal energy
is fed back.
The air cooler is specially coated as protection against corrosion.
1
4
2
6
5
7
9 8
