BÖWE P26 - 10 Operating and Monitoring Systems

54
P21/P26/P30
10. Operating and Monitoring Systems 10.
707760-16-0

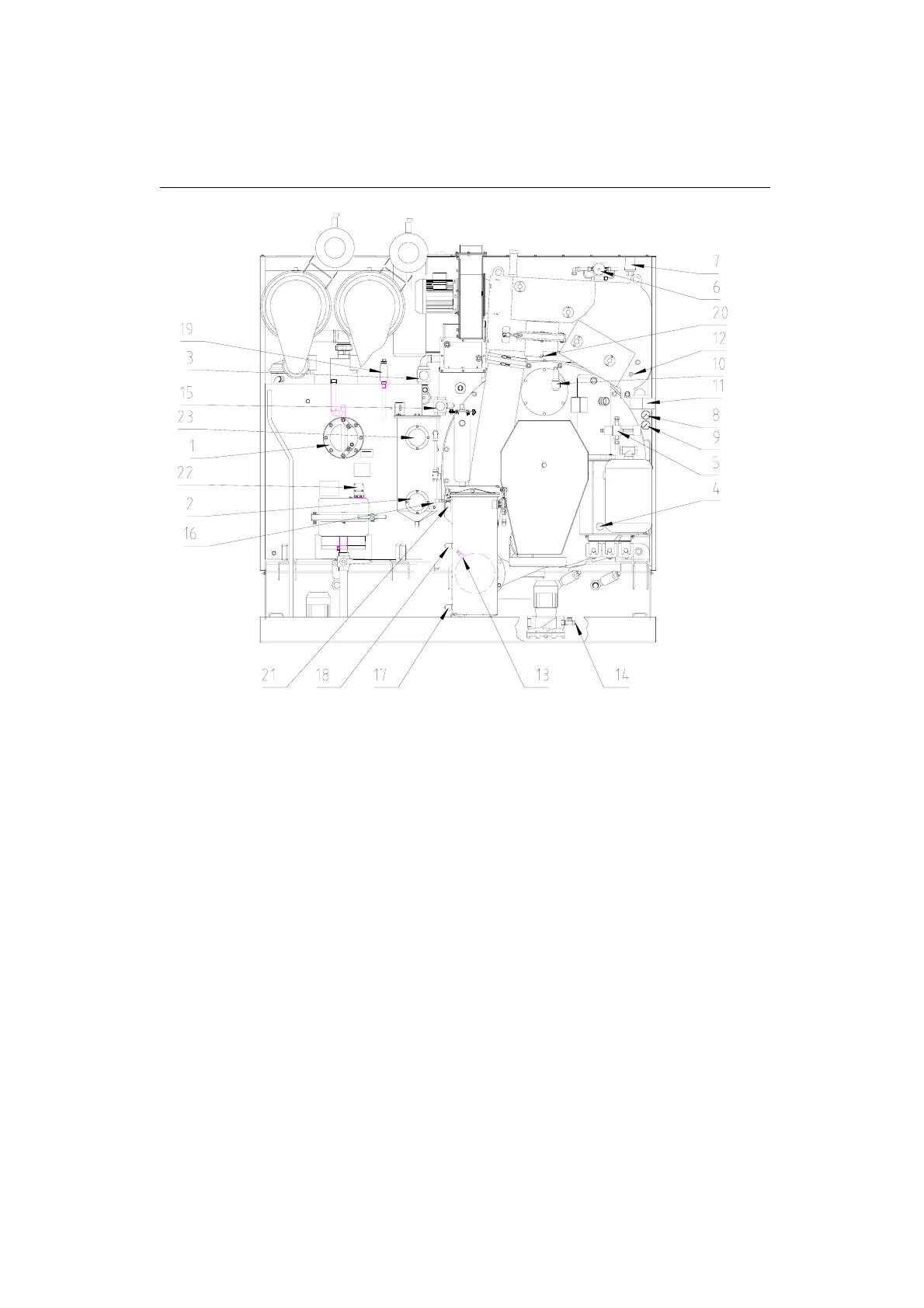

1 Sight-glass, still
2 ** Sight-glass, safety separator 20
Limit switch, lint post filter
3 Sight-glass inlet to water separator 21
Limit switch, button trap
4 Sight-glass, refrigeration unit 22
Limit switch, still
5
Cooling water regulator, refrigeration unit
23
Sight-glass, water separator
6
Cooling water regulator, distillation
7 Low cooling water level switch
8
Low pressure gauge (refrigerating)
9
High pressure gauge (refrigerating)
10 Pressure relief valve, machine
11 High and low pressure controls,
refrigeration unit
12 Thermal sensor, aftercooler
13 Thermal sensor, cage housing outlet
14 * Thermal sensor, solvent
15 Drying time controller
16 **
Overfill sensor, safety separator
17 Sensor, low level
18 Sensor, high level *
Option
19 **
Overfill sensor, distillation ** Only on machines that conform to the
EN ISO 8230 standard
