Bowflex BXE216 - Pedal and Final Assembly Steps

Assembly / Owner’s Manual
17

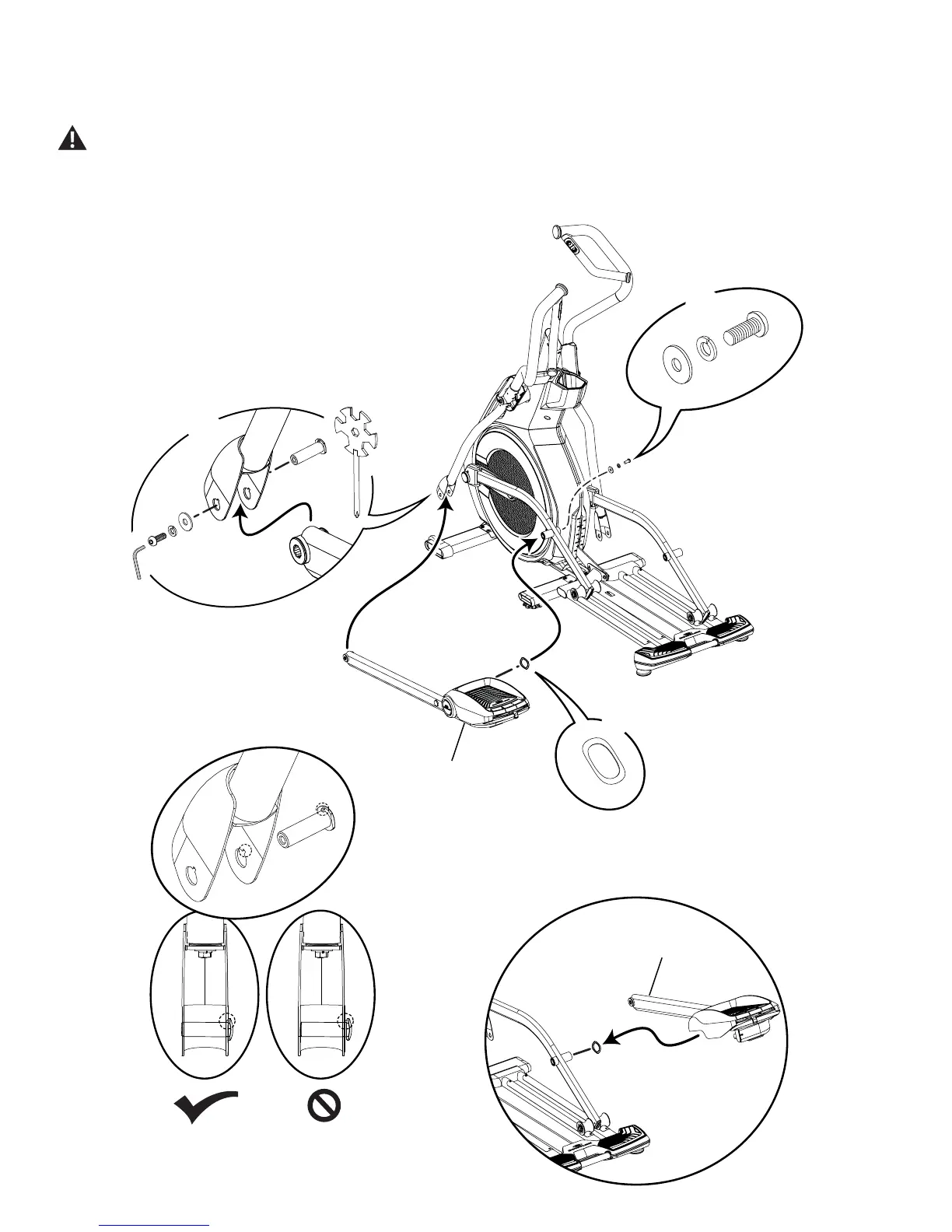

8. Attach Pedals to Frame Assembly
In order to avoid possible serious injury, when inserting the end of the Pedal into the Lower Handlebar Arm be careful to avoid
ÀQJHUVRUKDQGVEHLQJFDXJKWRUSLQFKHG%HVXUHWRVWD\RXWRIWKHSDWKRIWKH+DQGOHEDUV
Note:%HVXUHWKHNH\RQWKH3LYRW3LQLVIXOO\VHWLQWRWKHQRWFKRQWKH/RZHU+DQGOHEDU$UP6OLJKWO\URWDWHWKH3LYRW3LQWRDVVLVWZLWKD
proper set.
11
8
H
L
B
A
6mm
H
A
B
I
X2
X2
X2
L
