Assembly / Owner’s Manual
11

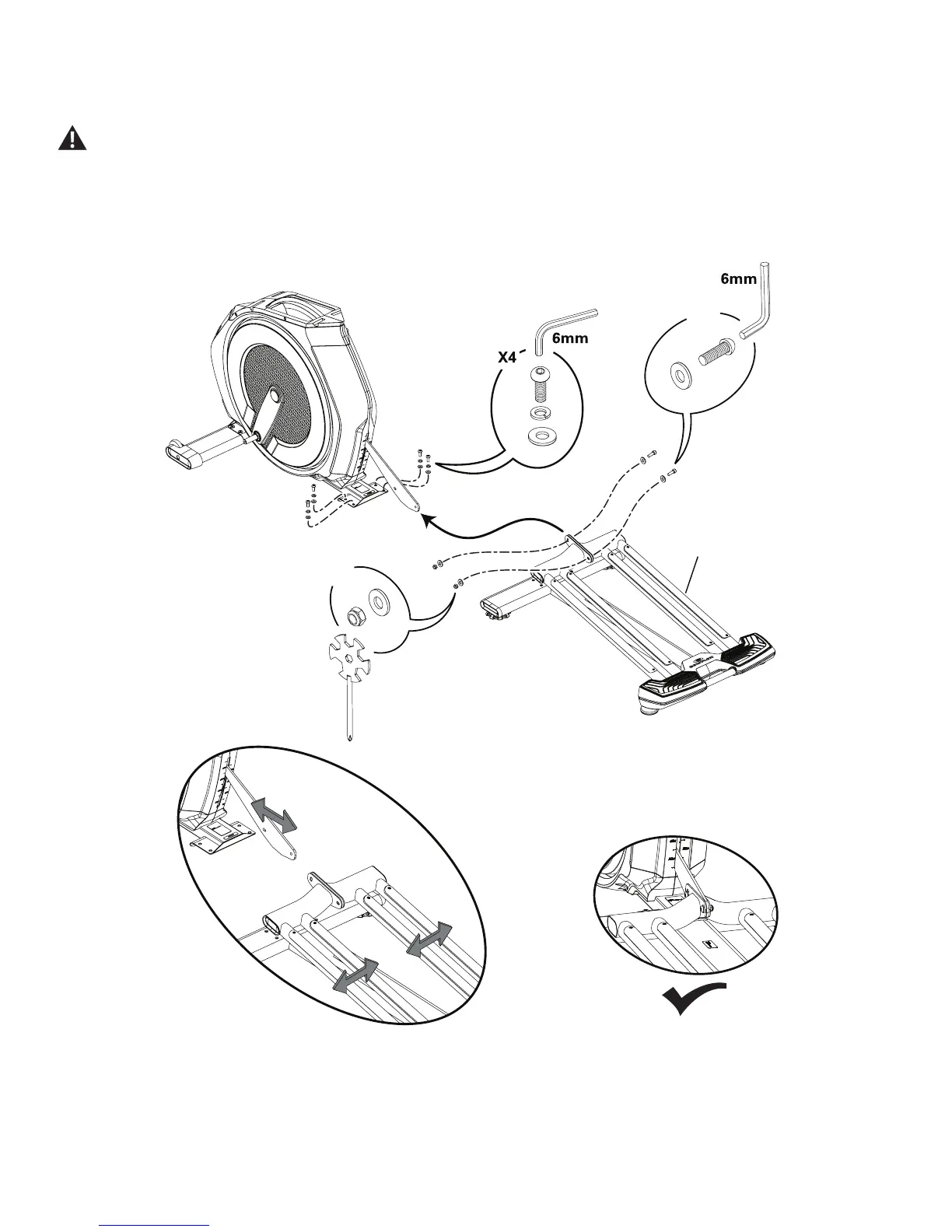

2. Attach Rail Assembly to Frame Assembly
In order to avoid possible serious injury, when attaching the Rail Assembly to the Frame Assembly be careful to avoid ngers or
hands being caught or pinched. Do not place ngers or hands below any pivoting parts of the Rail Assembly.
Note: Do not fully tighten until all hardware has been installed. Some parts can be slightly shifted to assist with alignment.
The plastic scratch guard strips on the Rails help to protect the nish during assembly.
X2
X2
B
C
A
D
C
E
C
6
