Assembly / Owner’s Manual
8
A right (“ R ”) and left (“ L ”) decal has been applied to some parts to assist with assembly.

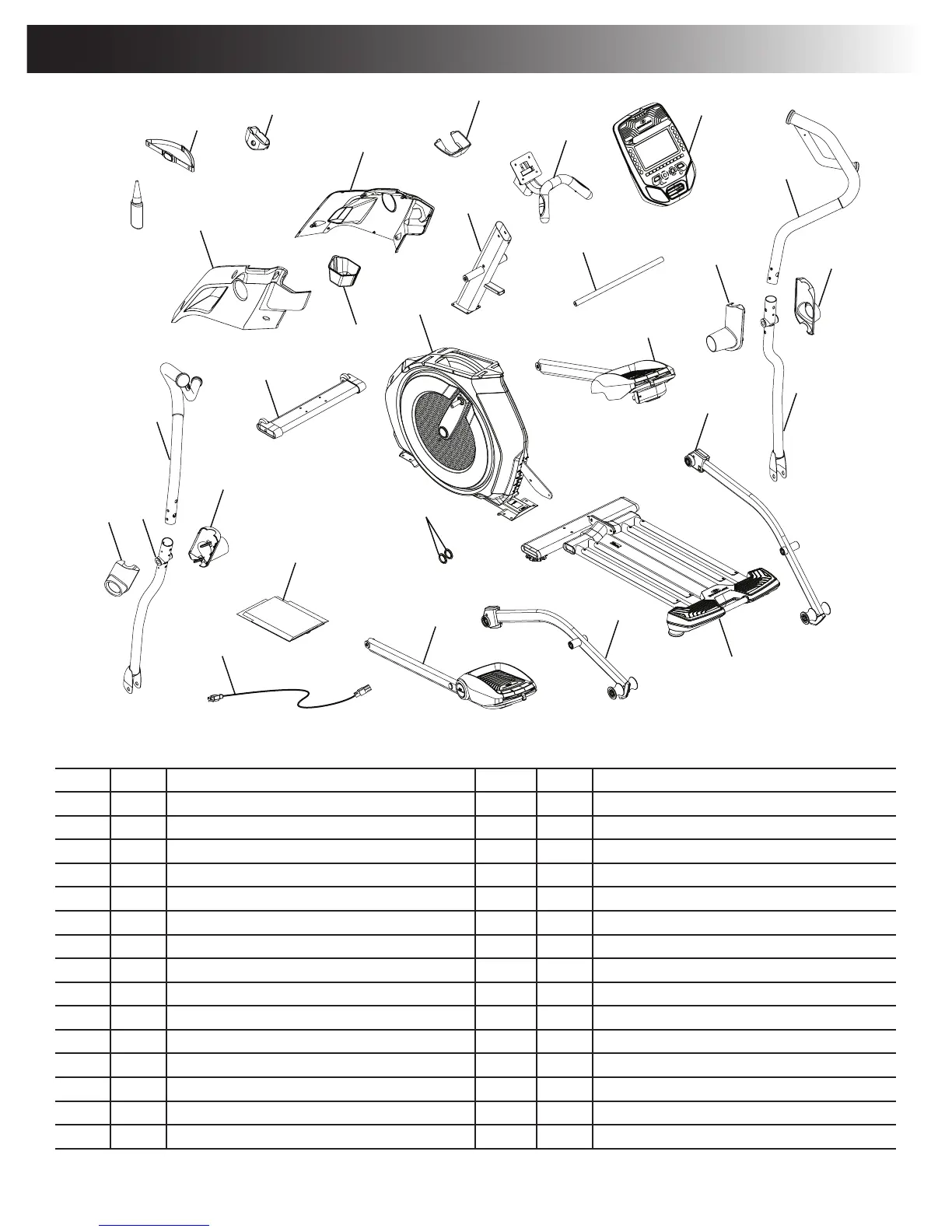

Item Qty Description Item Qty Description
1 1 Console Assembly 16 1 Frame Assembly
2 1 Upper Handlebar, Right 17 1 Document Kit
3 1 Pivot Cover, Right Exterior 18 1 Power Cord
4 1 Pivot Cover, Right Interior 19 1 Pivot Cover, Left Exterior
5 1 Lower Handlebar, Right 20 1 Lower Handlebar, Left
6 1 Rail Assembly 21 1 Pivot Cover, Left Interior
7 1 Leg, Left 22 1 Upper Handlebar, Left
8 1 Pedal, Left 23 1 Front Stabilizer
9 2 Cap 24 1 Tray
10 1 Leg, Right 25 1 Upper Shroud, Left
11 1 Pedal, Right 26 1 Upper Shroud, Right
12 1 Pivot Rod 27 1 Console Mast Collar
13 1 Static Handlebars 28 1 Chest Strap
14 1 Console Shroud 29 1 Silicone Lubricant, Bottle
15 1 Console Mast
Parts
17
13
14
26
12
2
4
3
10
6
5
7
8
21
16
23
9
18
20
19
25
22
24
1
11
15
27
28
29
